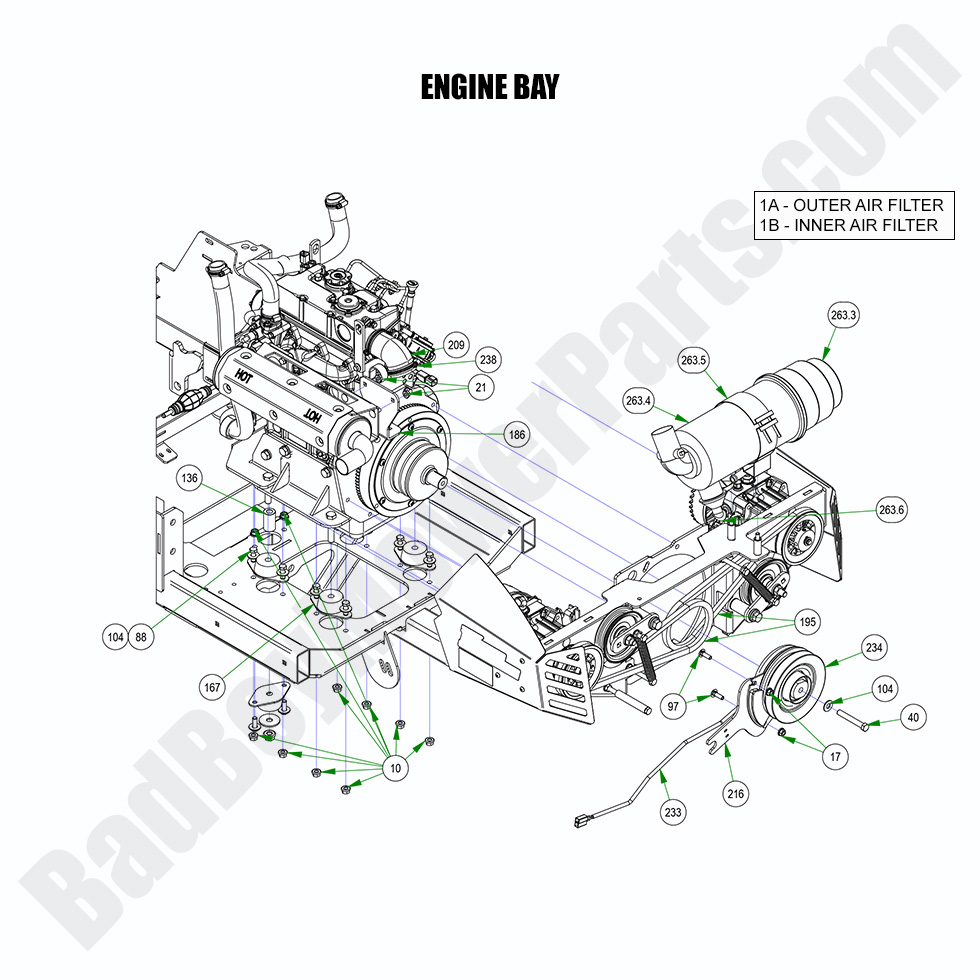

2022 Renegade - Diesel - Engine Bay

2022 Renegade - Diesel - Engine Bay

Maintaining the 2022 Renegade - Diesel Engine Bay is essential for ensuring that your mower operates smoothly and efficiently. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to fit perfectly within the engine bay. Our detailed Bad Boy Mower Part diagrams make it easy for you to find the specific parts you need for your engine. Whether you're replacing worn components or performing regular maintenance, we have all the Bad Boy Lawn Mower Parts to keep your 2022 Renegade - Diesel performing at its best. Shopping for Bad Boy Parts Online is fast and convenient, and our user-friendly website ensures you can find exactly what you're looking for. Enjoy Free Shipping On Orders Over $100, and have your parts delivered right to your door, helping you get your mower back in working order without any hassle.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Engine Bay
  Position Number SKU Product Title Price
1A 063-2050-00 063-2050-00 - Diesel Air Filter - Outer
$52.42
1B 063-2060-00 063-2060-00 - Diesel Air Filter - Inner
$42.58
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
40 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
88 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
104 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
136 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
167 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
186 039-1025-00 039-1025-00 - 2019 Diesel Muffler Bracket
$13.90
195 041-8001-00 041-8001-00 - Pump Belt (See Models Used On For Detail)
$80.24
209 051-3004-00 051-3004-00 - 2019 Diesel Air intake Hose
$14.97
216 057-5919-00 057-5919-00 - Renegade Clutch Bracket
$28.39
233 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
234 070-5040-00 070-5040-00 - Diesel/Vanguard PTO Clutch
$399.00
238 072-2002-00 072-2002-00 - 2-1/2 Hose Clamp
$11.34
263.3 088-1017-00 088-1017-00 - Enginaire Air Canister Cap
$75.96
263.4 088-1018-00 088-1018-00 - Canister for All Diesel Air
$85.17
263.5 088-1019-00 088-1019-00 - Mounting Bracket for Diesel Air Filter
$34.23
263.6 088-1020-00 088-1020-00 - Debris Plug-Enginaire Filter
$14.19
