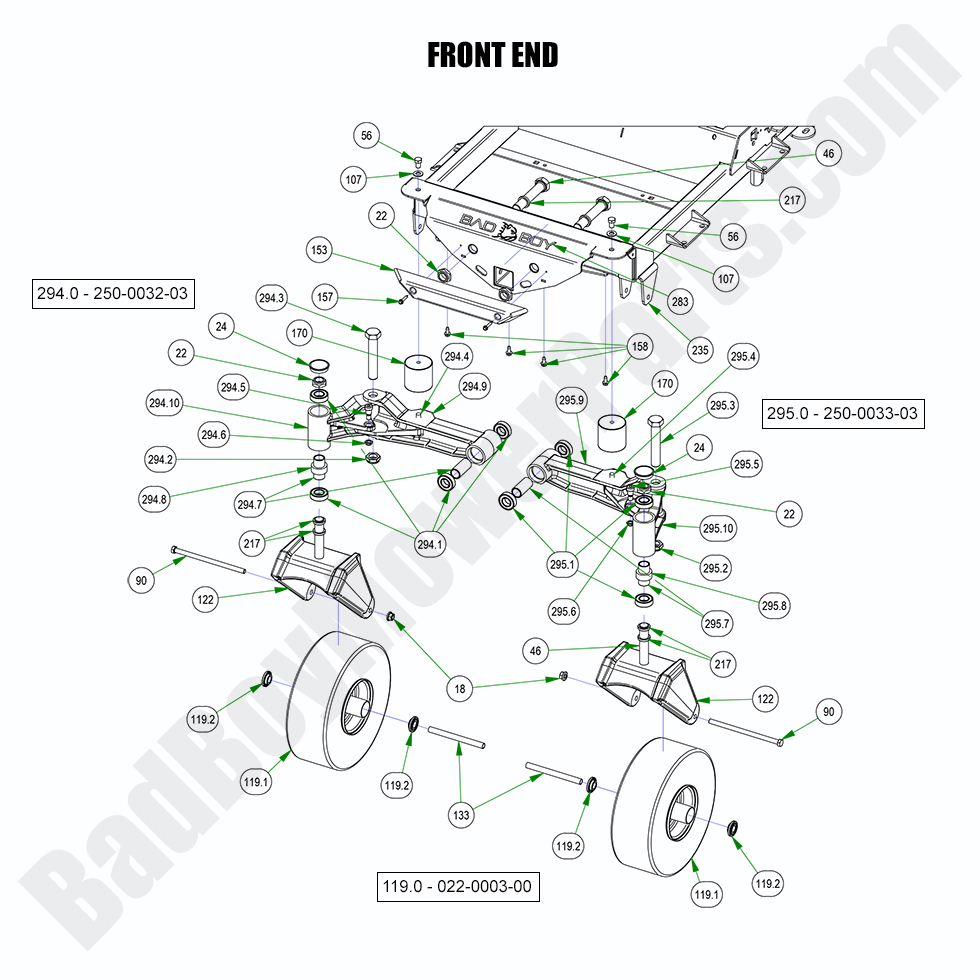

2022 Renegade - Diesel - Front End

2022 Renegade - Diesel - Front End

The 2022 Renegade - Diesel Front End is a vital part of the mower, and it’s crucial to keep it in great working condition. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts for everything from the front axle to steering components. Our extensive Bad Boy Mower Part diagrams guide you to the exact parts you need for repairs. Whether you're replacing parts for maintenance or upgrading components for improved performance, we have all the Bad Boy Lawn Mower Parts you need. By shopping for Bad Boy Parts Online, you can quickly and easily find everything for your 2022 Renegade - Diesel. We also offer Free Shipping On Orders Over $100, so you can maintain your mower’s front end without worrying about extra shipping costs. Get your parts today and keep your mower's front end working smoothly and efficiently for a long time to come.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Front End
  Position Number SKU Product Title Price
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
46 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
56 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
90 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
107 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
119.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
119.2 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
122 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
133 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
153 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
157 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
158 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
170 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
217 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
283 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
294.0 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
294.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
294.4 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
294.5 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
294.6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
294.7 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
294.8 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
294.9 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
294.10 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
295.0 250-0033-03 250-0033-03 - 2022 61/72 Rogue/Renegade Front Suspensi
$279.99
295.9 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
295.10 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
