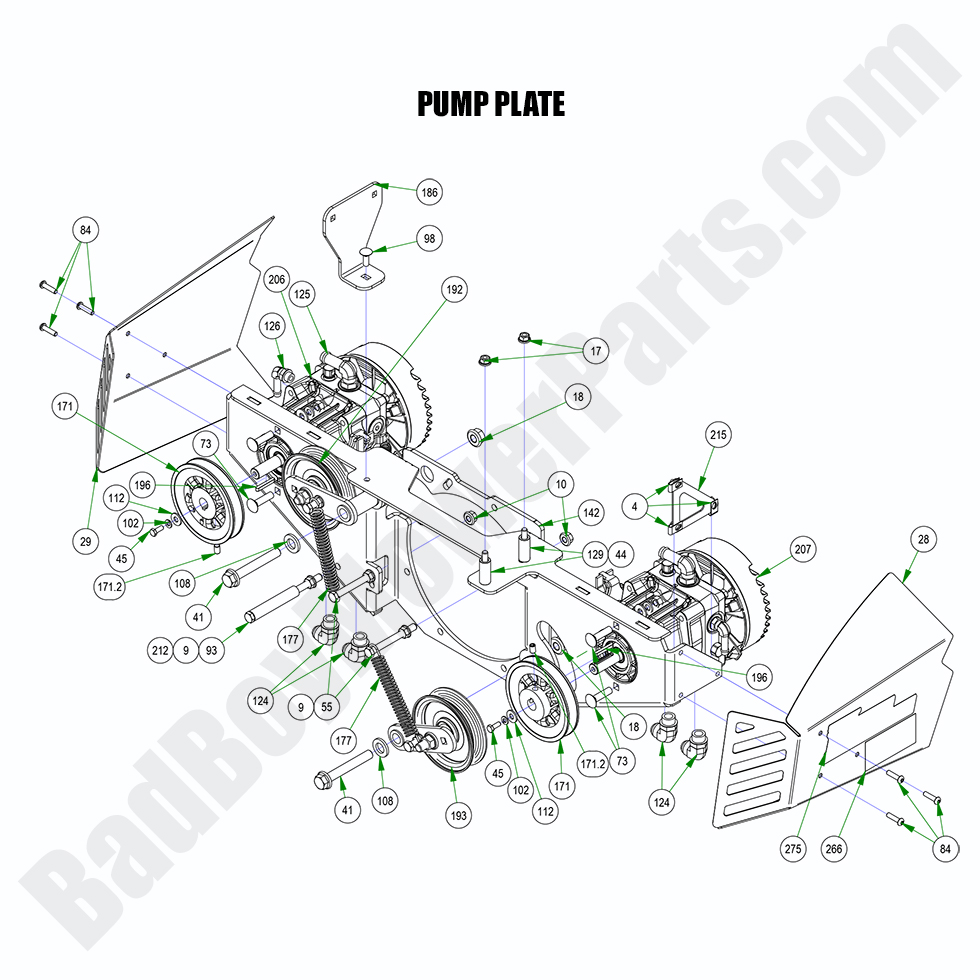

2022 Renegade - Diesel - Pump Plate

2022 Renegade - Diesel - Pump Plate

The 2022 Renegade - Diesel Pump Plate plays a vital role in your mower's hydraulic system, and it’s important to use the best replacement parts available. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts designed specifically for the 2022 Renegade - Diesel. Our Bad Boy Mower Part diagrams make it easy to locate and replace the pump plate, ensuring that your mower’s performance is not compromised. Whether you're looking for a full replacement or just a part of the pump system, we have all the Bad Boy Lawn Mower Parts you need. By shopping for Bad Boy Parts Online, you can get the exact part required for your 2022 Renegade - Diesel quickly and easily. Additionally, we offer Free Shipping On Orders Over $100, so you can maintain your mower at an affordable price without worrying about shipping costs. Visit our website to get the parts you need today.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Pump Plate
  Position Number SKU Product Title Price
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
28 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39
29 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
41 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
44 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
55 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
73 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
84 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
93 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
98 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
102 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
108 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
112 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
124 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
125 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
126 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
129 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
142 026-8050-00 026-8050-00 - 2020 Diesel Pump Plate Weldment
$90.94
171.2 030-0076-00 030-0076-00 - 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
$2.99
171 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
177 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
186 039-1025-00 039-1025-00 - 2019 Diesel Muffler Bracket
$13.90
192 039-6950-94 039-6950-94 - 2020 and newer Diesel Pump Tensioner Assembly LH
$85.17
193 039-6950-95 039-6950-95 - 2020 and newer Diesel Pump Tensioner Assembly RH
$85.17
196 042-5013-00 042-5013-00 - M5 X 36MM Square Machinery Key C1018 ROUNDED ENDS
$2.99
206 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
207 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
212 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
215 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
266 091-0017-00 091-0017-00 - PERKINS Decal
$13.90
275 091-4012-00 091-4012-00 - 2019 Renegade 1100cc Pump Cluster
$12.48
