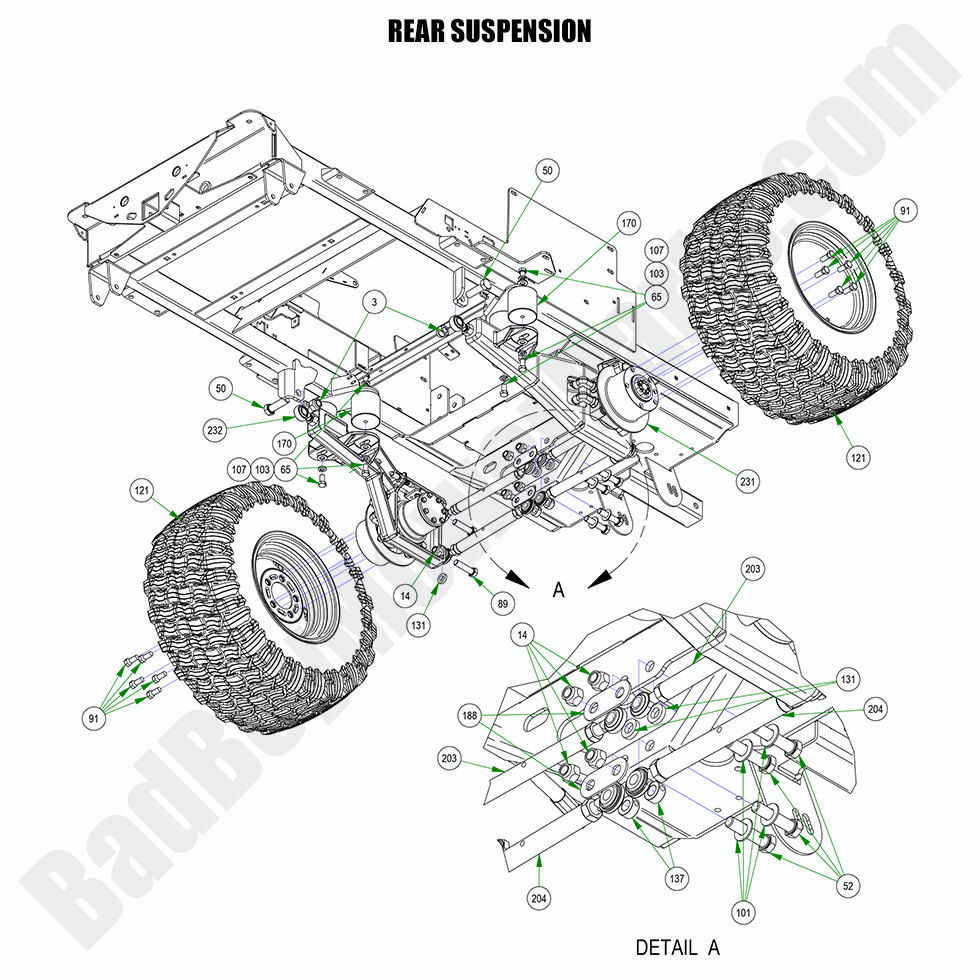

2022 Renegade - Diesel - Rear Suspension

2022 Renegade - Diesel - Rear Suspension

The 2022 Renegade - Diesel Rear Suspension ensures a smooth ride and stable operation of your mower. If you need to replace or upgrade the rear suspension, BadBoyMowerParts.com has a variety of Bad Boy Mower Parts to suit your needs. Our Bad Boy Mower Part diagrams make it easy to identify and order the exact parts required for your rear suspension. Whether you're looking for a complete suspension system or individual components, we carry all the Bad Boy Lawn Mower Parts that are essential for maintaining your 2022 Renegade - Diesel. Shopping for Bad Boy Parts Online ensures a hassle-free experience, and our quick and easy checkout process makes replacing your suspension parts simpler than ever. Plus, we offer Free Shipping On Orders Over $100, so you can repair your mower without worrying about extra costs. Visit us for all your suspension and parts needs.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Rear Suspension
  Position Number SKU Product Title Price
3 013-0023-00 013-0023-00 - 3/4" Course Thread Nylon Lock Nut
$7.36
14 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
50 018-0045-00 018-0045-00 - 3/4 x 2 1/2 Course Thread Bolt
$2.99
52 018-0049-00 018-0049-00 - 5/8-11 x 2 3/4 Hex Head Bolt
$4.39
65 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
89 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
91 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
101 019-0009-00 019-0009-00 - 5/8" Flat Washer SAE Spec Grade 8
$2.99
103 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
107 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
121 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
131 025-0071-00 025-0071-00 - Spacer 1.125 OD X .625 ID X .250 Length
$14.19
137 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
170 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
188 039-2145-00 039-2145-00 - Suspension Gusset (See Models Used On For Details)
$14.19
203 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
204 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
