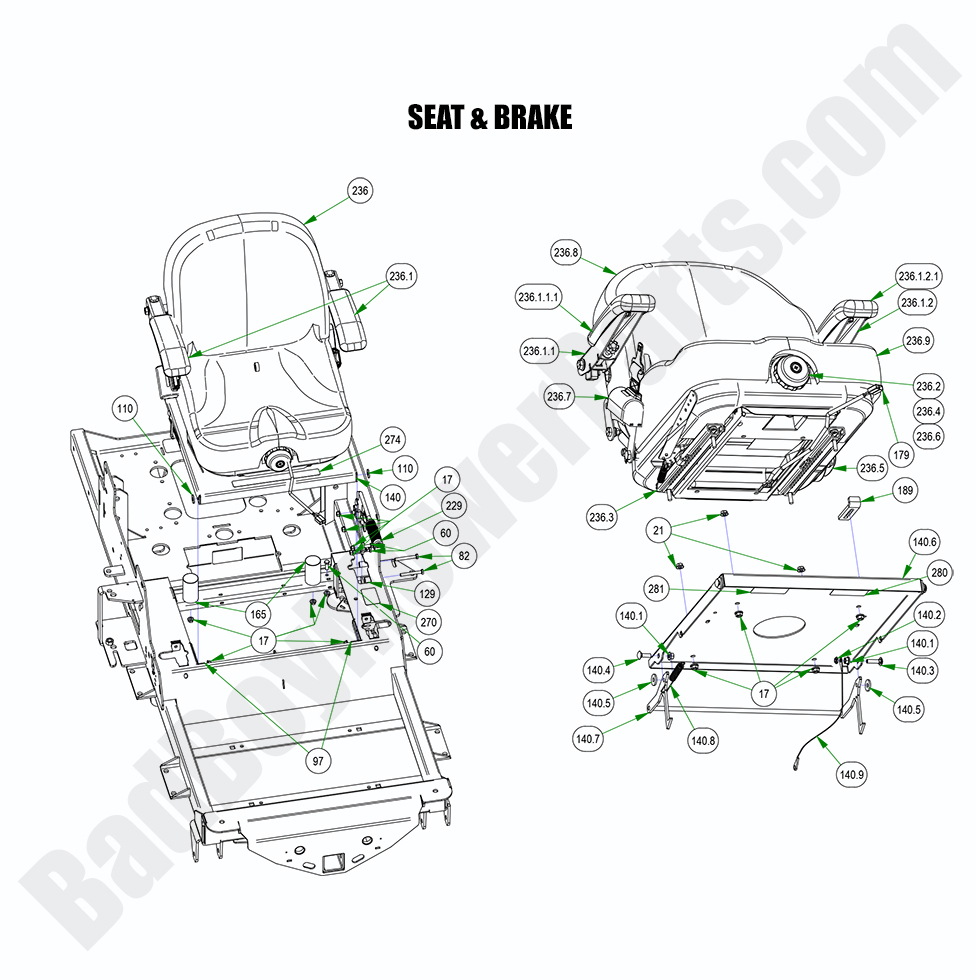

2022 Renegade - Diesel - Seat & Brake

2022 Renegade - Diesel - Seat & Brake

The 2022 Renegade - Diesel Seat & Brake components are essential for comfort and safety while operating your mower. At BadBoyMowerParts.com, we provide an extensive range of Bad Boy Mower Parts, ensuring you can find the right seat and brake parts for your specific needs. Our Bad Boy Mower Part diagrams make it easy to locate all necessary components, from the seat frame to brake pads and cables. Whether you need to replace a worn-out seat or repair the braking system, we have all the Bad Boy Lawn Mower Parts required for the 2022 Renegade - Diesel. Shopping for Bad Boy Parts Online makes it simple to browse and order the parts you need. Plus, enjoy Free Shipping On Orders Over $100, so you can get your seat and brake components at a great price. Visit us to keep your mower safe and comfortable.

Bad Boy Mower Parts Lookup

2022 Renegade - Diesel - Seat & Brake
  Position Number SKU Product Title Price
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
60 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
82 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
97 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
110 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
129 025-0027-00 025-0027-00 - Brake Handle Spacer.625 x 1.5 2019-2022 Rebel, Renegade & Rogue
$7.25
140.2 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
140.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
140.6 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
140.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
140.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
140.9 064-8081-00 064-8081-00 - Seat Cable
$15.60
140 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
165 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
179 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
189 039-2156-00 039-2156-00 - Seat stop
$14.19
229 069-0001-00 069-0001-00 - Brake Handle Assembly (See Models Used On For Details)
$132.68
236.1.1.1 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
236.1.1 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
236.1.2 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
236.1 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
236.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
236.3 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
236.4 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
236.5 071-6065-00 071-6065-00 - 2021 Seats Inc Suspension Seat with seatbelt
$829.99
236.6 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
236.7 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
236.8 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
236.9 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
236 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details)
$829.99
270 091-1101-18 091-1101-18 - Brake Decal (See Models Used On for Details)
$6.04
274 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
280 091-4038-00 091-4038-00 - Control Adj. Control Rod Decal
$6.04
281 091-4039-00 091-4039-00 - Control Adj. Control Dampener Decal
$6.04
