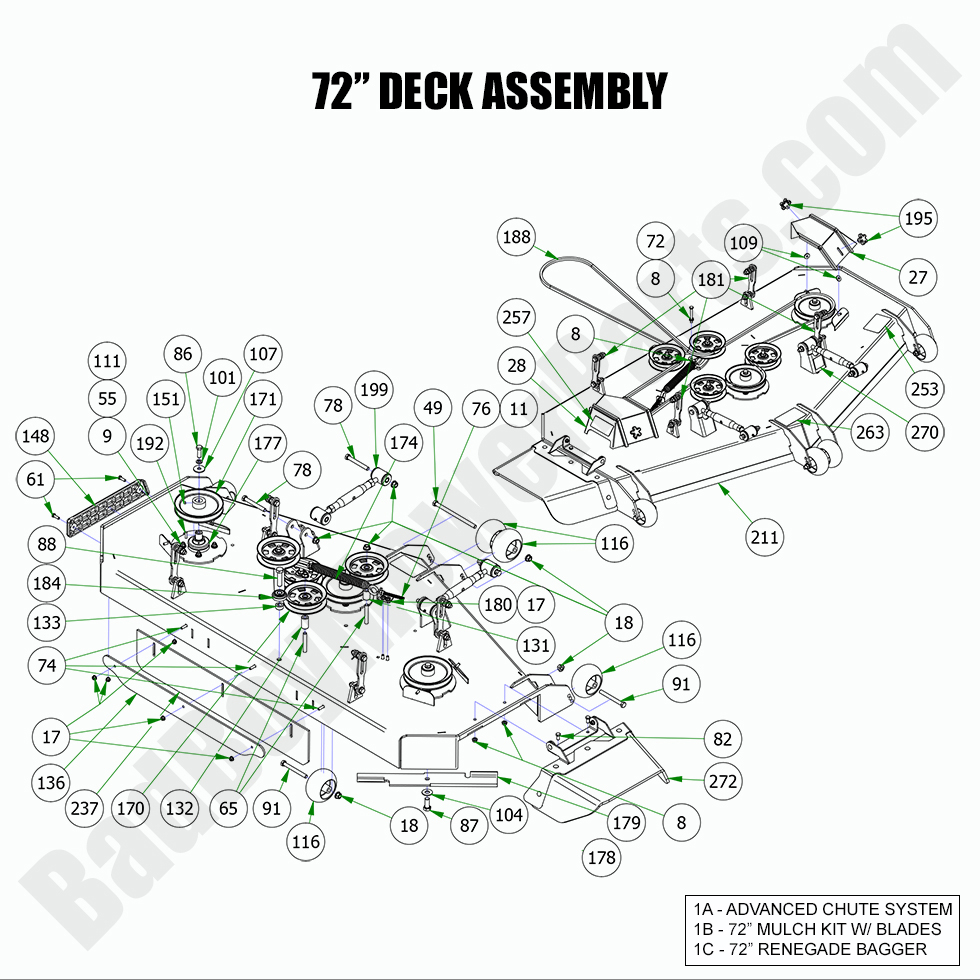

2022 Renegade - Gas - 72" Deck Assembly

2022 Renegade - Gas - 72" Deck Assembly

If you're maintaining or repairing the 2022 Renegade - Gas 72" Deck Assembly, Bad Boy Mower Parts has all the parts you need for a smooth-running mower. From deck blades to spindles, we provide the best selection of Bad Boy Mower Parts that fit perfectly with your 72" deck. Our Bad Boy Mower Part diagrams help you find the exact components you need, and with Bad Boy Parts Online, shopping for your mower has never been more convenient. Whether it's a simple deck repair or a full replacement, we offer Free Shipping On Orders Over $100 to make your purchase even more affordable. Visit BadBoyMowerParts.com to find the 2022 Renegade - Gas 72" Deck Assembly parts you need for top-notch lawn care.

Bad Boy Mower Parts Lookup

2022 Renegade - Gas - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
27 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
28 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
49 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
55 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
61 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
65 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
72 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
74 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
76 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
78 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
82 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
86 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
87 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
88 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
91 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
101 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
104 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
109 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
111 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
116 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
131 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
132 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
133 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
136 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
148 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
151 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
170 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
171 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
174 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
177 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
178 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
179 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
180 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
181 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
184 039-6946-17 039-6946-17 - 2019-2025 Renegade Deck Idler Assembly
$78.08
188 041-2375-00 041-2375-00 - B237.50 Deck Belt for 60" AOS Diesel & 72" AOS Gas Models (NOT FOR 72" DIESEL)
$131.30
192 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
195 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
199 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
211 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
237 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
253 091-0918-18 091-0918-18 - 2018-2022 72" Deck Decal
$6.41
257 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
263 091-4033-00 091-4033-00 - 2019-2022 Renegade Deck Belt Route Decal
$9.61
270 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
272 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
