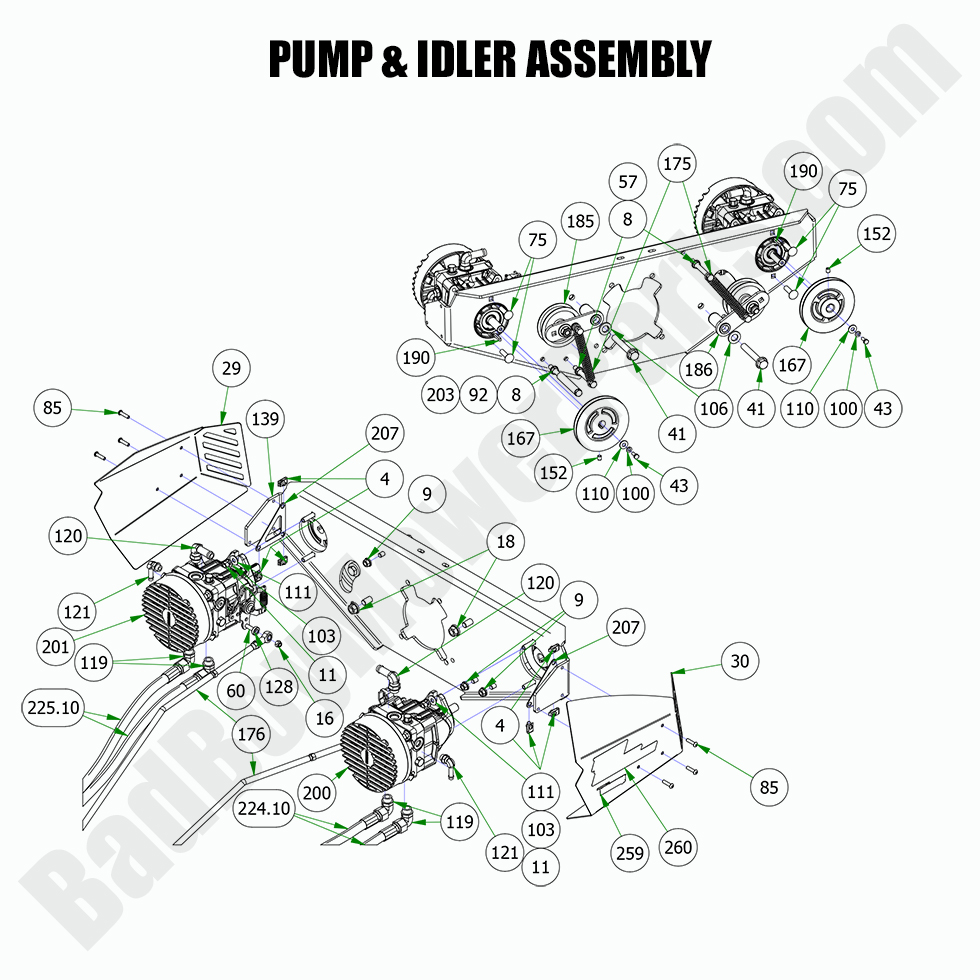

2022 Renegade - Gas - Pump & Idler Assembly

2022 Renegade - Gas - Pump & Idler Assembly

The 2022 Renegade - Gas Pump & Idler Assembly are vital to your mower's fuel and drive system, and Bad Boy Mower Parts provides the replacement components you need for effective repairs. We offer a broad selection of Bad Boy Lawn Mower Parts for your pump and idler, ensuring that your mower runs smoothly. Our Bad Boy Mower Part diagrams help you easily identify the correct parts, simplifying the replacement process. Ordering Bad Boy Parts Online gives you the convenience of shopping at your own pace, and with Free Shipping On Orders Over $100, you’ll enjoy even more savings on your purchase. Visit BadBoyMowerParts.com to find the 2022 Renegade - Gas Pump & Idler Assembly parts you need.

Bad Boy Mower Parts Lookup

2022 Renegade - Gas - Pump & Idler Assembly
  Position Number SKU Product Title Price
4 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
16 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
29 014-5060-22 014-5060-22 Pump Cover-RH-Black
$21.39
30 014-5061-22 014-5061-22 Pump Cover-LH-Black (See Models Used On For Details)
$32.09
41 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
43 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
57 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
60 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
75 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
85 018-6014-00 018-6014-00 - 1/4-20 x 1" BS C/S 18-8 SS
$5.82
92 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
100 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
103 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
110 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
111 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
119 024-2052-00 024-2052-00 - 2019-2022 Renegade Horizontal Pump Fitting 90 Degree # 6801-10-8
$12.48
120 024-5002-00 024-5002-00 - 90 Degree Fitting, 1/2 x 3/4, 986741
$17.63
121 024-5206-00 024-5206-00 - 90 Degree Fitting, 3/8 x 9/16, 4601-6-6
$12.42
128 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
139 026-8010-00 026-8010-00 - Pump Plate Horizontal Gas
$106.99
152 030-0075-00 030-0075-00 - 5/16-24 X 3/8 Set Screw
$2.99
167 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
175 034-9000-00 034-9000-00 - SPRING (See Models Used On For Details)
$15.55
176 035-0005-00 035-0005-00 - Push Rod Assembly 2019-2025 Renegade
$46.84
185 039-6950-98 039-6950-98 - 2020-2025 Renegade Gas Belt Tensioner LH
$85.17
186 039-6950-99 039-6950-99 - 2020-2022 Renegade Gas Belt Tensioner RH
$85.17
190 042-5012-00 042-5012-00 - 5MM X 1.25 Square Key (obsolete)
use part #042-5013-00
$2.99
200 050-3001-00 050-3001-00 - Rogue/Renegade Left Pump 16cc Hydro-Gear# PR-2KCC-GB1C-XXXX (See Models Used On For Details)
$699.99
201 050-3003-00 050-3003-00 - 2019-2024 Renegade Right Pump 16cc Hydro-Gear # PR-2HCC-GA1C-XXXX
$649.99
203 051-8076-00 051-8076-00 - 3/8 Fuel Line-Priced per Foot
$6.59
207 057-5915-00 057-5915-00 - Pump Plate Clip Nut Holder
$17.11
224.10 051-6007-00 051-6007-00 - 2019-& Up Renegade Hydro Hose
$54.64
259 091-4002-22 091-4002-22 - 2022 Powered By Vangaurd Decal
$6.04
