2022 Renegade - Gas - Seat - Detail

2022 Renegade - Gas - Seat - Detail

For those seeking to replace or upgrade their 2022 Renegade - Gas Seat - Detail, Bad Boy Mower Parts provides a variety of options. We offer a wide selection of seat components and accessories, all designed to ensure maximum comfort and support during use. Our Bad Boy Lawn Mower Parts are carefully chosen to guarantee durability and reliability. Use our Bad Boy Mower Part diagrams to easily identify the seat components you need. Shopping is simple with Bad Boy Parts Online, and with Free Shipping On Orders Over $100, you’ll get the best value. Visit BadBoyMowerParts.com for all your 2022 Renegade - Gas Seat - Detail parts.

Bad Boy Mower Parts Lookup

2022 Renegade - Gas - Seat - Detail
  Position Number SKU Product Title Price
137.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
137.2 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
137.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
137.4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
137.5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

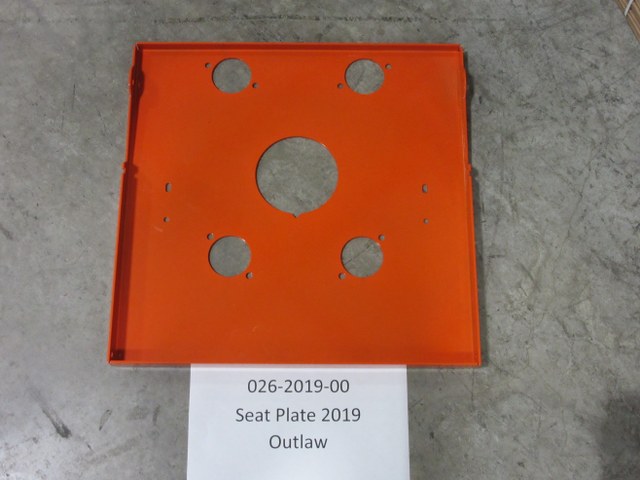

137.6 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
137.7 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
137.8 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
137.9 064-8081-00 064-8081-00 - Seat Cable
$15.60

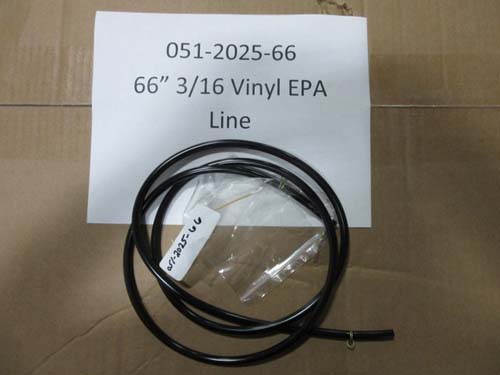

215.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26

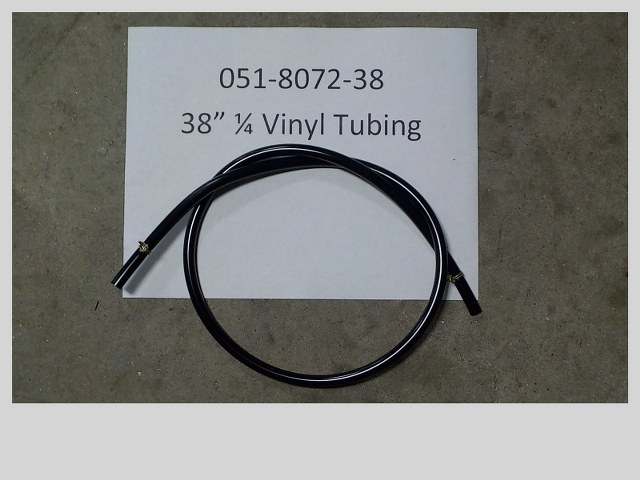

215.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
215.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
215.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
215.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
215.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70

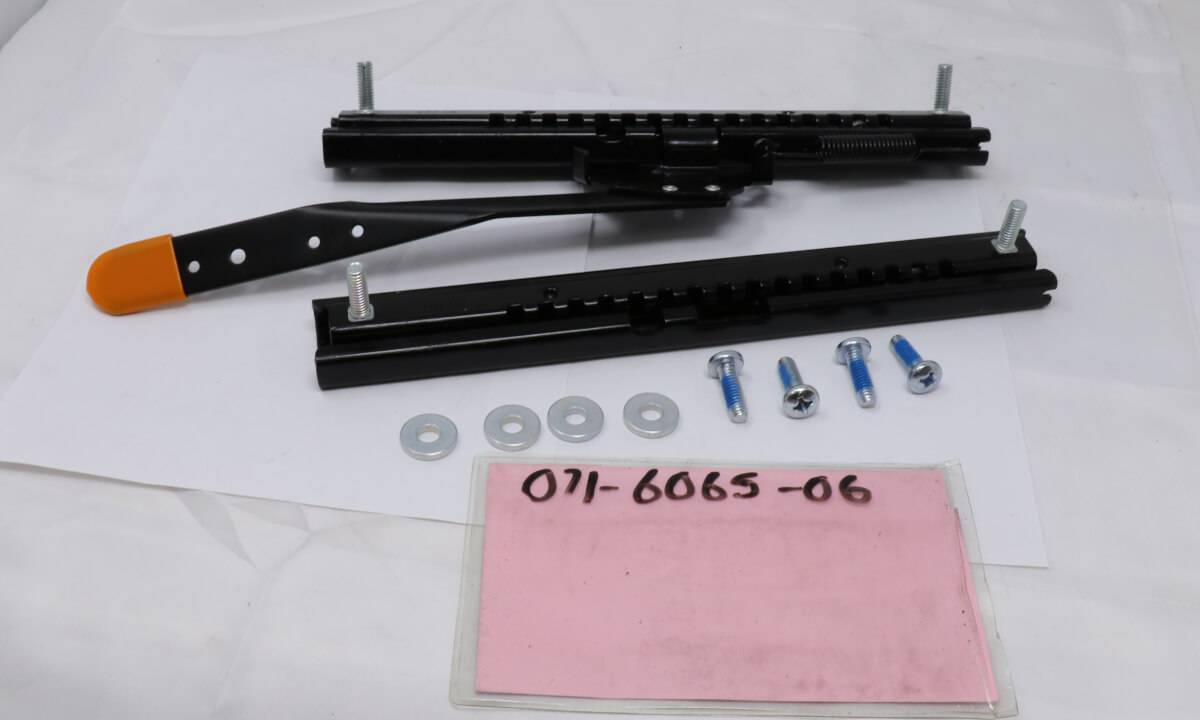

276.1 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
276.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
276.3 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
276.4 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
276.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
276.6 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
276.8 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
276.9.1.1 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
276.9.1 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
276.9.2 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
276.9 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
276 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
