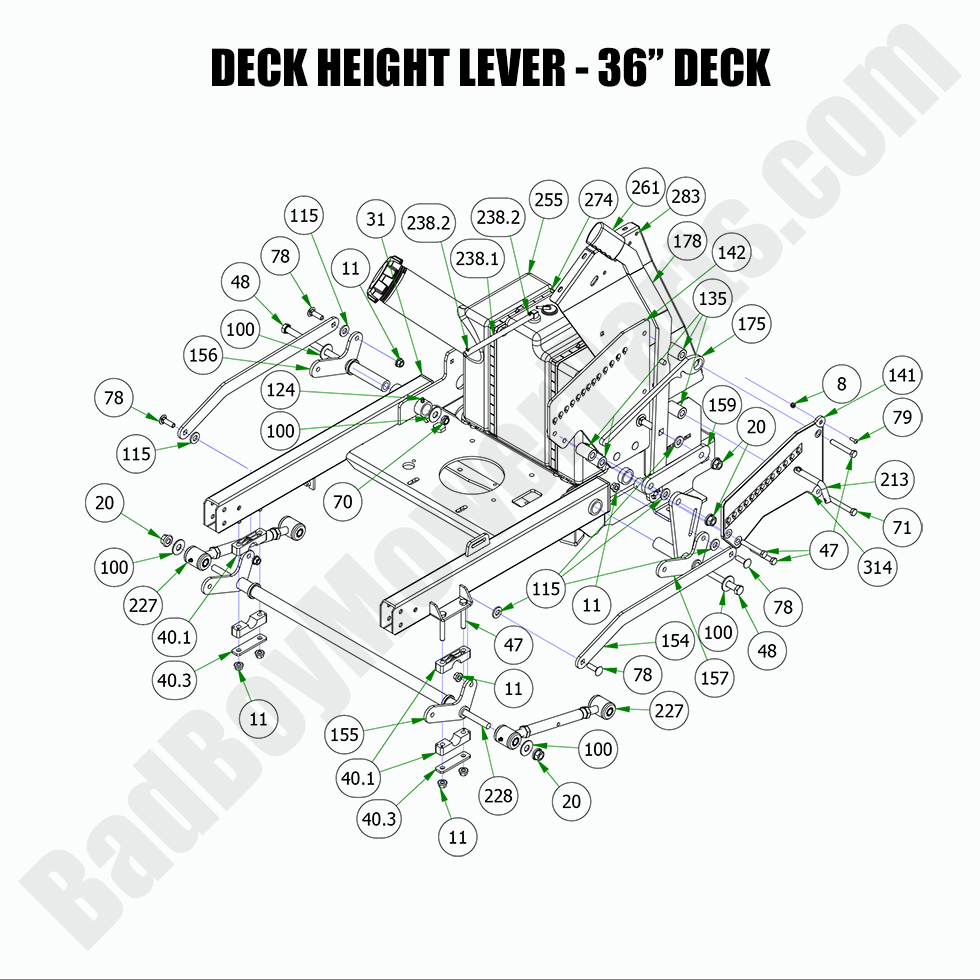

2022 Revolt - Deck Height Lever - 36" Deck

2022 Revolt - Deck Height Lever - 36" Deck

The 2022 Revolt Deck Height Lever - 36" Deck is essential for adjusting the cutting height of your mower, and BadBoyMowerParts.com is your go-to source for this specific part. If your Bad Boy Mower Parts need a replacement or repair, we offer a wide selection of durable and high-quality components. Our Bad Boy Lawn Mower Parts ensure smooth operation, so your mower performs like new. Detailed Bad Boy Mower Part diagrams are available to guide you through the process of selecting and replacing the right parts for your mower. Shopping Bad Boy Parts Online makes the entire process more convenient, with quick access to everything you need. Don’t forget about our Free Shipping On Orders Over $100, making it easier to get the parts you need for your 2022 Revolt without paying extra shipping fees.

Bad Boy Mower Parts Lookup

2022 Revolt - Deck Height Lever - 36" Deck
  Position Number SKU Product Title Price
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
31 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
40.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
40.3 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
47 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
48 018-0038-00 018-0038-00 - 1/2-13 x 7" Carriage Bolt
$2.99
70 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
71 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
78 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
79 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
100 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
115 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
124 024-3050-00 024-3050-00 - 1/4" Drive-in Grease Fitting (See Models Used On For Details)
$2.99
135 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
141 026-0082-00 026-0082-00 - Outer Adjustment Plate
$32.09
154 028-0033-00 028-0033-00 - Actuator Linkage 2019-2022 Revolt
$10.21
155 028-0036-00 028-0036-00 Revolt Front Actuator Bar Weldment
$74.89
157 028-0038-00 028-0038-00 - Revolt Rear Actuator Bar Weldment-LH No Longer Available
Obsolete.
159 028-5001-00 028-5001-00 - Lever Secondary Linkage-Black
$12.83
175 031-0093-00 031-0093-00 - 2019-2022 Stand On Deck Lever Lock
$24.12
178 031-7148-00 031-7148-00 - 2020-2022 36" Revolt Deck Lift Lever
$74.85
213 040-4001-00 040-4001-00 - Pin and Lanyard 1/2 x 2 (See Models Used On For Details)
$14.19
227 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
228 048-6058-00 048-6058-00 - 2020-2022 36" Revolt Turnbuckle Rod
$42.79
238.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
238.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
255 067-0030-00 067-0030-00 - 2015-2017 Stand-On & 2019-2022 Revolt Fuel Tank
$261.99
261 069-4012-00 069-4012-00 - Revolt Lift Grip (See Models Used On For Details)
$14.19
274 072-0051-00 072-0051-00 - Tank Strap 13.5" (See Models Used On For Details)
$11.34
283 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
314 091-4020-22 091-4020-22 - 2022 Revolt Deck Height Decal No Longer Available
Obsolete.
