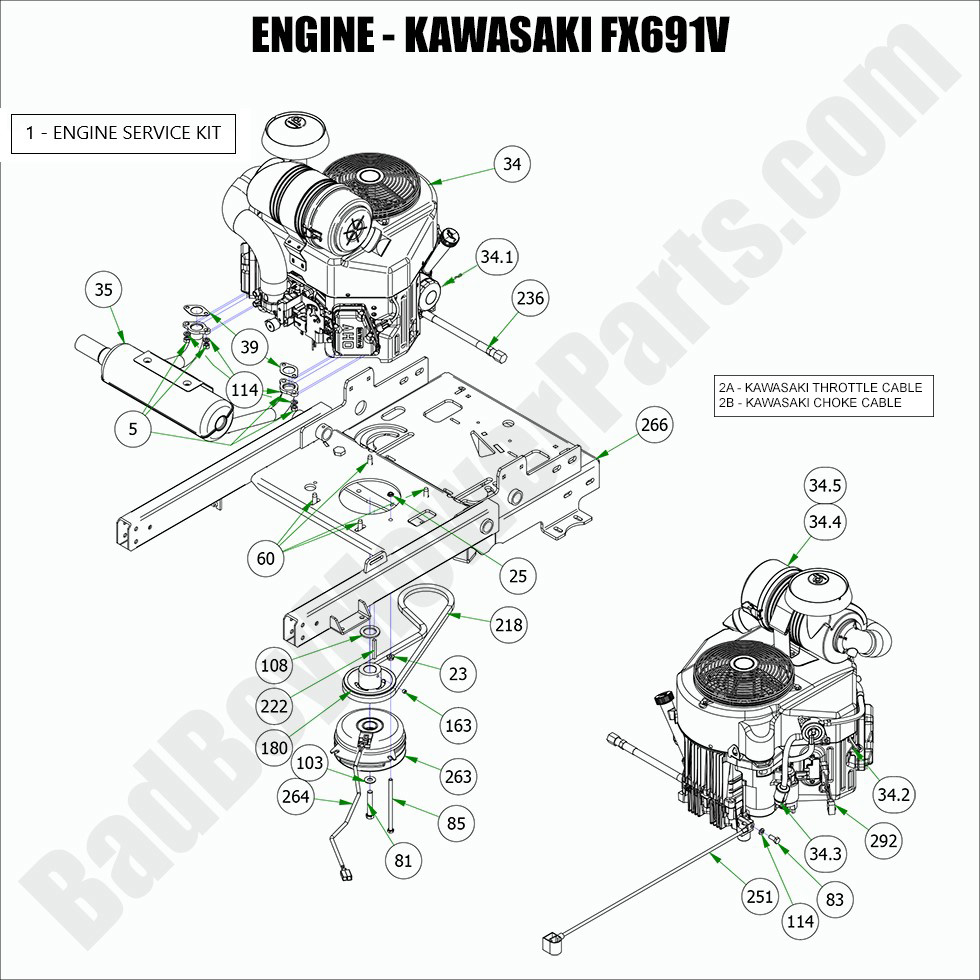

2022 Revolt - Engine - Kawasaki FX691V

2022 Revolt - Engine - Kawasaki FX691V

The 2022 Revolt Engine - Kawasaki FX691V is a powerful engine that requires the right maintenance and parts to keep it running smoothly. BadBoyMowerParts.com is proud to offer a wide selection of Bad Boy Mower Parts for this specific engine model. Whether you need filters, belts, or spark plugs, our Bad Boy Lawn Mower Parts are designed to ensure top-notch performance. We also provide Bad Boy Mower Part diagrams to help you easily locate the parts you need for the Kawasaki FX691V engine. With the ability to shop Bad Boy Parts Online, you can easily browse and order the necessary parts from the comfort of your home. Additionally, we offer Free Shipping On Orders Over $100, so you can get your engine parts delivered to your door without the added shipping fees. Keep your engine performing at its best with our reliable parts.

Bad Boy Mower Parts Lookup

2022 Revolt - Engine - Kawasaki FX691V
  Position Number SKU Product Title Price
1 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
34.0 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
34.1 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
34.2 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
34.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
34.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
34.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
35 015-0692-00 015-0692-00 - Exhaust-Stand On-FX691V Kawasaki
$145.95
39 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
60 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
81 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
83 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
85 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
108 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
163 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
180 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
218 041-8000-00 041-8000-00 - Pump Belt (See Models Used On For Detail)
$80.24
222 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
236 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
251 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
263 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
264 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
266 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
292 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
