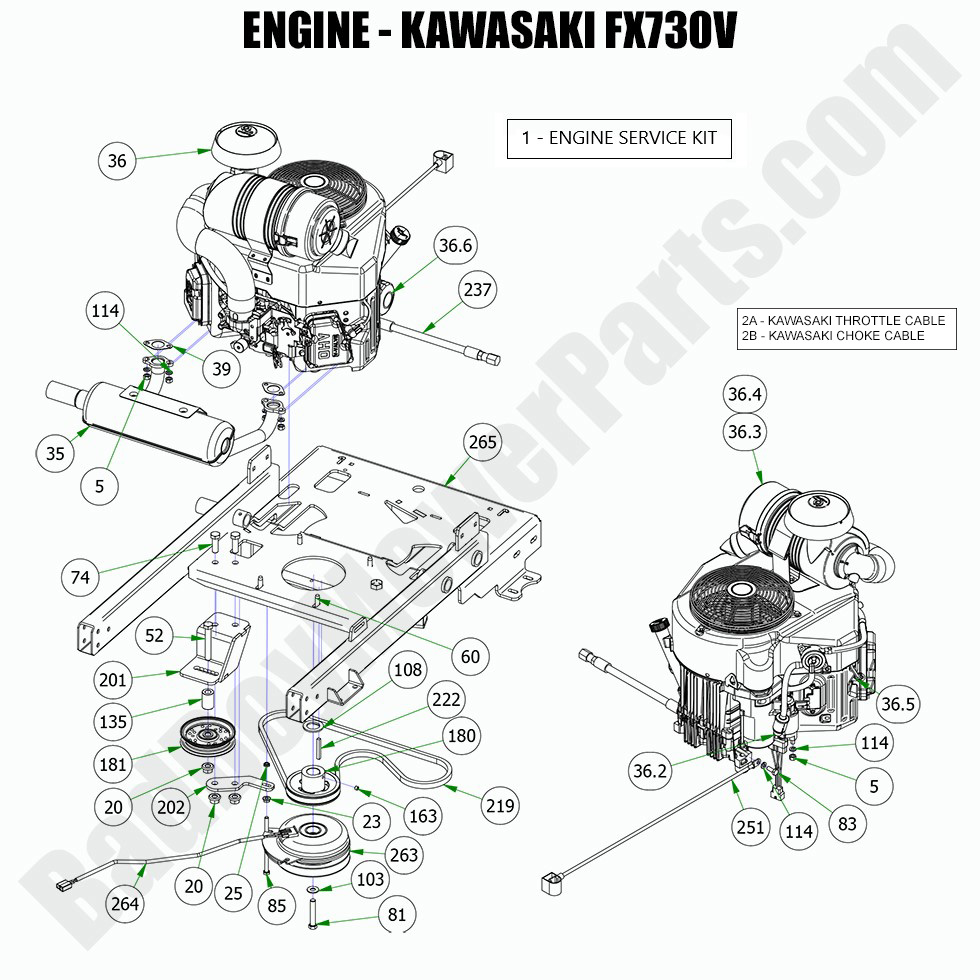

2022 Revolt - Engine - Kawasaki FX730V

2022 Revolt - Engine - Kawasaki FX730V

The 2022 Revolt Engine - Kawasaki FX730V is a powerhouse that demands high-quality parts to maintain its performance. At BadBoyMowerParts.com, we stock an extensive collection of Bad Boy Mower Parts specifically designed for this engine model. From air filters to fuel lines, we have all the Bad Boy Lawn Mower Parts needed for your engine’s upkeep. Our Bad Boy Mower Part diagrams are an excellent tool to help you find exactly what you need for the Kawasaki FX730V engine. Shopping Bad Boy Parts Online provides a quick and easy way to get the parts you need, without the hassle of visiting a physical store. Plus, enjoy Free Shipping On Orders Over $100 so you can save on delivery fees while getting top-quality engine parts. Keep your 2022 Revolt running strong with the best parts available from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Engine - Kawasaki FX730V
  Position Number SKU Product Title Price
1A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
1 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
35 015-0692-00 015-0692-00 - Exhaust-Stand On-FX691V Kawasaki
$145.95
36.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
36.3 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
36.4 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
36.5 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
36.6 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
36 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
39 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
52 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
60 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
74 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
81 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
83 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
85 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
108 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
135 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
163 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
180 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
181 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
201 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
202 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
219 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
222 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
237 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
251 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
263 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
264 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
265 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
