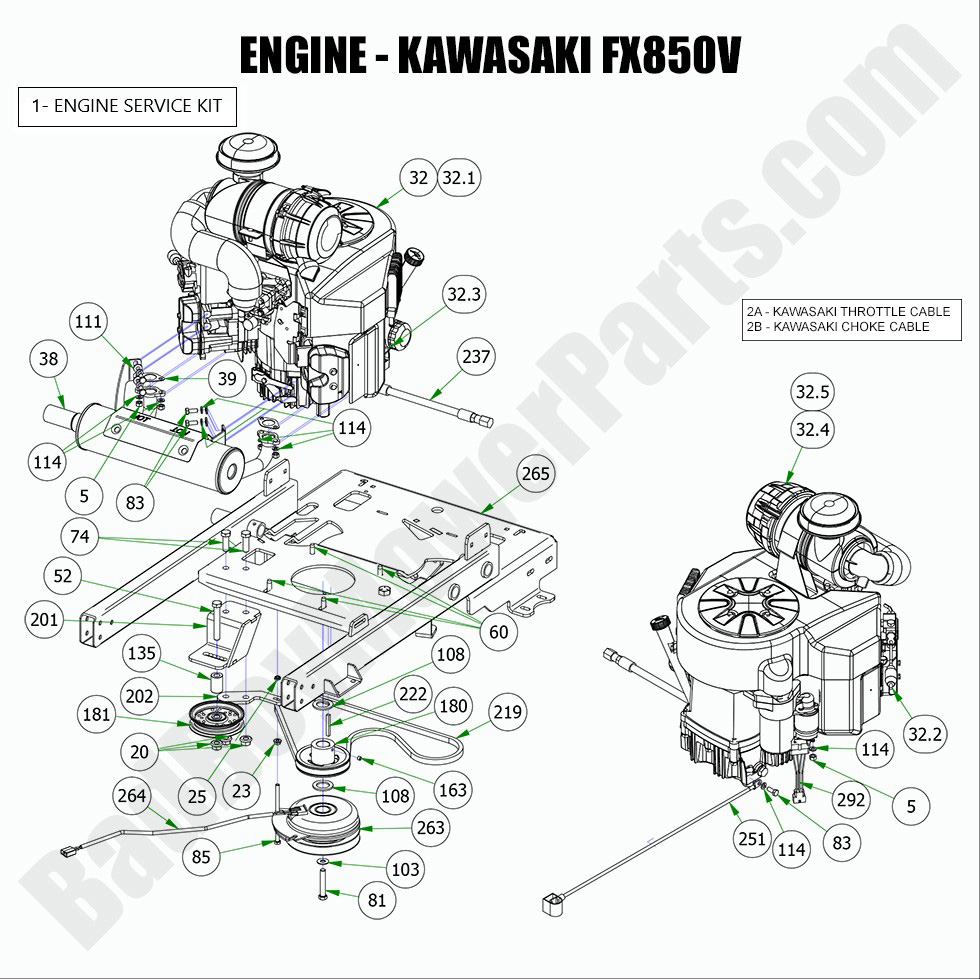

2022 Revolt - Engine - Kawasaki FX850V

2022 Revolt - Engine - Kawasaki FX850V

The 2022 Revolt Engine - Kawasaki FX850V offers superior performance and reliability, making it a top choice for your Bad Boy Mower Parts needs. Whether you're replacing worn components or performing routine maintenance, BadBoyMowerParts.com provides high-quality Bad Boy Lawn Mower Parts designed to keep your engine running smoothly. From oil filters to air filters, we offer a variety of parts for the Kawasaki FX850V engine. Our detailed Bad Boy Mower Part diagrams help you easily identify and select the right parts for your mower. Shopping Bad Boy Parts Online makes the entire process more convenient and efficient, allowing you to quickly order what you need. Plus, with Free Shipping On Orders Over $100, you can save on shipping costs while receiving the best parts for your 2022 Revolt. Trust BadBoyMowerParts.com for all your engine maintenance and repair needs.

Bad Boy Mower Parts Lookup

2022 Revolt - Engine - Kawasaki FX850V
  Position Number SKU Product Title Price
1 063-2000-02 063-2000-02 - Kawasaki FX850 Engine Service Kit
$124.74
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
32.1 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
32.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
32.3 063-8017-00 063-8017-00 - Oil Filter for Kawasaki Fits FX850 and FX1000 and Liquid Cooled /31 KAW
$28.88
32.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
32.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
32 015-0031-00 015-0031-00 - Kaw Engine FX-850V-AS15R
$3395.00
38 015-1022-00 015-1022-00 - Revolt Kawasaki FX850 Exhaust
$163.90
39 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
52 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
60 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
74 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
81 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
83 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
85 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
108 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
111 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
135 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
163 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
180 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
181 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
201 039-0089-00 039-0089-00 - Idler Pulley Bracket Weldment 2019-2022 Revolt
$28.39
202 039-0119-00 039-0119-00 - Clutch Stop Bracket 2019-2022 Revolt
$10.21
219 041-8052-00 041-8052-00 - 2019-2025 Revolt Drive Belt, 48", 54", 61" Decks Only
$80.24
222 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
237 051-5407-00 051-5407-00 - 12" Kawasaki Oil Drain FX850 / FX1000/ FX730
$42.58
251 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
263 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
264 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
265 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
292 086-9002-19 086-9002-19 - Wiring Harness Adaptor-All Kawasaki FX (See Models Used On For Details)
$20.29
