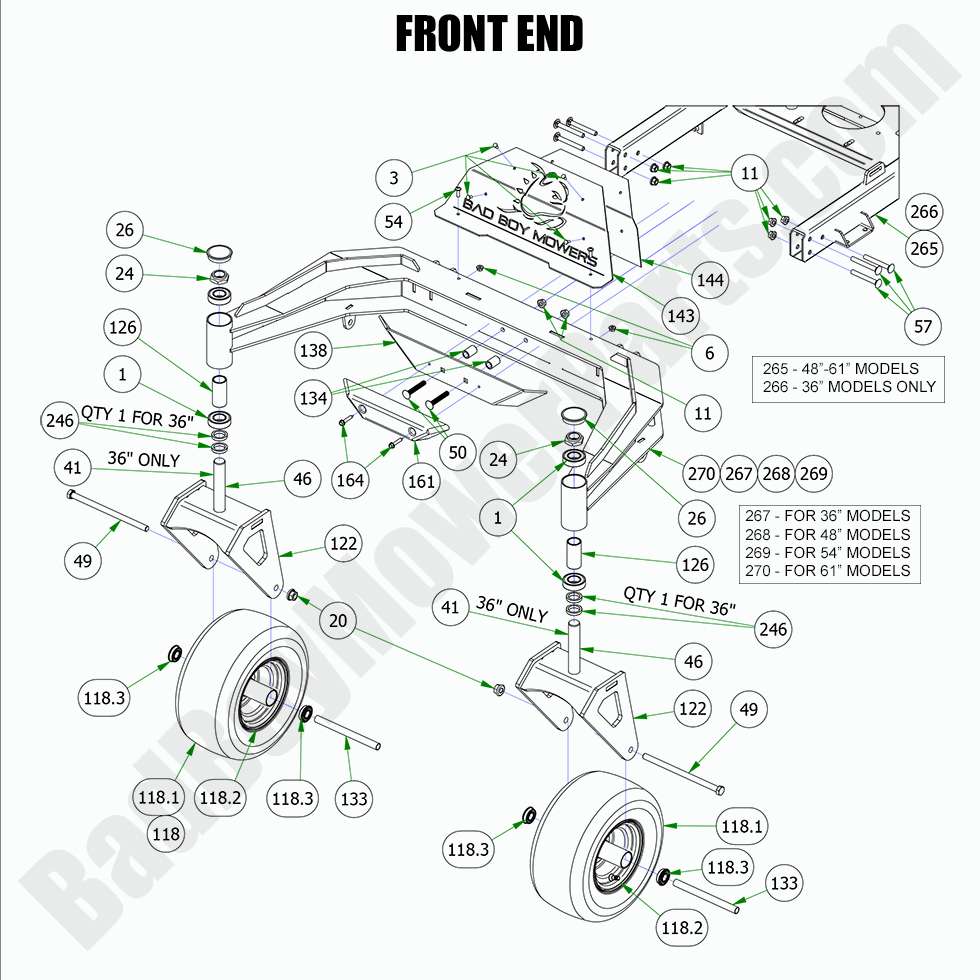

2022 Revolt - Front End

2022 Revolt - Front End

The 2022 Revolt Front End is a critical component of your mower’s overall stability and performance. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to keep your front end in top working condition. Whether you're looking for suspension components, frame parts, or wheels, we have the Bad Boy Lawn Mower Parts to meet your needs. Our Bad Boy Mower Part diagrams help you identify the specific parts for your front end quickly, making repairs or upgrades straightforward. Shopping for Bad Boy Parts Online provides the convenience of browsing and ordering from the comfort of your home. Plus, enjoy Free Shipping On Orders Over $100, so you can get the necessary parts delivered without extra shipping costs. Keep your 2022 Revolt front end performing like new with the right parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Front End
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
3 013-0026-00 013-0026-00 - 3/16" Diameter, for 0.1260"-0.25" Material
$3.29
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
26 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
41 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
46 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
49 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
50 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
54 018-0058-00 018-0058-00 - 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head No Longer Available
Obsolete.
57 018-0072-00 018-0072-00 - 3/8-16 x 3 Carriage Bolt Zinc GR5
$2.99
118.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
118.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
118.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
118 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
122 023-1010-00 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick
$145.95
126 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
133 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
134 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
138 026-0049-00 026-0049-00 - 2019-2022 Revolt Front Bumper Plate
$26.74
143 026-0084-00 026-0084-00 - Exhaust Shield Plate 2019-2022 Revolt
$13.90
144 026-0085-00 026-0085-00 - Exhaust Backer Plate
$16.04
161 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
164 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
246 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
265 070-5220-19 070-5220-19 - 2019-2022 Revolt Frame
$1149.99
266 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
267 070-9036-20 070-9036-20-36" Stand On Front End 2019-2022 Welded Assembly
$129.99
268 070-9048-19 070-9048-19 - 48" Stand On Front End 2019-2022 Welded Assembly
$129.99
269 070-9054-19 070-9054-19 - 54" Stand On Front End 2019-2022 Welded Assembly
$163.99
270 070-9061-20 070-9061-20 - 61" Stand On Front End 2020-2022 Welded Assembly (obsolete)
use part #070-9062-00
$229.99
