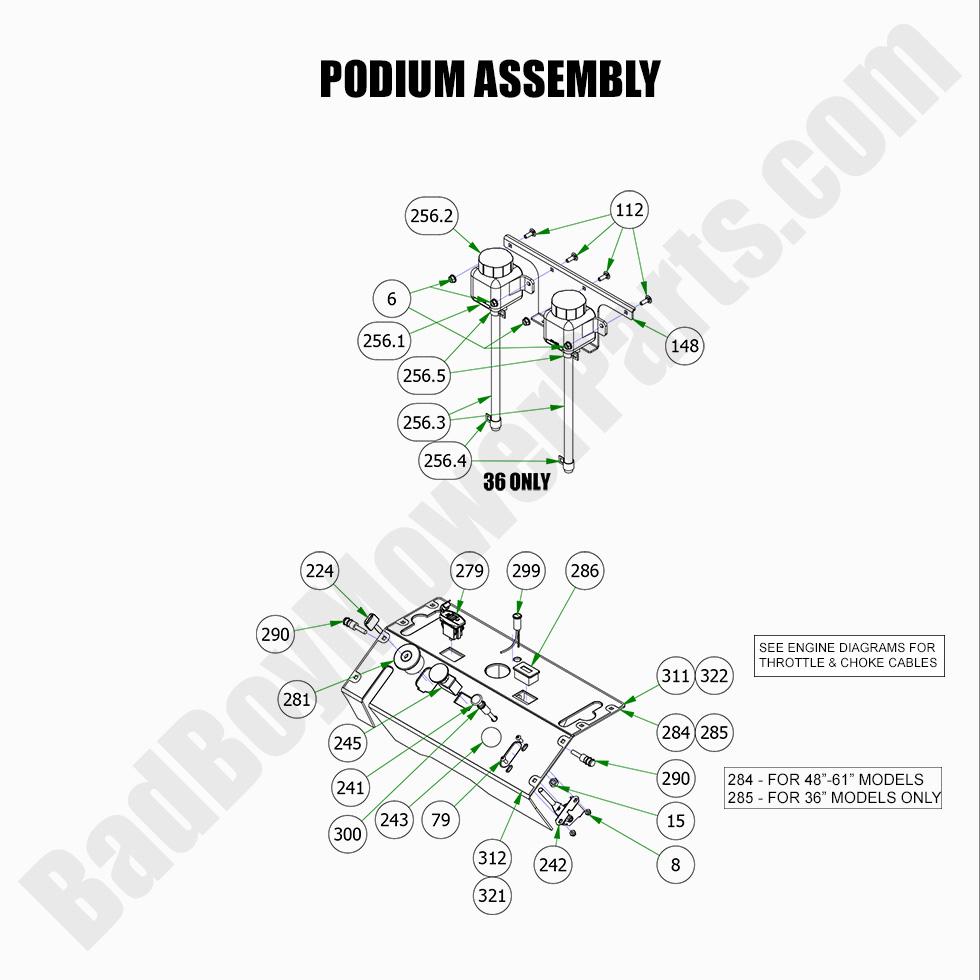

2022 Revolt - Podium Assembly

2022 Revolt - Podium Assembly

The 2022 Revolt Podium Assembly is an essential part of your mower’s frame, providing structural integrity and support. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts designed to keep your podium assembly in excellent condition. Whether you need to replace a damaged part or complete an upgrade, we have the Bad Boy Lawn Mower Parts you require. Our Bad Boy Mower Part diagrams make it easy to find the right components for your 2022 Revolt. Shopping Bad Boy Parts Online is convenient, and our website allows you to quickly order the parts you need. With Free Shipping On Orders Over $100, you’ll enjoy the added benefit of fast, cost-free delivery on all your orders. Keep your 2022 Revolt podium assembly functioning perfectly by selecting top-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Podium Assembly
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
15 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
79 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
112 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
148 026-0157-00 026-0157-00 - 36" Hydrotank Carrier Plate
$26.74
224 042-9000-00 042-9000-00 - Ignition Key
$4.06
242 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
243 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
245 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
256.1 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
256.2 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
256.3 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
256.4 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
256.5 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
279 077-2076-00 077-2076-00 - USB Port
$46.84
281 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
284 079-4112-00 079-4112-00 - 2019-2022 Revolt Podium Front Panel Weldment
$48.14
285 079-4113-00 079-4113-00 - 36" Podium Front Panel Weldment
$106.99
286 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
290 086-0015-00 086-0015-00 - Safety Switch Harness
$70.27
299 089-1000-00 089-1000-00 - Oil Light
$12.63
300 089-2000-00 089-2000-00 - Code Indicator Light-Yamaha
$21.39
311 091-4017-00 091-4017-00 - 2019-2022 Revolt Control Panel Lower Decal
$15.60
312 091-4018-00 091-4018-00 - 2019-2022 Revolt Control Panel Upper Decal
$18.72
321 091-4056-00 091-4056-00 - 36" Control Panel (upper) [Revolt]
$10.99
322 091-4057-00 091-4057-00 - 36" Control Panel (lower)
$10.99
