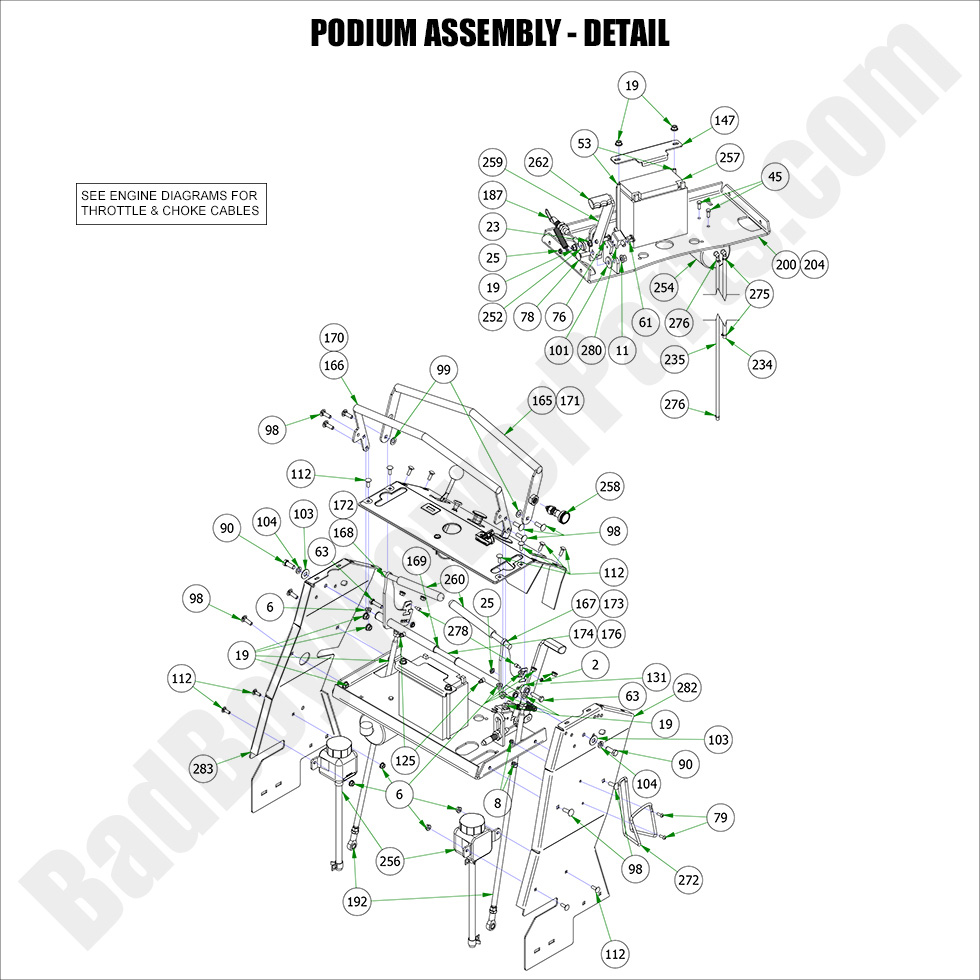

2022 Revolt - Podium Assembly - Detail

2022 Revolt - Podium Assembly - Detail

The 2022 Revolt Podium Assembly - Detail provides a deeper level of understanding about the components that make up your mower’s podium structure. If you need specific parts for this assembly, BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts. We carry all the necessary Bad Boy Lawn Mower Parts to maintain and repair the podium assembly in your 2022 Revolt. Our Bad Boy Mower Part diagrams are a helpful resource for identifying exactly what you need. Ordering Bad Boy Parts Online is quick and easy, allowing you to get your parts in no time. Plus, with Free Shipping On Orders Over $100, you can rest assured that your parts will arrive on time and at no additional cost. Enhance your 2022 Revolt podium assembly by purchasing reliable and high-quality parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Podium Assembly - Detail
  Position Number SKU Product Title Price
2 013-0001-00 013-0001-00 - 8-32 Hex Nut
$2.99
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
53 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
61 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
63 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
76 018-5020-00 018-5020-00 - 5/16-18 X 1-1/2 Carriage Bolt
$2.99
78 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
79 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
90 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
98 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
99 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
101 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
103 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
104 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
112 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
125 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
131 025-2001-00 025-2001-00 - ACS Spacer 3/4x3/8x1/4
$15.60
147 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
165 031-0026-00 031-0026-00 - Front Control Arm Stop 2019-2022 Revolt
$61.09
166 031-0027-00 031-0027-00 - Rear Control Arm Stop 2019-2022 Revolt
$46.00
167 031-0028-00 031-0028-00 - RH Drive Arm Actuator 2019-2022 Revolt
$42.52
168 031-0029-00 031-0029-00 - LH Drive Arm Actuator 2019-2022 Revolt
$42.52
169 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
170 031-0033-00 031-0033-00 - 36" Revolt Rear Control Arm Stop Weldmen No Longer Available
Obsolete.
171 031-0034-00 031-0034-00 - 36" Front Control Arm Stop Weldment--Bla
$32.05
172 031-0037-00 031-0037-00 - 36" RH Drive Arm Actuator Weldment
$32.05
173 031-0038-00 031-0038-00 - 36" Revolt LH Drive Arm Actuator Weldment
$32.05
174 031-0091-00 031-0091-00 - Drive Pivot Bar 2020-2022 Revolt
$35.48
176 031-0094-00 031-0094-00 - Revolt Drive Pivot Bar
$23.53
187 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
192 035-0006-19 035-0006-19 - Push-Rod Assembly
$46.84
200 039-0087-00 039-0087-00 - Console Bracket Weldment 2019-2022 Revolt
$21.39
204 039-0154-00 039-0154-00 - 36" Console Bracket Weldment No Longer Available
Obsolete.
234 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
235 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
252 064-3000-00 064-3000-00 - 44" Brake Cable
$31.22
254 067-0020-00 067-0020-00 - Carbon Canister
$62.40
256 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
258 069-0002-00 069-0002-00 - Retractable Spring Plunger Black Steel 5/8-11
$84.52
259 069-2013-00 069-2013-00 - 2019 Revolt Brake Handle
$109.99
260 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
262 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
272 071-6005-00 071-6005-00 - Revolt Cup Holder (See Models Used On For Details)
$22.71
275 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
276 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
278 077-1000-00 077-1000-00 - Magnet-Steering Arm
$14.97
280 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
282 079-4106-00 079-4106-00 - RH Podium Panel 2019-2022 Revolt
$37.44
283 079-4111-00 079-4111-00 - LH Podium Panel 2019-2022 Revolt
$37.44
