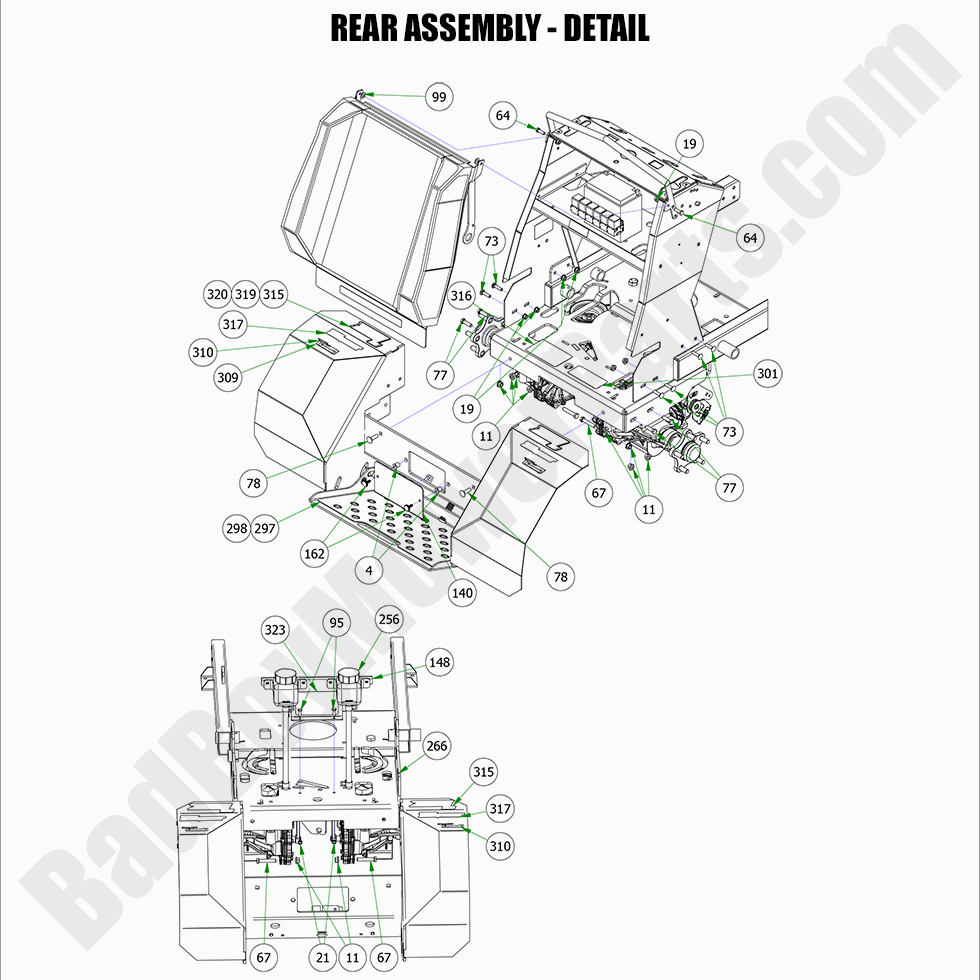

2022 Revolt - Rear Assembly Detail

2022 Revolt - Rear Assembly Detail

The 2022 Revolt Rear Assembly Detail focuses on the specific components that make up your mower’s rear assembly, allowing you to maintain and repair it effectively. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts tailored for the 2022 Revolt. From rear wheels to suspension components, we provide all the Bad Boy Lawn Mower Parts you need for repairs and upgrades. Our easy-to-follow Bad Boy Mower Part diagrams simplify the process of finding and identifying the exact parts for the rear assembly. Shopping Bad Boy Parts Online gives you the convenience of browsing and purchasing the parts you need from home. Plus, enjoy Free Shipping On Orders Over $100, so you can have your parts delivered directly to your door without any additional costs. Keep your 2022 Revolt rear assembly in great shape with reliable parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Rear Assembly Detail
  Position Number SKU Product Title Price
4 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
21 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
67 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
73 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
77 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
78 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
95 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
99 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
140 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
148 026-0157-00 026-0157-00 - 36" Hydrotank Carrier Plate
$26.74
162 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
256 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
266 070-5221-20 070-5221-20 - 2020 36" Revolt Frame
$1299.99
297 088-0050-00 088-0050-00 - Grip Tape for 026-0062-00
$21.39
298 088-0051-00 088-0051-00 - Grip Tape for 026-0158-00
$25.67
301 091-0015-00 091-0015-00 - EPA Build Date Punch Label All Mowers
$3.62
309 091-4002-22 091-4002-22 - 2022 Powered By Vangaurd Decal
$6.04
310 091-4003-22 091-4003-22 2022 Powered by Kawasaki Decal
$2.99
315 091-4021-00 091-4021-00 - 2019-2022 Revolt 726cc Decal
$8.01
316 091-4022-00 091-4022-00 - 2019-2022 Revolt Pump Belt Route Decal
$6.04
317 091-4031-00 091-4031-00 - 2019-2023 Revolt Fender Decal (See Models Used On For Details)
$10.91
319 091-4053-00 091-4053-00 - 810CC Revolt EFI Fender Decal
$10.99
320 091-4054-00 091-4054-00 - 852CC Revot Fender Decal
$16.04
323 091-4058-00 091-4058-00 - 36" Revolt Deck Belt Route Decal No Longer Available
Obsolete.
