2022 Revolt - Spindle & Idler Pulleys

2022 Revolt - Spindle & Idler Pulleys

The 2022 Revolt Spindle & Idler Pulleys play a crucial role in the mower’s cutting mechanism, ensuring smooth and efficient operation. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to keep your spindles and idler pulleys in optimal condition. Whether you need to replace a damaged pulley or upgrade a worn spindle, we have the Bad Boy Lawn Mower Parts you need to get your mower running like new. Our Bad Boy Mower Part diagrams make it easy to find the exact parts for your specific model. Shopping Bad Boy Parts Online ensures a fast and convenient experience, so you can get your parts quickly. Plus, enjoy Free Shipping On Orders Over $100 to save on delivery costs. Keep your 2022 Revolt cutting like a pro with high-quality spindles and idler pulleys from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

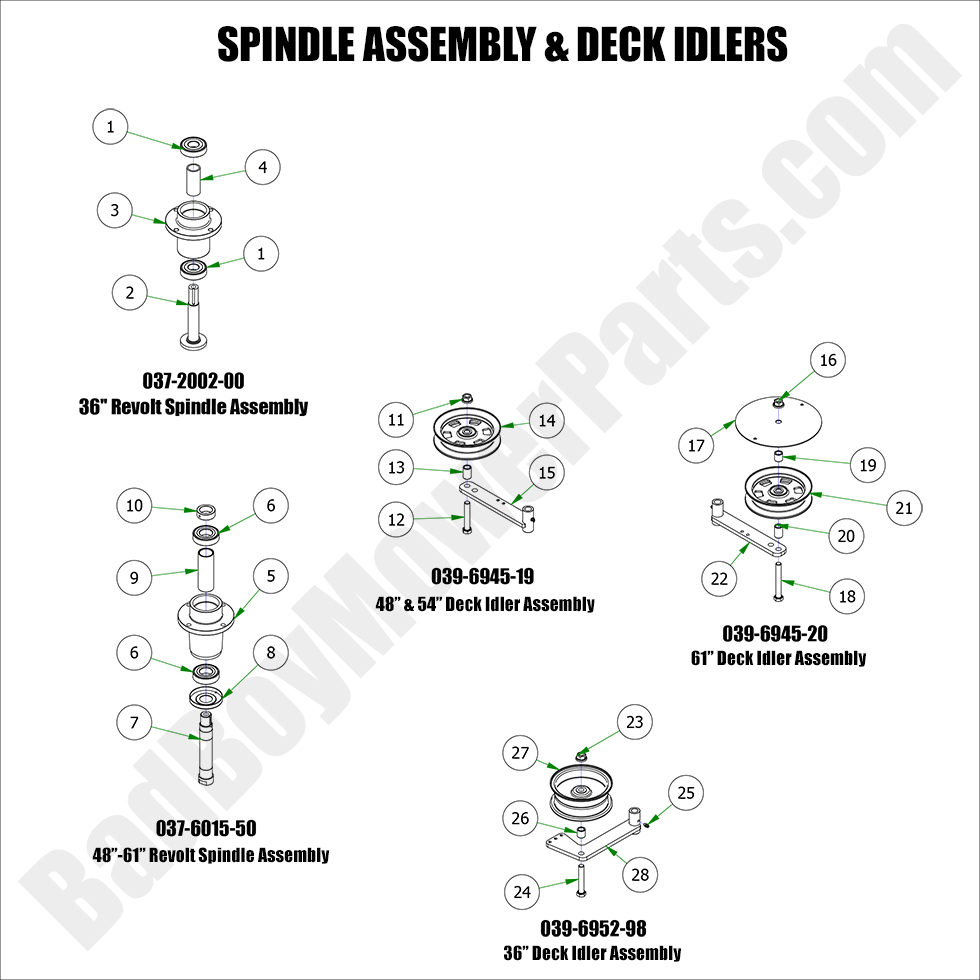

2022 Revolt - Spindle & Idler Pulleys
  Position Number SKU Product Title Price
1 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
1 037-2002-00 037-2002-00 - Revolt SD 34" and 42" Decks, Revolt 36" Deck Spindle (See Models Used On For Details)
$212.29
2 037-6025-01 037-6025-01 - 36" Revolt Spindle Shaft
$72.75
2 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
3 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
3 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
4 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
4 039-6952-98 039-6952-98 - 36" Revolt Deck Idler Assembly (See Models Used On For Detail)
$70.61
5 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
5 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
6 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
7 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
8 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
9 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
10 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
13 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
14 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
17 014-4005-00 014-4005-00 - 61" Revolt Idler Pulley Cover
$21.39
18 018-0051-00 018-0051-00 - 1/2-13 X 3.75 Hex Bolt-
$2.99
19 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
25 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
27 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
28 039-6952-00 039-6952-00 - Deck Idler Arm
$10.99
