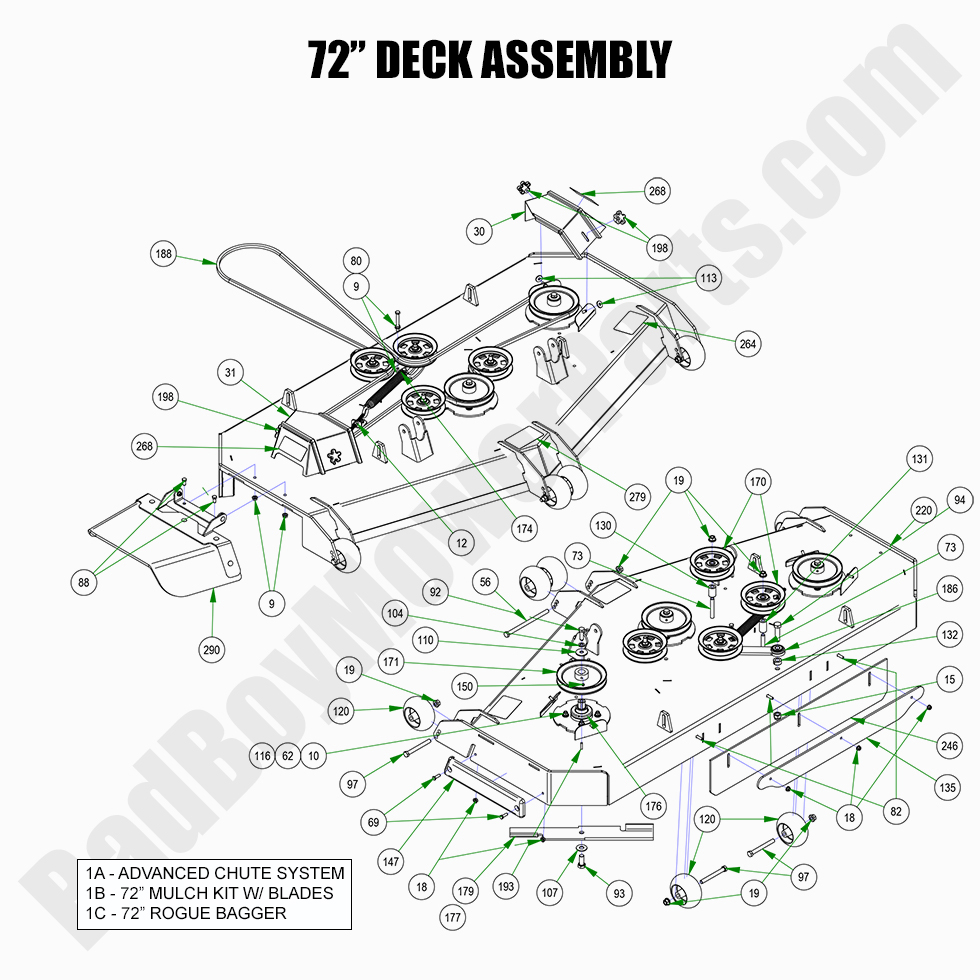

2022 Rogue - 72" Deck Assembly

2022 Rogue - 72" Deck Assembly

Maintaining your 2022 Rogue 72" Deck Assembly is essential for efficient, consistent mowing. At BadBoyMowerParts.com, we specialize in offering a full range of Bad Boy Mower Parts to support the repair and upkeep of your deck assembly. From the deck frame to the blades, you can find everything you need for the 2022 Rogue 72" Deck Assembly. Our Bad Boy Mower Part diagrams make it easy to locate specific parts, helping you complete repairs with confidence. Plus, with our collection of Bad Boy Lawn Mower Parts, you can ensure that your deck stays in top condition for years to come. Order Bad Boy Parts Online and enjoy the added benefit of Free Shipping On Orders Over $100, so you can keep your mower performing at its best with no extra shipping costs.

Bad Boy Mower Parts Lookup

2022 Rogue - 72" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0372-00 210-0372-00 - 2019-2025 72" Mulch Kit w/Blades Outlaws
$318.45
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
30 014-5054-00 014-5054-00 - 72" Left Deck Pulley Cover 2019 & Up Rebel, Renegade & Rogue
$17.86
31 014-5055-00 014-5055-00 - 72" Right Deck Pulley Cover (See Models Used On For Details)
$17.86
56 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
62 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
73 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
80 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
82 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
88 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
92 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
93 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
94 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
97 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
104 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
107 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
110 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
113 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
116 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
120 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
130 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
131 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
132 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
135 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
147 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
150 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
170 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
171 033-7203-00 033-7203-00 - 7" Spindle Deck Pulley 72" Decks
$35.48
174 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
176 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
177 038-5400-00 038-5400-00 - 72" Gator Mulching Blade
$24.99
179 038-7230-00 038-7230-00 - 72" High Lift Fusion Blade
$24.99
186 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
186 041-0202-00 041-0202-00 - B202 Deck Belt for 72" (See Models Used On for Details)
$109.40
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
198 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
220 060-7251-19 060-7251-19 - 72" Sloped Deck Shell 2019-Newer Rebel, Renegade & Rogue
$1461.53
246 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
264 091-0918-18 091-0918-18 - 2018-2022 72" Deck Decal
$6.41
268 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
279 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
290 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
