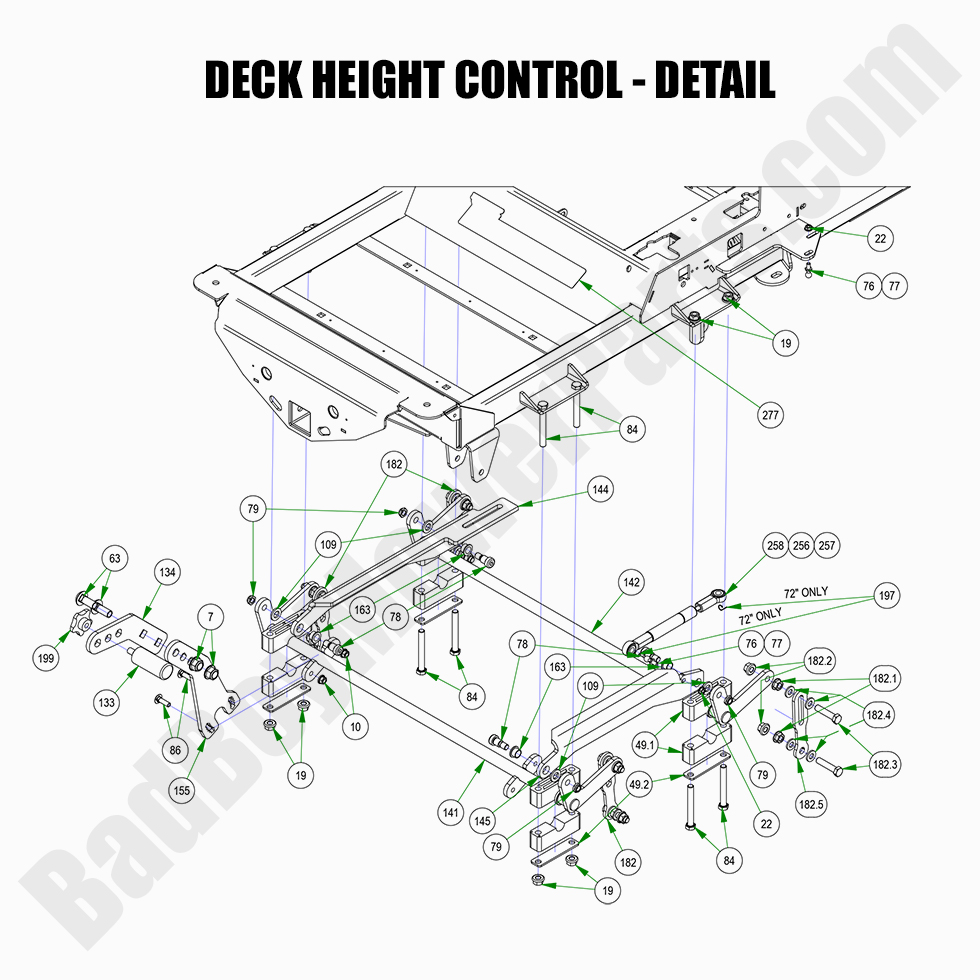

2022 Rogue - Deck Height Control - Detail

2022 Rogue - Deck Height Control - Detail

The 2022 Rogue Deck Height Control - Detail plays an essential role in fine-tuning the cutting height for your mower, offering better results and more versatility. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts, including detailed components for your deck height control system. With our Bad Boy Mower Part diagrams, you can quickly identify the exact parts needed to keep your 2022 Rogue performing at its best. Whether you need to replace springs, pins, or other components, our site offers a wide range of Bad Boy Lawn Mower Parts to meet your needs. Plus, shopping Bad Boy Parts Online comes with the bonus of Free Shipping On Orders Over $100, so you can get the parts you need without worrying about added shipping costs.

Bad Boy Mower Parts Lookup

2022 Rogue - Deck Height Control - Detail
  Position Number SKU Product Title Price

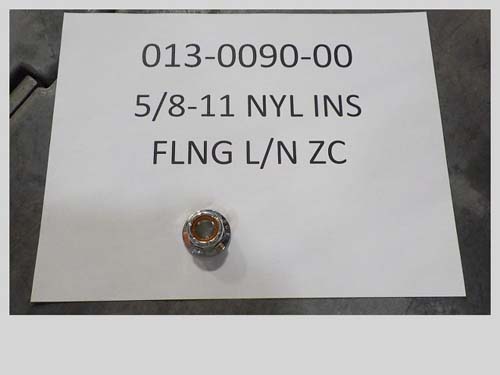

7 013-0090-00 013-0090-00 - 5/8-11 Nylon Insert Flange Nut
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
19 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
49.1 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
49.2 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09

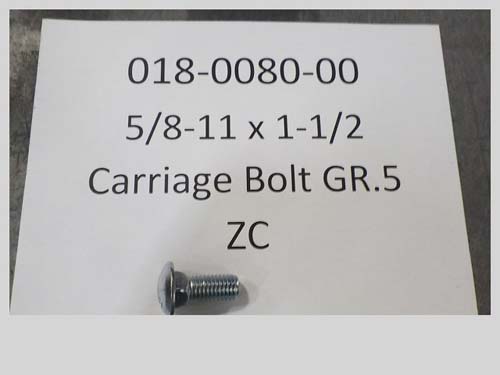

63 018-0080-00 018-0080-00 - 5/8-11 X 1-1/2 Carriage Bolt
$3.29
76 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
77 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
78 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
79 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
84 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
86 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
109 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
133 026-0026-00 026-0026-00 - Knurled Foot Pedal
$39.03

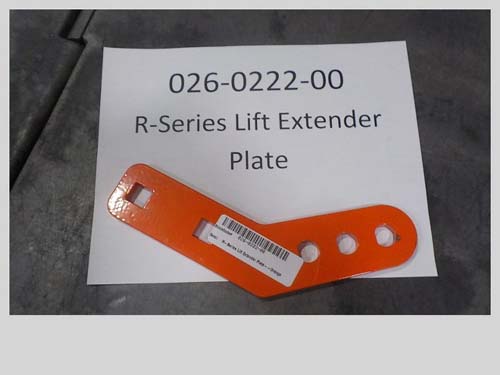

134 026-0222-00 026-0222-00 - R-Series Lift Extender Plate
$10.99
141 028-0026-00 028-0026-00 - Front Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$119.41
142 028-0027-00 028-0027-00 - Rear Actuator Bar 2019-2022 Rebel, Renegade & Rogue
$82.38
144 028-6075-22 028-6075-22 - Actuator Linkage-Right
$43.86
155 031-0003-00 031-0003-00 - Foot Lift Upright Lever
$17.11
163 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
182.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
182.3 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
182.4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
182.5 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
182 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
197 044-6050-00 044-6050-00 - Security Ring - PC744
$2.99
199 045-6044-00 045-6044-00 - Foot Pedal Knob 1/2-13
$12.48
256 087-5400-00 087-5400-00 - 200lb Gas Spring - 54" Outlaw Deck Damper
$62.40
257 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
258 087-7200-00 087-7200-00 - 300 lb Gas Spring -72" Deck Damper
$62.40
277 091-4028-00 091-4028-00 - 2019-2022 Rogue Cooler Cover Decal
$12.48
