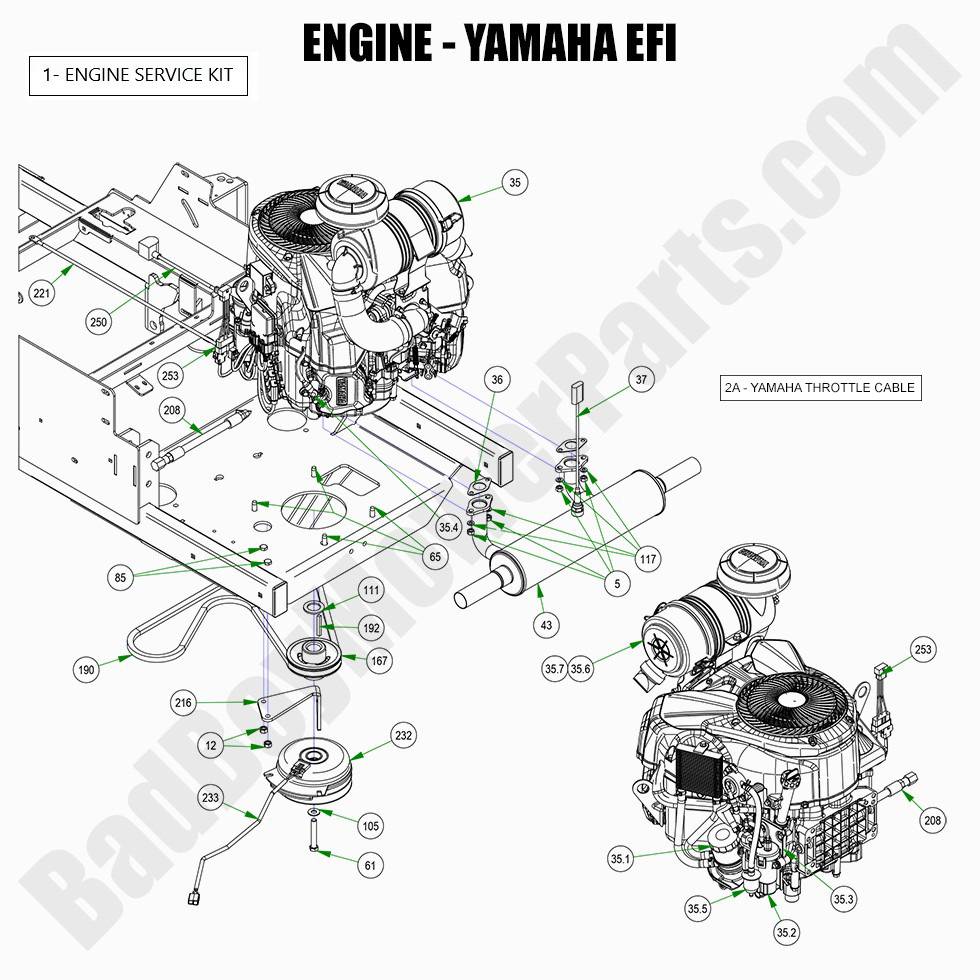

2022 Rogue - Engine - Yamaha EFI

2022 Rogue - Engine - Yamaha EFI

For reliable performance, the 2022 Rogue Engine - Yamaha EFI is an excellent choice. BadBoyMowerParts.com offers a comprehensive selection of Bad Boy Mower Parts designed to fit this engine perfectly. Whether you need parts for the fuel system, electrical components, or air intake, we have a variety of options available. Our website includes helpful Bad Boy Mower Part diagrams to assist you in identifying and selecting the right parts. With our extensive inventory of Bad Boy Lawn Mower Parts, you can keep your 2022 Rogue Engine - Yamaha EFI running efficiently for years to come. Shopping Bad Boy Parts Online is easy and convenient, and you’ll enjoy Free Shipping On Orders Over $100, so you can keep your mower in excellent condition without any additional shipping costs.

Bad Boy Mower Parts Lookup

2022 Rogue - Engine - Yamaha EFI
  Position Number SKU Product Title Price
1 063-2000-11 063-2000-11 - Yamaha 824cc Engine Service Kit
$134.86
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
35.1 015-0053-02 015-0053-02 - 2017-2022 Yamaha Oil Filter
$34.23
35.2 015-0053-03 015-0053-03 - 2017-2022 Yamaha High Pressure Fuel Pump
$569.99
35.3 015-0053-04 015-0053-04 - Yamaha Fuel Pump Bracket
$53.49
35.5 015-0053-21 015-0053-21 - Fuel Filter for Yamaha MX825VJ7X6
$10.99
35.6 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
35.7 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
35 015-0053-00 015-0053-00 - Yamaha Engine-33hp (See Models Used On For Details)
$2999.00
36.4 015-0053-06 015-0053-06 - 2017-2022 Yamaha Spark Plug
$10.99
36 015-0053-01 015-0053-01 - 2017-2022 Yamaha Exhaust Gasket
$8.01
37 015-0053-05 015-0053-05 - Yamaha O2 Sensor
$256.99
43 015-1015-00 015-1015-00 - 2019 - 2022 Rebel/Rogue Yamaha 824 EFI/Carb Muffler Catalytic Combustion # 582984-MUF17
$108.90
65 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
85 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
105 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
111 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
117 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
167 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
190 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
192 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
208 051-5403-00 051-5403-00 - Yamaha Oil Drain
$35.84
216 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
221 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
232 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
233 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
250 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
253 086-9006-21 086-9006-21 2021-2024 Harness Adapter - Yamaha/Kohler EFI
$42.58
