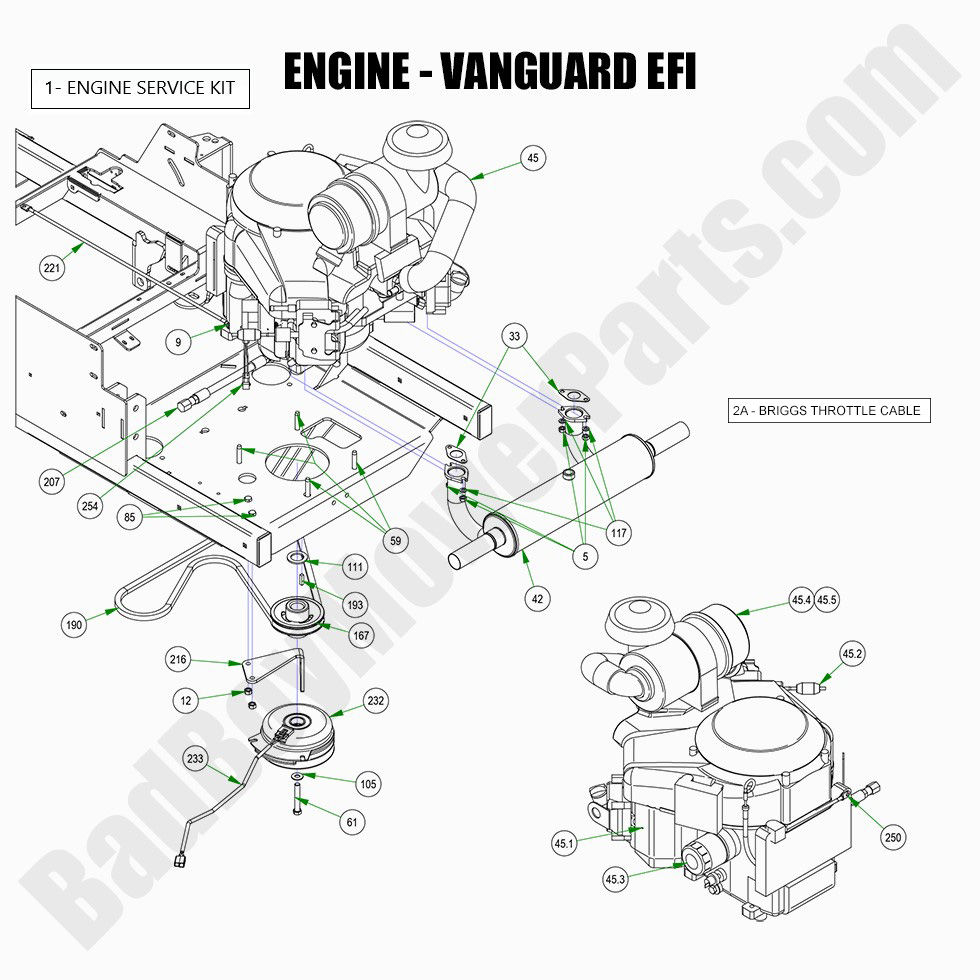

2022 Rogue - Engine - Vanguard EFI

2022 Rogue - Engine - Vanguard EFI

The 2022 Rogue Engine - Vanguard EFI delivers impressive power and efficiency, and keeping it in top condition is essential for peak mower performance. At BadBoyMowerParts.com, we provide an extensive selection of Bad Boy Mower Parts specifically designed for the 2022 Rogue Engine - Vanguard EFI. From fuel injectors to spark plugs and air filters, we carry everything you need to maintain or repair your engine. Our Bad Boy Mower Part diagrams guide you in selecting the right parts for a perfect fit. With our vast collection of Bad Boy Lawn Mower Parts, your engine will run as smoothly as the day you purchased it. Plus, when you order Bad Boy Parts Online, you can enjoy Free Shipping On Orders Over $100, ensuring that maintenance is hassle-free and cost-effective.

Bad Boy Mower Parts Lookup

2022 Rogue - Engine - Vanguard EFI
  Position Number SKU Product Title Price
1 063-2000-22 063-2000-22 - Engine Service Kit - Briggs Vanguard 810/993/999cc (EFI Models Only)
$127.15
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
5 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
12 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
33 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard (obsolete)
use part #015-2708-00
$16.04
42 015-1014-00 015-1014-00 - Exhaust (See Models Used On For Details)
$199.00
45.1 015-8000-03 015-8000-03 - Spark Plug for Vanguard 37hp EFI and 28hp EFI (Not for Non-EFI)
$7.69
45.2 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
45.3 063-8018-00 063-8018-00 - Oil Filter
$21.39
45.4 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
45.5 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
45 015-3001-00 015-3001-00 - Vanguard EFI 37HP 993cc Vertical Shaft (See Models Used On For Details)
$3499.99
59 018-0061-00 018-0061-00 - 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
$5.93
85 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
105 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
111 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
117 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
167 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
190 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
193 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
207 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
216 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
221 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
232 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
233 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
250 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
