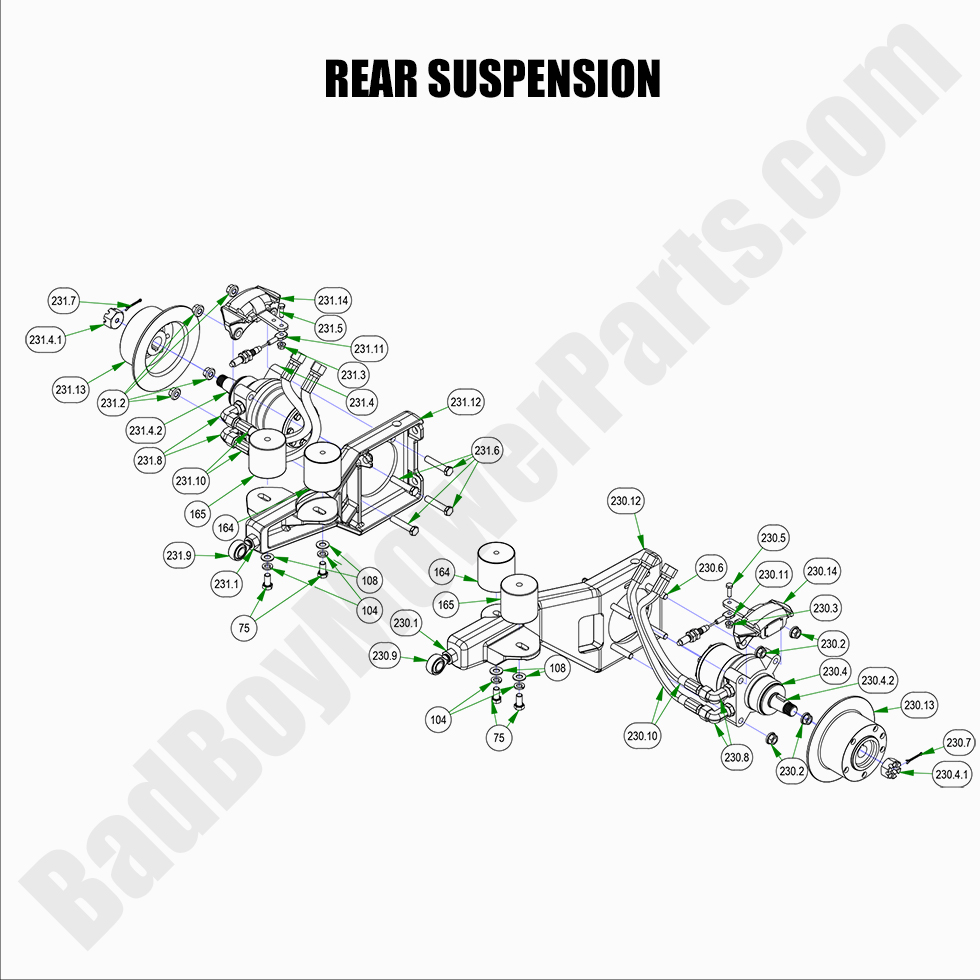

2022 Rogue - Rear Suspension

2022 Rogue - Rear Suspension

The 2022 Rogue Rear Suspension is crucial for providing a smooth and stable ride, especially on uneven terrain. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to maintain and repair your rear suspension system. From shock absorbers to springs and brackets, we carry all the components necessary for your 2022 Rogue Rear Suspension. Our Bad Boy Mower Part diagrams guide you through the selection process, ensuring that you choose the correct parts for your mower. With an extensive range of Bad Boy Lawn Mower Parts available, you can trust that your mower’s suspension system will be in top shape. Shop Bad Boy Parts Online for quick and easy ordering, and enjoy Free Shipping On Orders Over $100 for added convenience.

Bad Boy Mower Parts Lookup

2022 Rogue - Rear Suspension
  Position Number SKU Product Title Price
75 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
104 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
108 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
164 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
165 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
230.1 013-0022-00 013-0022-00 - 3/4"-16 Fine Full Nut
$7.36
230.2 013-6040-00 013-6040-00 - 1/2-13 Centerlock Flange Nut
$2.99
230.3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
230.4.1 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
230.4.2 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
230.4 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
230.5 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
230.6 018-6041-00 018-6041-00 - 1/2-13 x 2.75 Gr.8 Hex Head Bolt
$2.99
230.7 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
230.8 024-2065-00 024-2065-00 - Rogue/Renegade Wheel Motor 90 Degree Fitting
$18.67
230.9 048-7001-00 048-7001-00 - 3/4-16 RH Male Rod End for suspension mowers -CMX12
$28.39
230.10 051-6006-00 051-6006-00 - 20" Hydraulic Hose (See Models Used On For Detail)
$46.84
230.11 064-8054-00 064-8054-00 - Short Brake Cable-Suspension Models (See Models Used On For Details)
$51.47
230.12 070-0001-00 070-0001-00 - Left Trailing Arm 2019-2022 Renegade & Rogue
$291.91
230.13 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
230.14 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
231.4 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
231.11 064-9002-00 064-9002-00 - Long Brake Cable- 2019-2025 Renegade, Rogue
$51.47
231.12 070-0002-00 070-0002-00 - Right Trailing Arm 2019-2022 Renegade & Rogue
$219.99
231.14 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
