2022 Rogue - Rear Wheel & Pump Idler

2022 Rogue - Rear Wheel & Pump Idler

The 2022 Rogue Rear Wheel & Pump Idler is an important part of the drivetrain, ensuring that your mower’s wheels and pumps operate smoothly. At BadBoyMowerParts.com, we provide a wide selection of Bad Boy Mower Parts for the 2022 Rogue Rear Wheel & Pump Idler, ensuring that your mower continues to run efficiently. Whether you need a replacement wheel, idler pulley, or bearings, our parts are built to last and perform. With our Bad Boy Mower Part diagrams, identifying the right components for your mower is quick and easy. Our extensive catalog of Bad Boy Lawn Mower Parts ensures that you get the precise parts you need for optimal performance. Shop Bad Boy Parts Online and benefit from Free Shipping On Orders Over $100, making it easy to keep your mower in excellent condition without extra costs.

Bad Boy Mower Parts Lookup

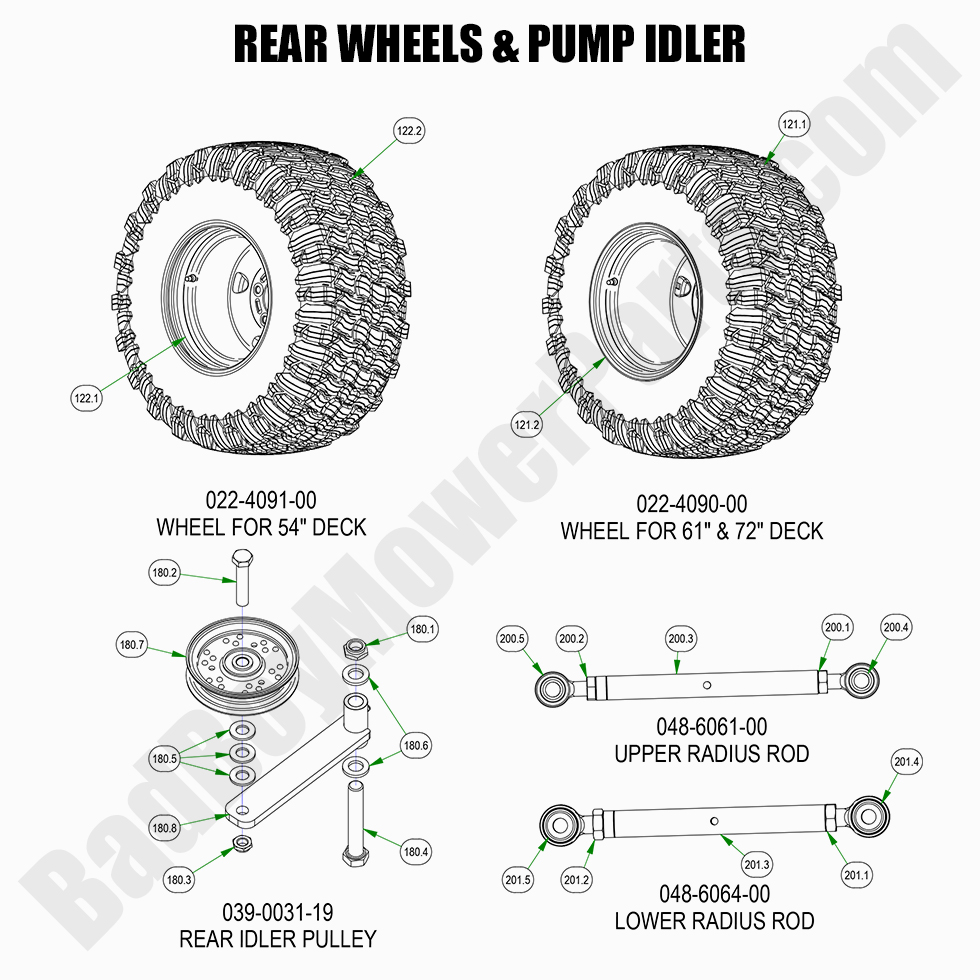

2022 Rogue - Rear Wheel & Pump Idler
  Position Number SKU Product Title Price
121.1 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99

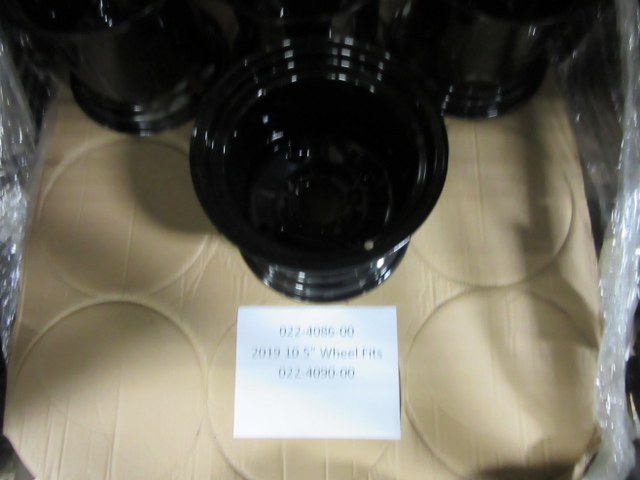

121.2 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
121 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
122.1 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
122 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
180.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
180.2 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
180.3 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
180.4 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
180.5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
180.6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
180.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22

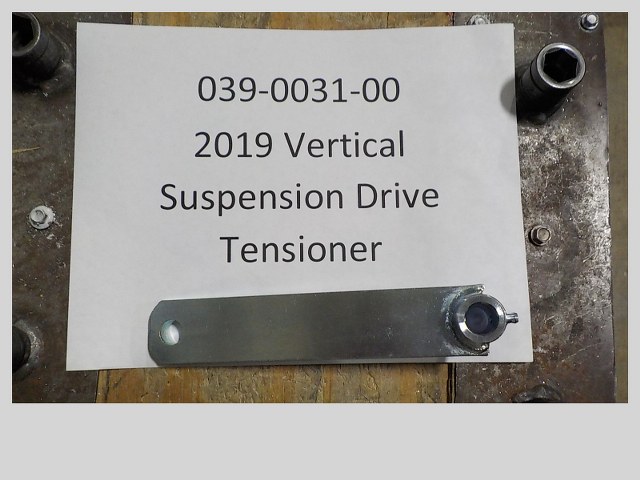

180.8 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06

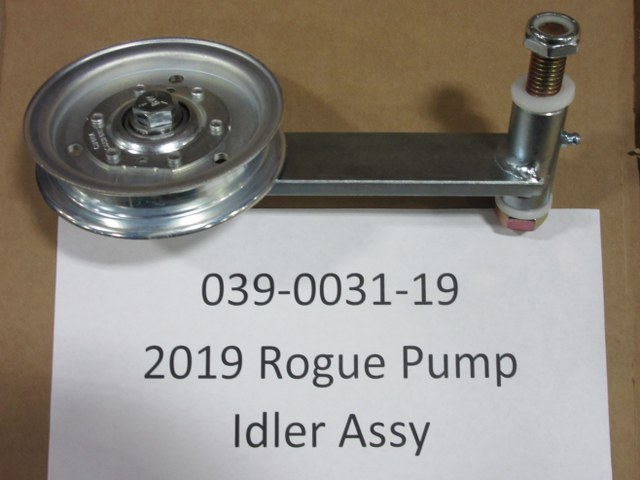

180 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
200.1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
200.2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
200.3 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
200.4 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
200.5 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
200 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
201.2 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
201.3 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
201.4 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
201.5 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
201 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
