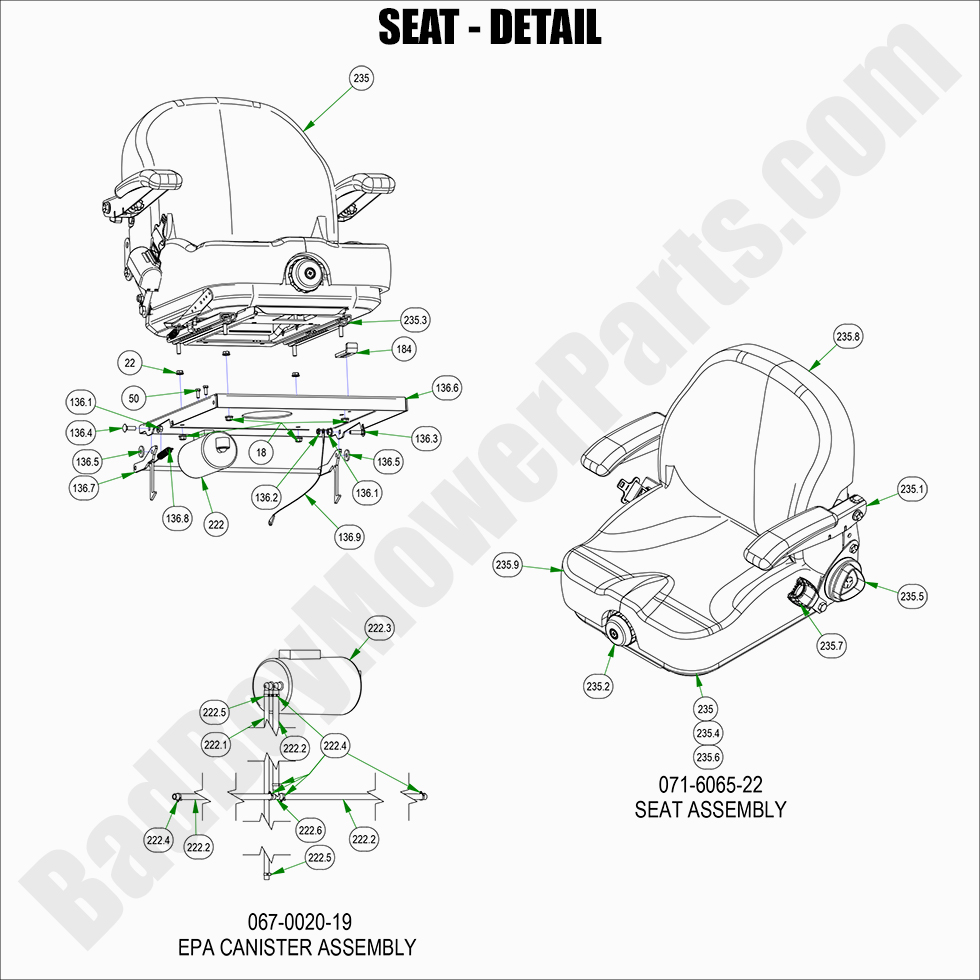

2022 Rogue - Seat  - Detail

2022 Rogue - Seat - Detail

The 2022 Rogue Seat - Detail is essential for maintaining comfort and safety while using your mower. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to replace or upgrade your seat for the 2022 Rogue. Our extensive selection includes both seats and the detailed components that make them functional, such as cushions, frames, and mounting brackets. With our Bad Boy Mower Part diagrams, you can easily locate the exact parts required for your mower's seat. Whether you're replacing a worn-out seat or upgrading for added comfort, you’ll find everything you need in our inventory of Bad Boy Lawn Mower Parts. Shopping Bad Boy Parts Online is easy and convenient, and with Free Shipping On Orders Over $100, it’s more affordable than ever to get your mower back in top shape.

Bad Boy Mower Parts Lookup

2022 Rogue - Seat  - Detail
  Position Number SKU Product Title Price
1 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
2 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
50 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
136.6 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
184 039-2156-00 039-2156-00 - Seat stop
$14.19
222.1 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
222.2 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
222.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
222.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
222.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
222.6 073-8068-00 073-8068-00 - Fuel Line T
$9.70
235.1 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
235.2 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
235.3 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
235.5 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
235.6 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
235.7 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
235.8 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
235.9 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
