2022 Rogue - Seat  & Frame

2022 Rogue - Seat & Frame

The 2022 Rogue Seat & Frame is essential for comfort and support while operating your mower. At BadBoyMowerParts.com, we offer a wide range of Bad Boy Mower Parts to ensure that your 2022 Rogue Seat & Frame is sturdy and comfortable for long mowing sessions. Whether you need a replacement seat or a new frame, we have the parts you need for a perfect fit. Our Bad Boy Mower Part diagrams guide you through the process of selecting the right seat and frame components for your mower. With a large selection of Bad Boy Lawn Mower Parts to choose from, you can count on us to keep your mower in top condition. Order Bad Boy Parts Online today and enjoy Free Shipping On Orders Over $100, ensuring that your parts arrive quickly and affordably.

Bad Boy Mower Parts Lookup

2022 Rogue - Seat  & Frame
  Position Number SKU Product Title Price
2 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
8 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
18 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
32 014-9003-00 014-9003-00 - 1 1/2 x 3 Frame Plug
$2.99
54 018-0044-00 018-0044-00 - 3/8 x 2 1/2 Carriage Bolt
$2.99
58 018-0050-00 018-0050-00 - 1/2-13 X 3.25 Hex Bolt-
$2.99
69 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
87 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
99 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
112 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
114 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
115 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99

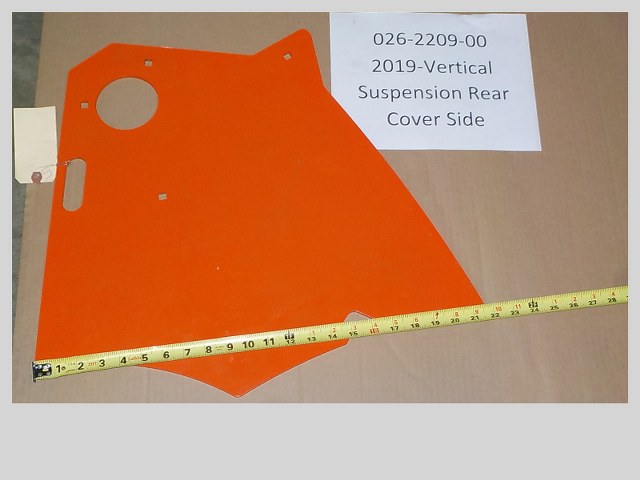

137 026-2209-00 026-2209-00 - Rear Side Cover 2019-2025 Rogue
$225.56

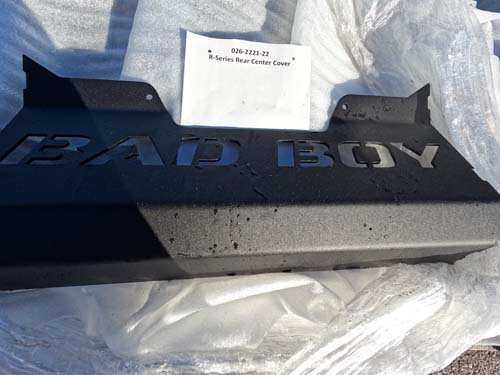

138 026-2221-22 026-2221-22 - Vertical Rear Cover Tailgate-Black
$255.99
146 029-4010-00 029-4010-00 - Button Bumper
$2.99

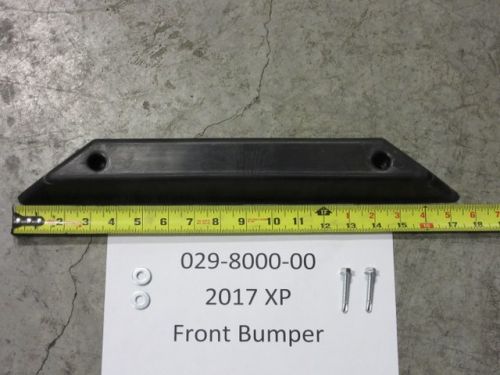

149 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
151 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99

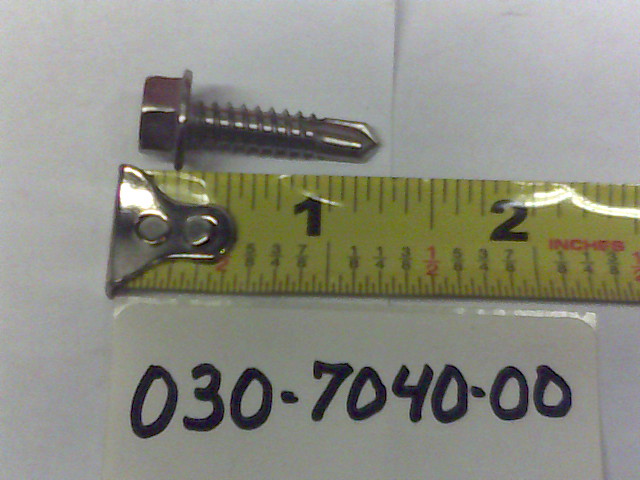

153 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99

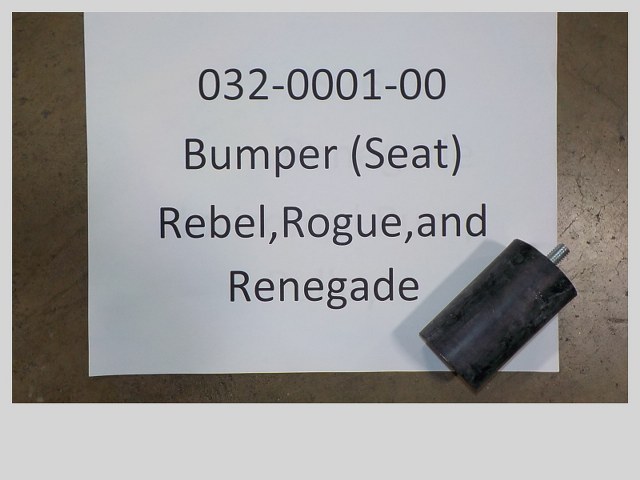

161 032-0001-00 032-0001-00 - Rubber Bumper (Seat) 2019-2022 Rebel, Renegade & Rogue
$23.41
240.1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
240.2 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99

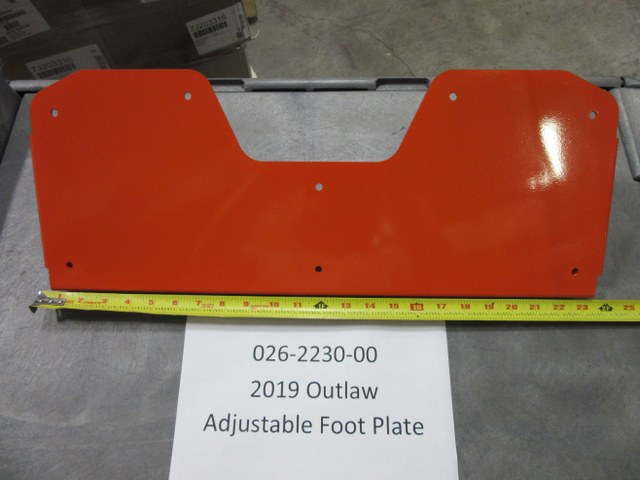

240.3 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
240.4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
240.5 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$109.99
240.6 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
240.7 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2024 Rebel, Renegade & Rogue
$78.10
259 089-0006-00 089-0006-00 - 2019-2024 2x2 R SERIES Outlaw Folding Rops Femco # SIP3980
$836.43

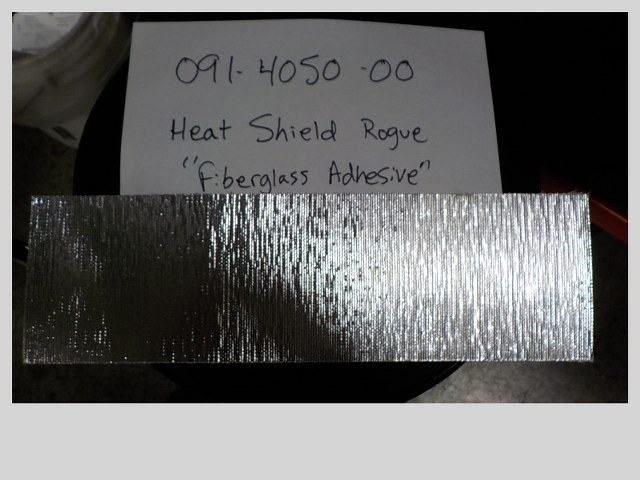

284 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
