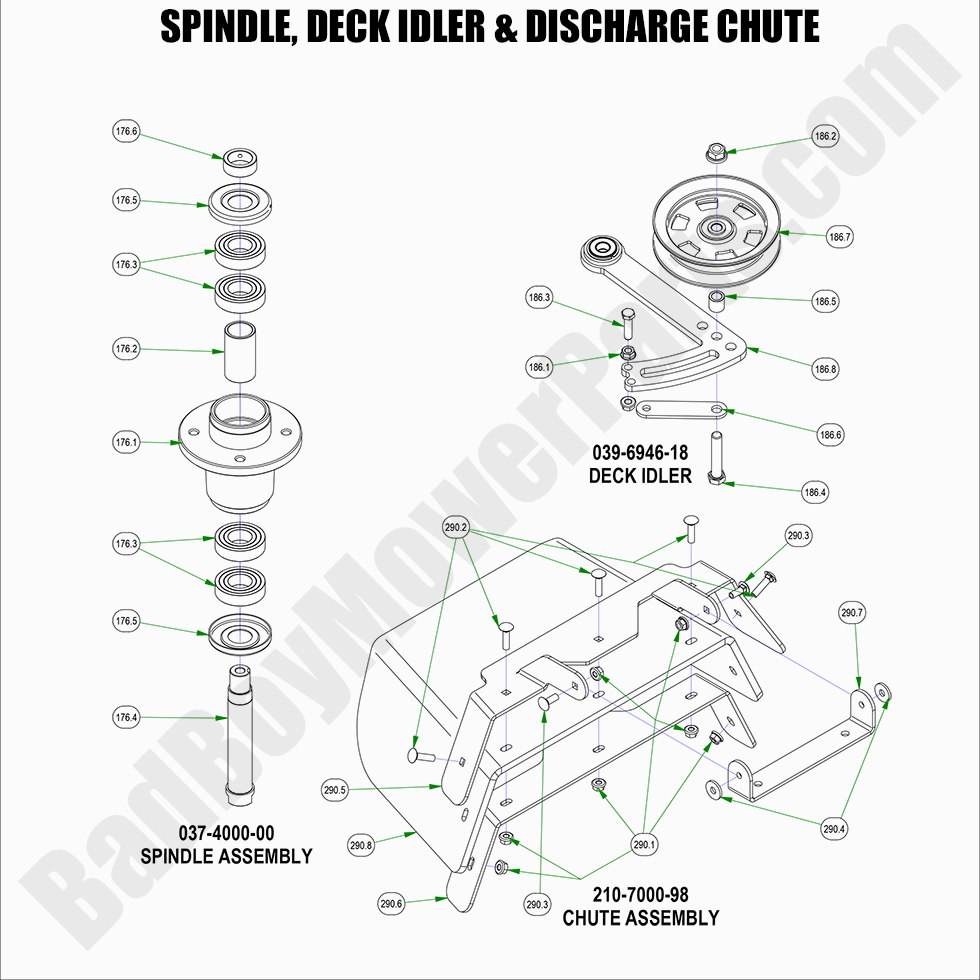

2022 Rogue - Spindle, Idler & Discharge

2022 Rogue - Spindle, Idler & Discharge

The 2022 Rogue Spindle, Idler & Discharge components are essential for ensuring that your mower’s deck functions properly and efficiently. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower Parts for the 2022 Rogue, including spindles, idlers, and discharge parts. These components help maintain the smooth operation of the cutting deck, allowing your mower to perform at its best. Our Bad Boy Mower Part diagrams make it easy to select the exact parts needed for your mower. Whether you're replacing worn parts or doing routine maintenance, we have the necessary Bad Boy Lawn Mower Parts to keep your mower in peak condition. By shopping Bad Boy Parts Online, you’ll have access to all the parts you need with the added benefit of Free Shipping On Orders Over $100, so you can keep your mower in top condition at an affordable price.

Bad Boy Mower Parts Lookup

2022 Rogue - Spindle, Idler & Discharge
  Position Number SKU Product Title Price
1 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
2 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
3 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
176.2 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
176.3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
176.4 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
176.5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
176.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
186.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
186.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
186.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
186.5 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
186.6 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
186.7 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
186.8 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
290.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
290.2 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
290.3 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
290.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
290.5 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
290.6 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
290.7 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
290.8 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
