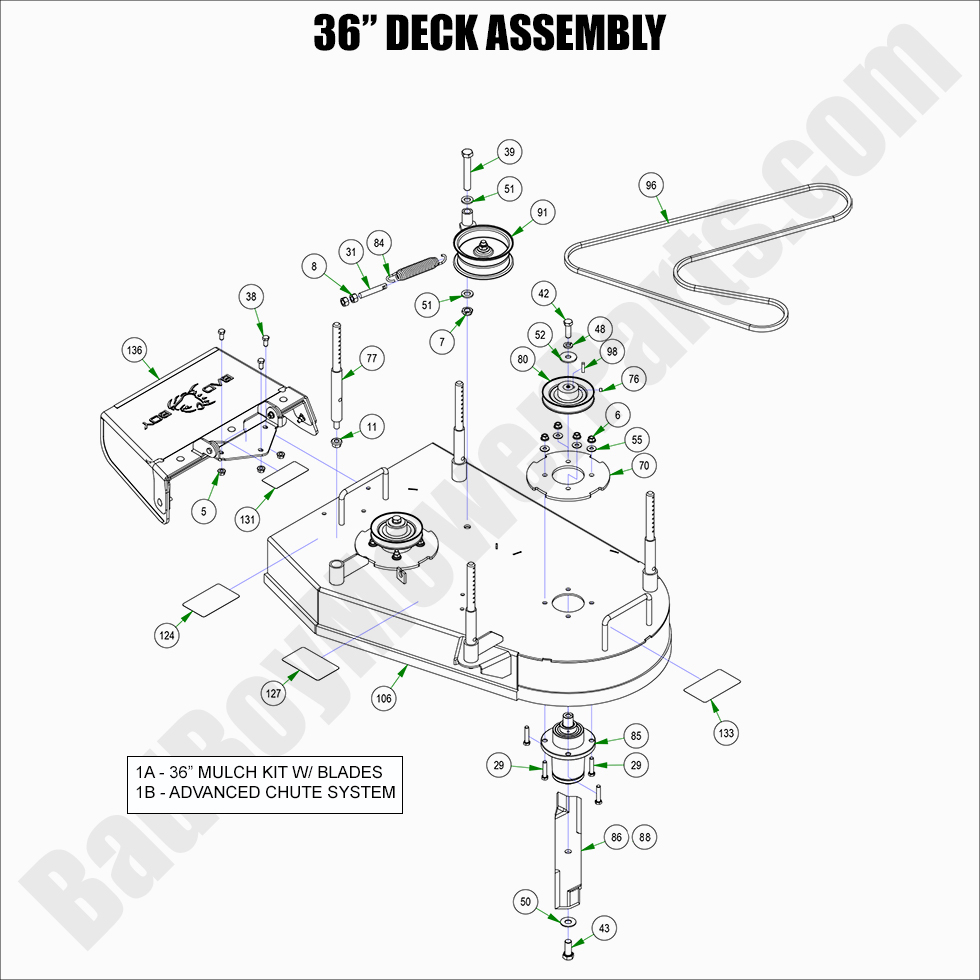

2022 Walk Behind - 36" Deck Assembly

2022 Walk Behind - 36" Deck Assembly

If you need to replace or repair your 2022 Walk Behind 36" Deck Assembly, Bad Boy Mower Parts offers the perfect solution. With a broad selection of Bad Boy Lawn Mower Parts, you can quickly find the right deck assembly parts to get your mower back in working order. Our website, BadBoyMowerParts.com, makes it easy to browse and select the right components for your mower model. The Bad Boy Parts Online platform ensures you can shop for parts with ease and confidence. The Bad Boy Mower Part diagrams on the site help you visualize the parts, making the ordering process seamless. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while purchasing high-quality parts. Keep your 2022 Walk Behind mower in top shape with a reliable deck assembly from Bad Boy Mower Parts.

Bad Boy Mower Parts Lookup

2022 Walk Behind - 36" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0036-00 210-0036-00 - 36" Walk Behind Mulch Kit w/Blades
$239.99
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
5 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
29 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
31 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
38 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
42 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
43 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
50 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
51 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
52 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
55 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
70 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
76 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
77 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
80 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
84 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
85 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
86 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
88 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
91 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
96 041-8054-00 041-8054-00 - Deck Belt 2020-Newer Revolt and Walk Behind (See Models Used On For Details)
$80.24
98 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
106 060-3600-00 060-3600-00 - 36" Welded Assembly
$599.99
124 091-0023-00 091-0023-00 - 36" Deck Height Adjustment Decal
$20.32
127 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
131 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
133 091-3601-18 091-3601-18 - 2018-2022 36" Deck Decal
$8.79
136 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
