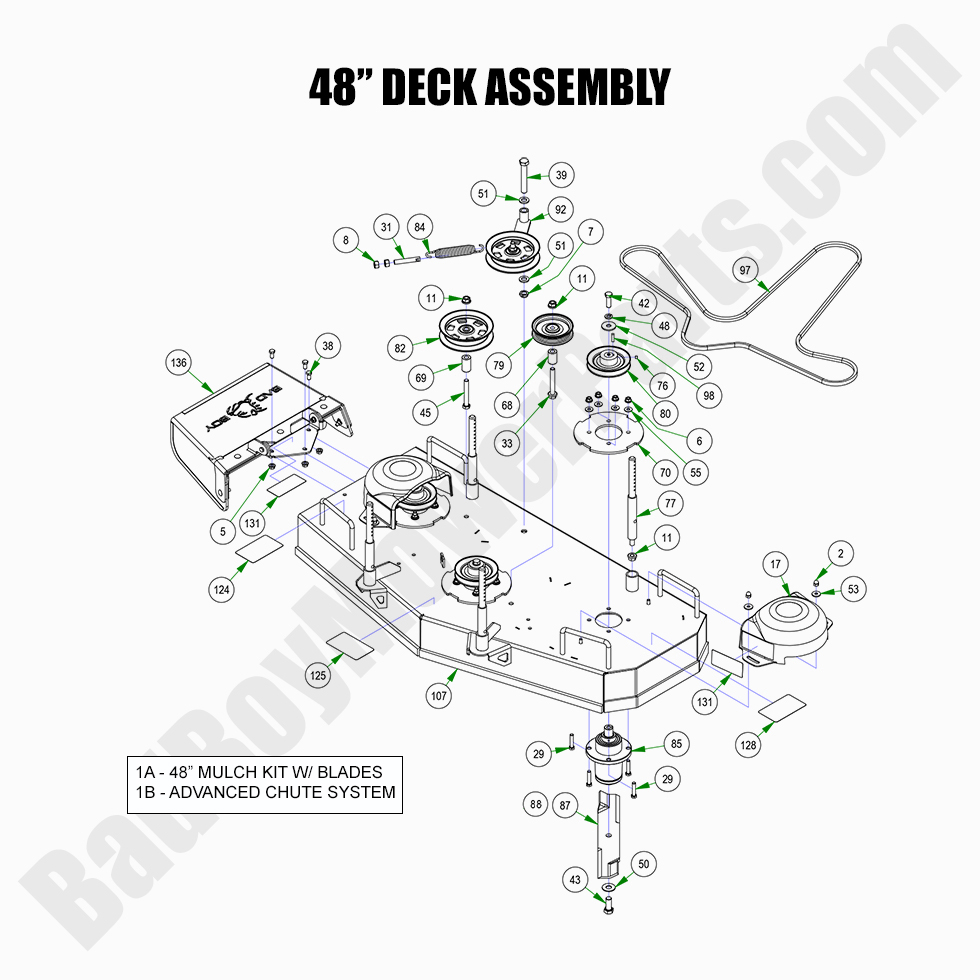

2022 Walk Behind - 48" Deck Assembly

2022 Walk Behind - 48" Deck Assembly

The 2022 Walk Behind 48" Deck Assembly is a key component for your mower’s efficiency and precision. At Bad Boy Mower Parts, we carry a full range of Bad Boy Lawn Mower Parts that ensure you can maintain and replace this important assembly with ease. Our website, BadBoyMowerParts.com, offers everything you need for your 2022 Walk Behind mower, from the 48" deck assembly to smaller related components. By shopping Bad Boy Parts Online, you can find parts with detailed Bad Boy Mower Part diagrams for a precise fit. No more guesswork when it comes to repairs! Additionally, enjoy the convenience of Free Shipping On Orders Over $100, helping you save money while keeping your mower in peak working condition. With Bad Boy Mower Parts, you can trust that you’re getting the highest quality parts for your mower’s deck assembly.

Bad Boy Mower Parts Lookup

2022 Walk Behind - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
5 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
29 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
31 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
33 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
38 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
42 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
43 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
45 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
50 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
51 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
52 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
53 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
55 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
68 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
69 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
70 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
76 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
77 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
79 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
80 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
82 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
84 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
85 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
87 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
88 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
92 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
97 041-8055-00 041-8055-00 - 48" Walk Behind Deck Belt
$85.59
98 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
107 060-3648-00 060-3648-00 - 2020 48" Walkbehind Deck Assembly-Painte No Longer Available
Obsolete.
124 091-0023-00 091-0023-00 - 36" Deck Height Adjustment Decal
$20.32
125 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
128 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
131 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
136 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
