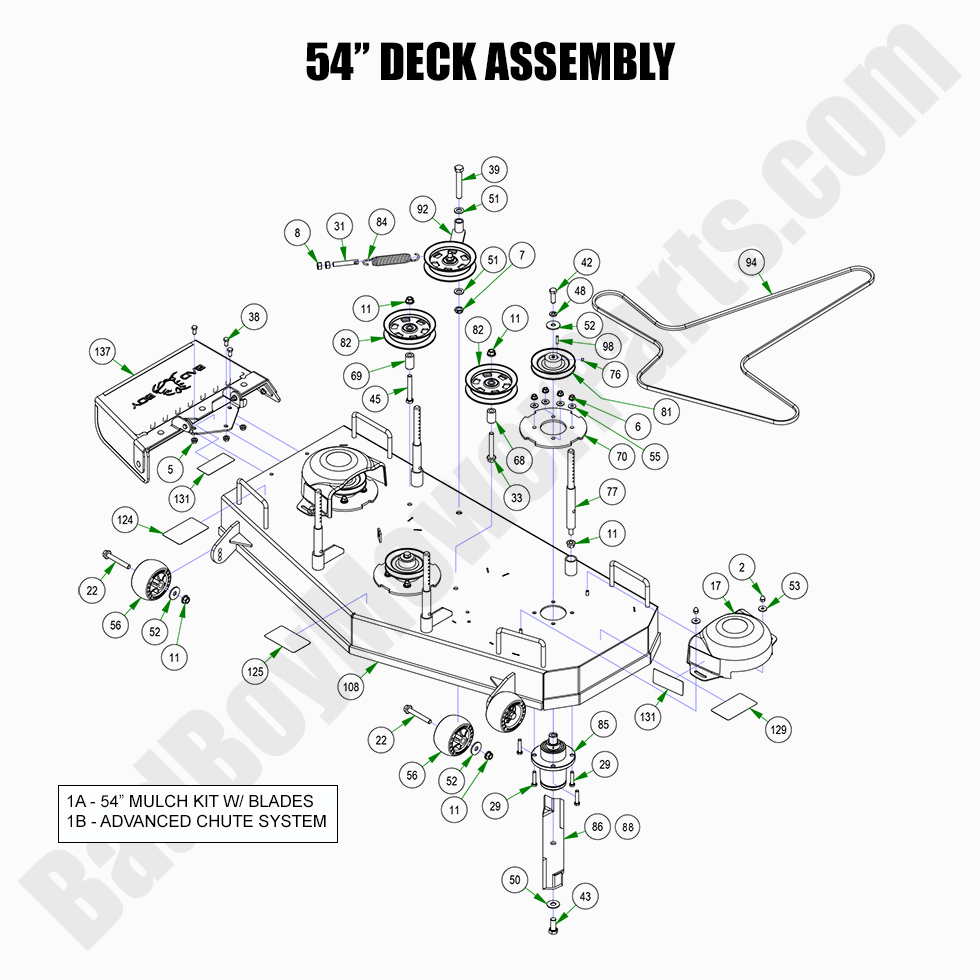

2022 Walk Behind - 54" Deck Assembly

2022 Walk Behind - 54" Deck Assembly

For those with a 2022 Walk Behind 54" Deck Assembly, ensuring it’s in perfect working condition is key to achieving optimal performance. Bad Boy Mower Parts provides high-quality replacement parts specifically for the 54" deck assembly, helping you maintain a smooth mowing experience. Our website, BadBoyMowerParts.com, offers an extensive selection of Bad Boy Lawn Mower Parts tailored to fit your mower. With Bad Boy Parts Online, you can browse and select your required parts with ease. The Bad Boy Mower Part diagrams guide you through the selection process, making sure you order exactly what you need. Plus, with Free Shipping On Orders Over $100, you can get all the parts you need delivered at no extra cost. Upgrade or repair your 2022 Walk Behind mower’s deck assembly with premium parts from Bad Boy Mower Parts.

Bad Boy Mower Parts Lookup

2022 Walk Behind - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
5 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
11 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
17 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
22 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
29 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S () ZC
$3.29
31 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
33 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
38 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
39 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
42 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
43 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
45 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
48 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
50 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
51 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
52 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
53 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
55 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
56 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
68 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
69 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
70 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
76 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
77 031-0023-00 031-0023-00 - 2017-2022 Walk Behind Deck Hanger
$47.03
81 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
82 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
84 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
85 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
86 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
88 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
92 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
94 041-6027-00 041-6027-00 - B128 Deck Belt for 2010-2016 48" MZ & MZ Magnum & 2020 - 2023 Walk-Behind 54"
$80.24
98 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
124 091-0023-00 091-0023-00 - 36" Deck Height Adjustment Decal
$20.32
125 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
129 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
131 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
137 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
