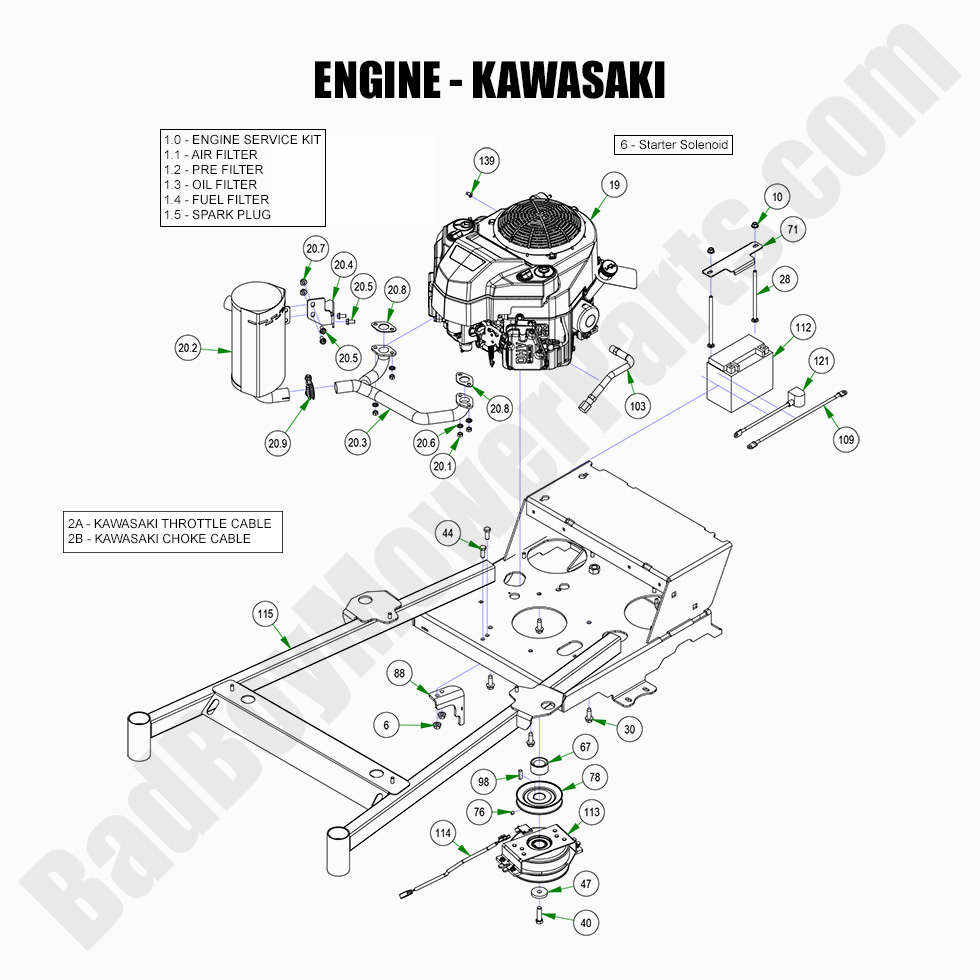

2022 Walk Behind - Engine - Kawasaki

2022 Walk Behind - Engine - Kawasaki

If your 2022 Walk Behind Engine - Kawasaki requires repairs or replacement parts, Bad Boy Mower Parts has you covered. We offer a wide range of Bad Boy Lawn Mower Parts specifically designed for Kawasaki engines, ensuring optimal performance. Whether you need filters, spark plugs, or other engine components, our website, BadBoyMowerParts.com, makes it easy to find what you need. With Bad Boy Parts Online, you can shop for parts with confidence. Detailed Bad Boy Mower Part diagrams help you easily identify the right engine parts for your mower model. Plus, enjoy the convenience of Free Shipping On Orders Over $100, ensuring you can get your parts delivered at no extra cost. Trust Bad Boy Mower Parts to provide high-quality Kawasaki engine parts for your 2022 Walk Behind mower and keep it running efficiently.

Bad Boy Mower Parts Lookup

2022 Walk Behind - Engine - Kawasaki
  Position Number SKU Product Title Price
1.0 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
1.0 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1.1 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
1.2 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
1.3 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
1.5 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
6 108-0001-00 108-0001-00 - Solenoid
$29.41
10 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
19 015-0087-00 015-0087-00 - Kawasaki 18.5HP FS600 Electric Start
$3099.00
20.1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
20.2 015-0543-01 015-0543-01 - Exhaust Only for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$106.99
20.3 015-0543-02 015-0543-02 - Exhaust Pipe for 2018-2022 Kawasaki Walk Behind, 2024 Revolt SD & Raider
$64.19
20.4 015-0543-03 015-0543-03 - Exhaust Bracket for 2018-2022 Kawasaki Walk Behind
$10.99
20.5 015-0543-04 015-0543-04 - Exhaust Flanged Bolt (See Models Used On For Details)
$2.99
20.6 015-0543-05 015-0543-05 - Exhaust Washer Spring for Kawasaki (See Models Used On For Details)
$2.99
20.8 015-0543-07 015-0543-07 - Exhaust Gasket for 2018-2024 Kawasaki Walk Behind
$3.29
20.9 015-0543-08 015-0543-08 - Exhaust Band for 2018-2022 Kawasaki Walk Behind
$13.90
28 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
30 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
40 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
44 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
47 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
67 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
71 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
76 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
78 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
88 039-1220-00 039-1220-00 - Warner Clutch Bracket For MZ and Magnums
$12.63
98 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
103 051-5408-00 051-5408-00 16" Kawasaki Oil Drain
$42.79
109 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
113 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
114 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
121 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
