2022 Walk Behind - Podium Controls

2022 Walk Behind - Podium Controls

The 2022 Walk Behind Podium Controls play a pivotal role in ensuring smooth operation of your mower. Bad Boy Mower Parts offers an array of Bad Boy Lawn Mower Parts to repair or upgrade your control system. Whether you need a new lever or other key control components, you can easily find what you're looking for on our website, BadBoyMowerParts.com. Bad Boy Parts Online allows you to shop with confidence, knowing that each part is designed to fit your mower model perfectly. Our Bad Boy Mower Part diagrams make it easy to understand the parts you need and streamline the shopping process. Plus, you can take advantage of Free Shipping On Orders Over $100, making it affordable to get everything you need for your 2022 Walk Behind mower. Keep your mower in optimal working condition with premium podium control parts from Bad Boy Mower Parts.

Bad Boy Mower Parts Lookup

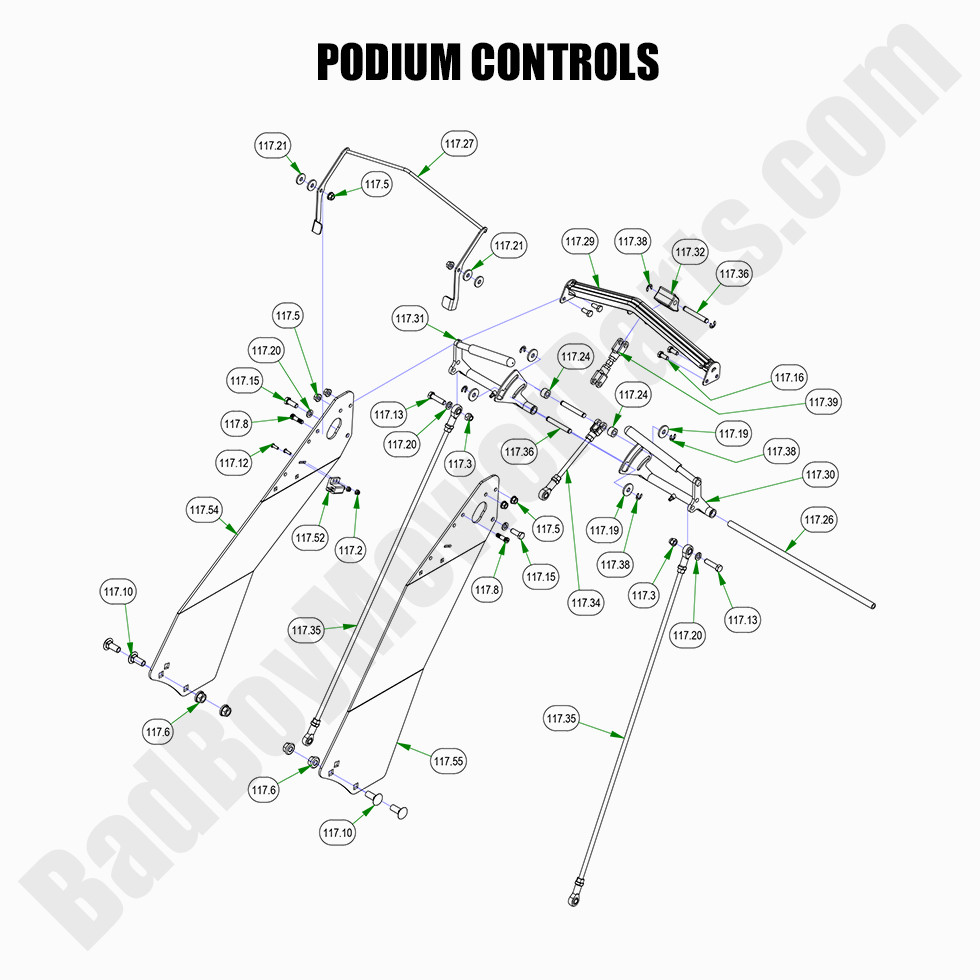

2022 Walk Behind - Podium Controls
  Position Number SKU Product Title Price
117.2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
117.3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
117.5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
117.6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
117.8 018-0076-00 018-0076-00 - 18-8 Stainless Steel Sholder Screw
$23.53
117.10 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
117.12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
117.13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
117.15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
117.16 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
117.19 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
117.20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
117.21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
117.24 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
117.26 028-0009-00 028-0009-00 - Walk Behind & Raider Control Pivot Rod
$31.17
117.27 028-0043-00 028-0043-00 - 2020 Walk-Behind Presence-Weldment
$21.39
117.29 031-0039-70 031-0039-70 - 2020-2022 Walkbehind Overmolded Bolt on Handle
$64.19
117.30 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
117.31 031-0043-00 031-0043-00 - Walk-Behind & Raider Control Lever Assy-Right
$42.58
117.32 031-0047-00 031-0047-00 - Walk-Behind Neutral Lever
$32.09
117.34 035-0002-98 035-0002-98 - 2017-2024 Walk Behind Speed Control Rod Assembly
$38.47
117.35 035-0007-98 035-0007-98 - Walk-Behind Push Rod Assembly
$42.79
117.36 035-0008-00 035-0008-00 - Walk-Behind Control Pin
$32.09
117.38 044-2018-00 044-2018-00 - 3/8 E Clip
$2.99
117.39 047-9000-00 047-9000-00 - Adjustable Yoke Male/Female (See Models Used On For Details)
$14.97
117.52 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
