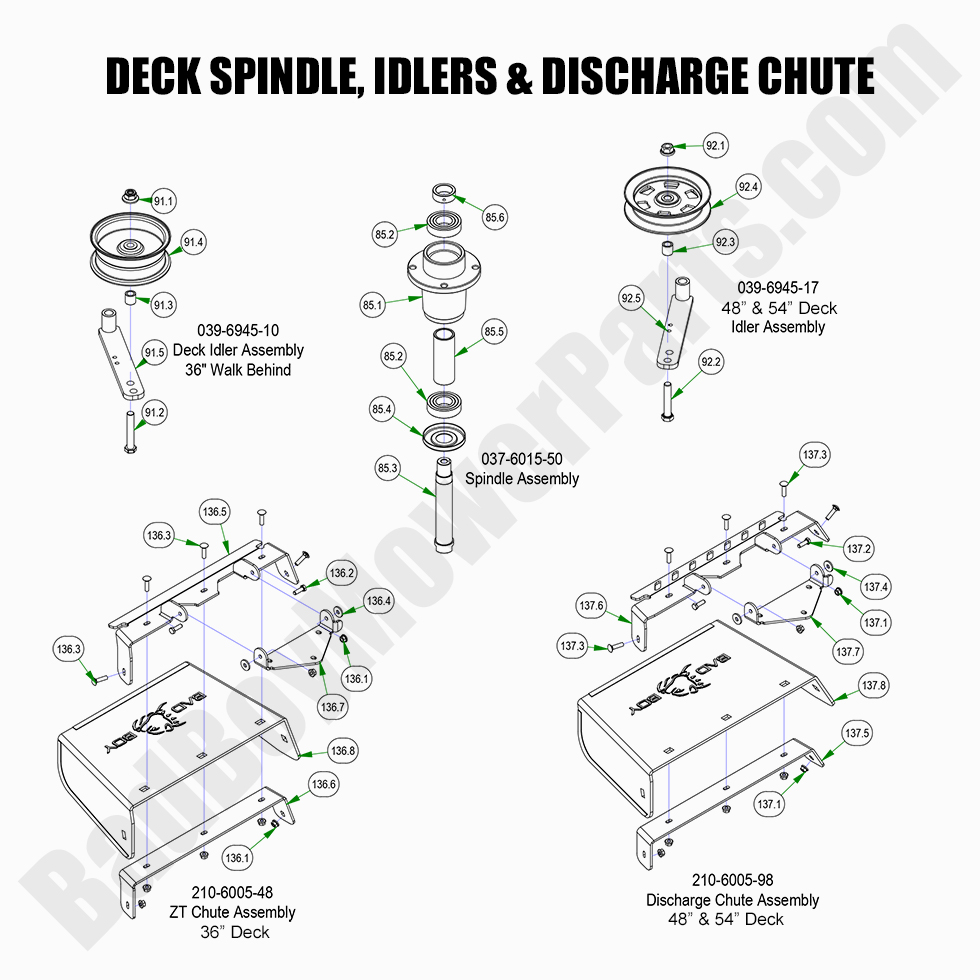

2022 Walk Behind - Spindle, Deck Idler & Chute

2022 Walk Behind - Spindle, Deck Idler & Chute

The 2022 Walk Behind Spindle, Deck Idler & Chute are critical for ensuring the deck operates smoothly and efficiently. Bad Boy Mower Parts offers a full range of Bad Boy Lawn Mower Parts for repairing or replacing these components. Whether you're replacing a worn-out spindle or need a new deck idler or chute, you can find exactly what you need at BadBoyMowerParts.com. Bad Boy Parts Online offers a seamless shopping experience, allowing you to find all necessary parts for your mower. The Bad Boy Mower Part diagrams help you identify the components you need with ease. Best of all, enjoy Free Shipping On Orders Over $100, ensuring you can get everything you need for your 2022 Walk Behind mower at an affordable price. Trust Bad Boy Mower Parts for top-quality replacement parts that keep your mower's deck system working efficiently.

Bad Boy Mower Parts Lookup

2022 Walk Behind - Spindle, Deck Idler & Chute
  Position Number SKU Product Title Price
1 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
2 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
3 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
4 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
5 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
85.1 037-6017-50 037-6017-50 - Compact Outlaw / Maverick / Walkbehind / ZT & 2007 Pup Aluminum Spindle Housing (obsolete)
use part #037-6015-50
$199.99
85.2 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
85.3 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
85.4 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
85.5 037-8050-00 037-8050-00 - Tube Spacer For Spindle Shaft - Small Spindle
$8.69
85.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
91.1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
91.2 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
91.3 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
91.4 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
91.5 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
92.2 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
92.4 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
136.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
136.2 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
136.3 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
136.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
136.6 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
136.7 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
136.8 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
137.5 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
