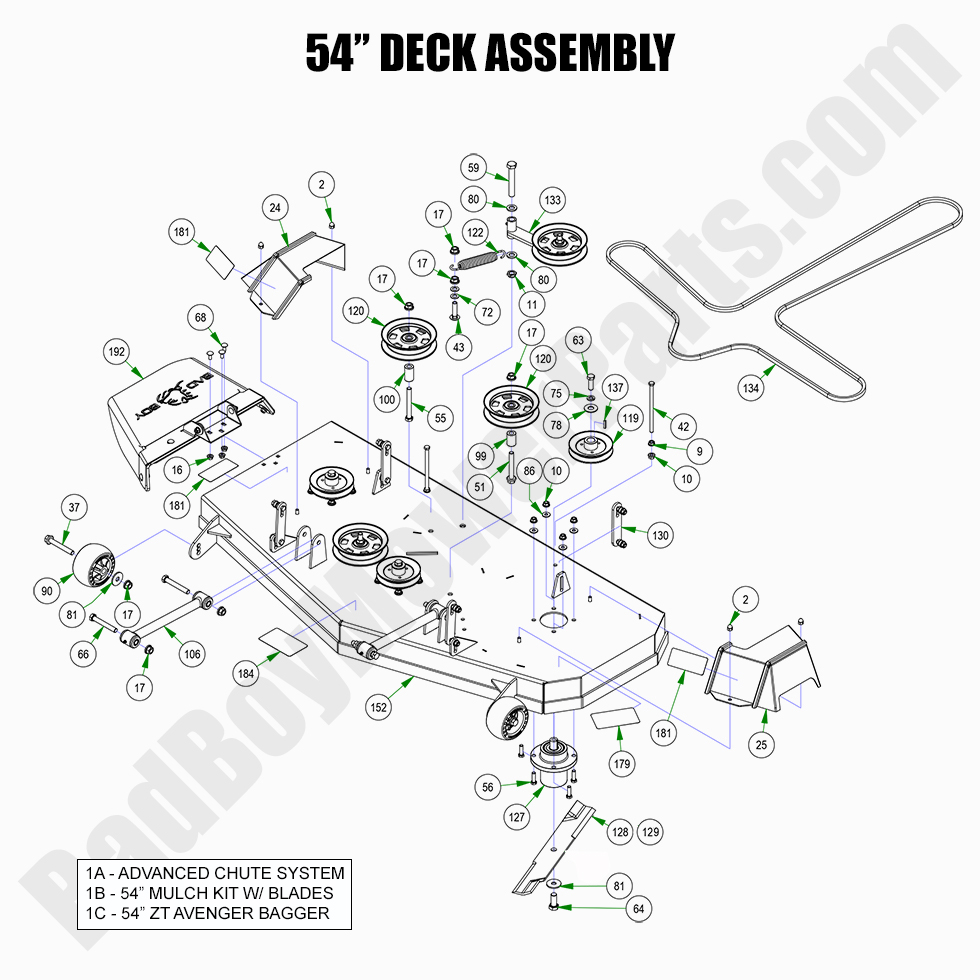

2022 ZT Avenger - 54" Deck Assembly

2022 ZT Avenger - 54" Deck Assembly

The 2022 ZT Avenger 54" Deck Assembly is engineered for durability and superior cutting performance. For anyone in need of deck replacement or maintenance, BadBoyMowerParts.com provides access to high-quality Bad Boy Mower Parts. Our easy-to-use Bad Boy Mower Part diagrams help you quickly identify the parts required to keep your deck functioning optimally. Whether you're replacing a worn blade, spindle, or other deck component, we have a wide selection of Bad Boy Lawn Mower Parts in stock. Shopping for Bad Boy Parts Online at our site is fast and secure, and with Free Shipping On Orders Over $100, you can rest assured that you’re getting the best deals and timely delivery.

Bad Boy Mower Parts Lookup

2022 ZT Avenger - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0154-50 210-0154-50 - 2017-2025 54" MZ & 54" Avenger Mulch Kit w/Blades
$318.45
1C 088-1818-00 088-1818-00 - 54" MZ Magnum & 54" Avenger Bagger (See Models Used On For Details)
$2399.99
2 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
9 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
11 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
25 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
37 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
42 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
43 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
51 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
55 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
56 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
59 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
63 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
64 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
66 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
68 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
72 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
75 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
78 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
80 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
81 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
86 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
90 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
99 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
100 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
106 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
119 033-4890-00 033-4890-00 - Deck Pulley 2013-2025 54" MZ Magnum, 2020-2025 54" ZT Avenger
$31.17
120 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
122 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
127 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
128 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
129 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
130 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
133 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
134 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
137 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
152 060-2417-00 060-2417-00 - 2017-2022 54" MZ Magnum Deck Shell Only
$999.99
179 091-0904-18 091-0904-18 - 54" Deck Decal (See Models Used On For Details)
$6.41
181 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
184 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
192 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
