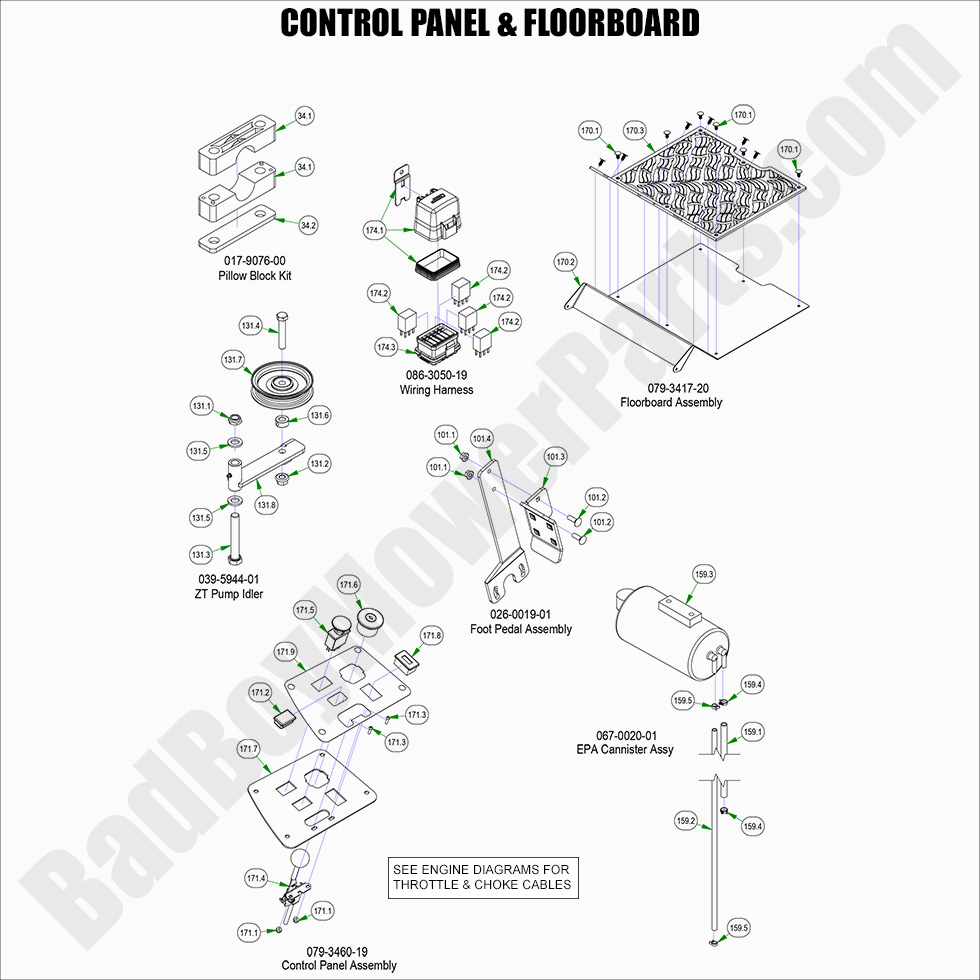

2022 ZT Avenger - Control Panel & Floorboard

2022 ZT Avenger - Control Panel & Floorboard

The 2022 ZT Avenger Control Panel & Floorboard assembly plays an important role in ensuring smooth operation and comfort while mowing. Whether you're replacing worn-out pedals or fixing a faulty control panel, our Bad Boy Mower Parts selection has you covered. Our Bad Boy Mower Part diagrams provide easy-to-follow instructions, helping you find the parts that suit your needs. You’ll find high-quality Bad Boy Lawn Mower Parts designed for the 2022 ZT Avenger, including the control panel, floorboard, and related components. When shopping Bad Boy Parts Online, you can take advantage of Free Shipping On Orders Over $100, ensuring quick delivery and savings.

Bad Boy Mower Parts Lookup

2022 ZT Avenger - Control Panel & Floorboard
  Position Number SKU Product Title Price
34.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
34.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
34.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
101.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
101.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
101.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
101.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
101.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
131.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
131.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
131.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
131.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
131.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
131.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
131.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
131.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
131.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
159.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
159.1 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
159.2 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
159.3 067-0020-00 067-0020-00 - Carbon Canister
$62.40
159.4 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
159.5 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
170.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
170.2 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
170.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
171.0 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
171.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
171.2 018-1040-00 018-1040-00 - Light Plug
$2.99
171.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
171.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
171.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
171.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
171.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
171.9 091-0338-22 091-0338-22 - Control Panel Decal (See Models Used On For Details)
$17.11
174.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
174.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
174.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
