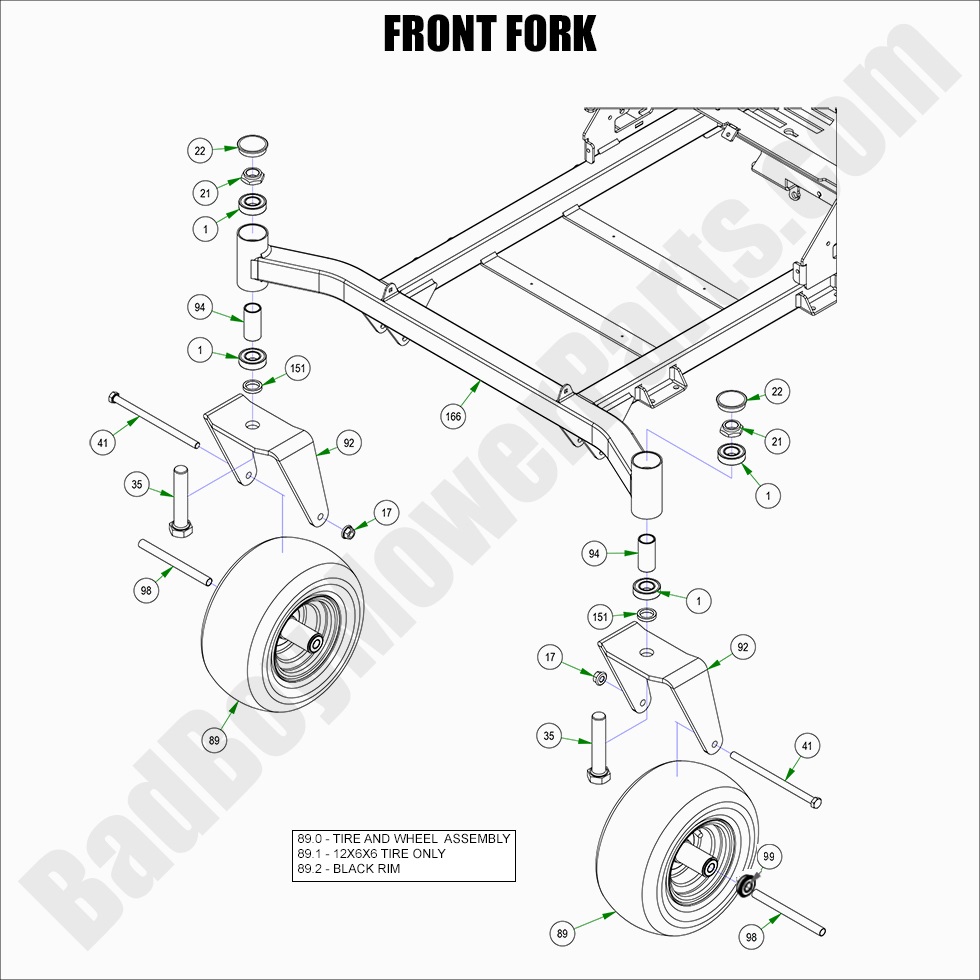

2022 ZT Avenger - Front Fork

2022 ZT Avenger - Front Fork

The 2022 ZT Avenger Front Fork is essential for providing stable steering and smooth operation on uneven terrain. At BadBoyMowerParts.com, you’ll find a wide range of Bad Boy Mower Parts designed to keep your front fork in top condition. Whether you're replacing worn bearings or the fork itself, our Bad Boy Mower Part diagrams will guide you to the right parts for your 2022 ZT Avenger. We offer a variety of Bad Boy Lawn Mower Parts, all available online for your convenience. Plus, when you shop for Bad Boy Parts Online, you can enjoy Free Shipping On Orders Over $100, making it easier to maintain your mower without the extra cost.

Bad Boy Mower Parts Lookup

2022 ZT Avenger - Front Fork
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
35 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
41 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
89.0 022-0007-00 022-0007-00 12X6X6 Black Wheel Assembly
$139.99
89.1 022-0010-00 022-0010-00 - 12x6x6 Front Tire
$78.10
89.2 022-0009-00 022-0009-00 - 6 x 4.50 Black Wheel (See Models Used On For Details)
$85.27
92 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
94 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
98 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
99 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
151 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
