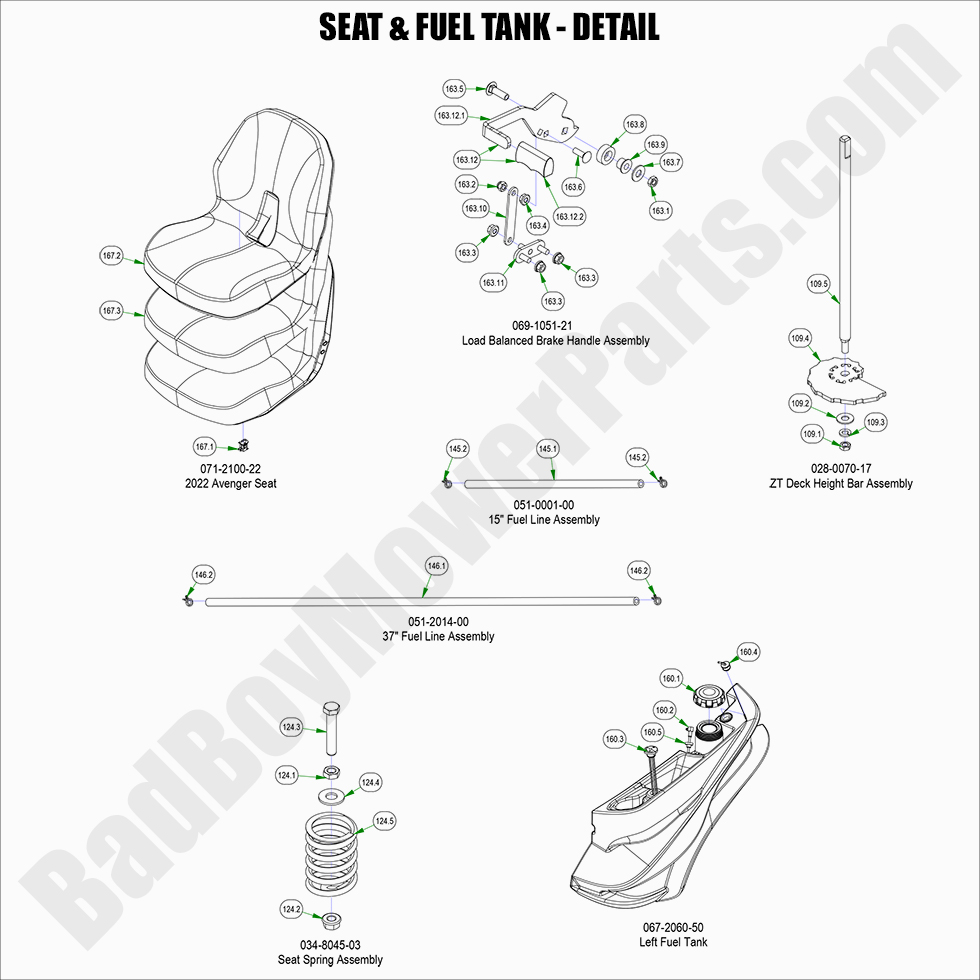

2022 ZT Avenger - Seat & Fuel Tank - Detail

2022 ZT Avenger - Seat & Fuel Tank - Detail

The 2022 ZT Avenger Seat & Fuel Tank - Detail assembly plays a critical role in both the comfort and functionality of your mower. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts to help you maintain or replace your seat and fuel tank components. Using our Bad Boy Mower Part diagrams, you can easily find the right seat and fuel tank for your 2022 ZT Avenger. We stock a wide range of Bad Boy Lawn Mower Parts to ensure that every detail of your mower is in top working condition. Plus, shopping for Bad Boy Parts Online is convenient, and you can enjoy Free Shipping On Orders Over $100 on your purchase.

Bad Boy Mower Parts Lookup

2022 ZT Avenger - Seat & Fuel Tank - Detail
  Position Number SKU Product Title Price
109.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
109.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
109.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
109.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
109.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
109 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
124.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
124.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
124.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
124.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
124 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
145.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
145.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
145 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
146.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
146 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
160.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
160.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
160.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
160.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
160.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
160 067-2060-50 067-2060-50 - Left Fuel Tank (See Models Used On For Details)
$349.99
163.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
163.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
163.3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
163.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
163.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
163.6 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
163.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
163.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
163.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
163.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
163.12.1 069-3000-00 069-3000-00 - Switch Relocation Brake Handle No Longer Available
Obsolete.
163.12.2 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45
163.12 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
167.2 071-2108-00 071-2108-00 - Bad Boy SK130 Avenger Cover for 071-2100-22
$119.99
167.3 071-2110-00 071-2110-00 - SK130 Water Proofing Protection for 071-2100-22 No Longer Available
Obsolete.
167 071-2100-22 071-2100-22 - 2022-2024 Avenger & 2025 MZ Magnum Seat
$559.99
