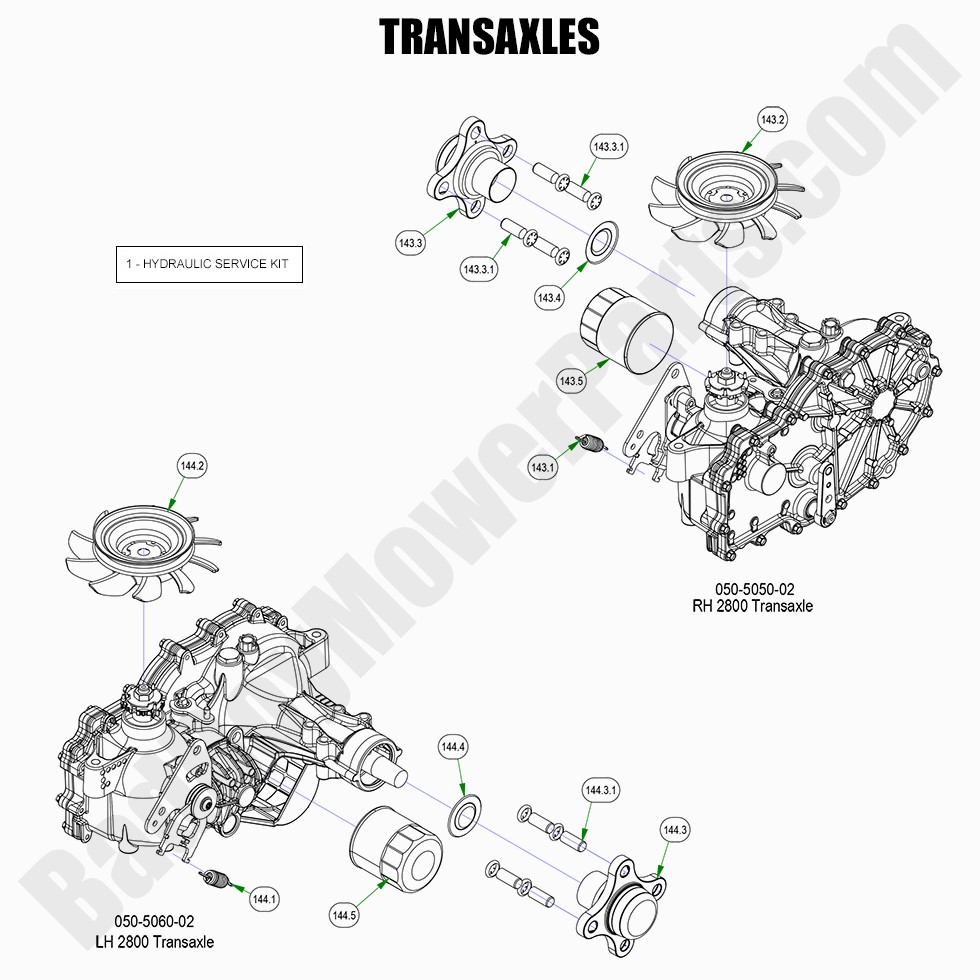

Click Image to Change Diagram
The 2022 ZT Avenger Transaxles are essential for transmitting power from the engine to the wheels, enabling your mower to operate efficiently. If you need replacement transaxles, BadBoyMowerParts.com has a broad selection of Bad Boy Mower Parts designed to fit your mower model. Our Bad Boy Mower Part diagrams will help you pinpoint the correct transaxle for the 2022 ZT Avenger. We offer high-quality Bad Boy Lawn Mower Parts for all your mower needs. By ordering Bad Boy Parts Online, you can shop at your convenience and enjoy Free Shipping On Orders Over $100, ensuring that your transaxle replacement is both affordable and hassle-free.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 085-4051-01 | 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks) |
$125.99
|
||
143.1 | 034-9080-00 | 034-9080-00 - Gold Transaxle Spring |
$14.89
|
||
143.2 | 050-2070-00 | 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit |
$85.17
|
||
143.3.1 | 050-2012-00 | 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs |
$5.61
|
||
143.3 | 050-2076-00 | 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details) |
$90.56
|
||
143.4 | 050-8010-00 | 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800) |
$109.46
|
||
143.5 | 063-1050-00 | 063-1050-00 - ZT Hydraulic Filter |
$22.71
|
||
143 | 050-5050-02 | 050-5050-02 - ZT Avenger Right Transaxle (See Models Used On For Details) |
$699.99
|
||
144 | 050-5060-02 | 050-5060-02 - ZT Avenger Left Transaxle (See Models Used On For Details) |
$699.99
|
