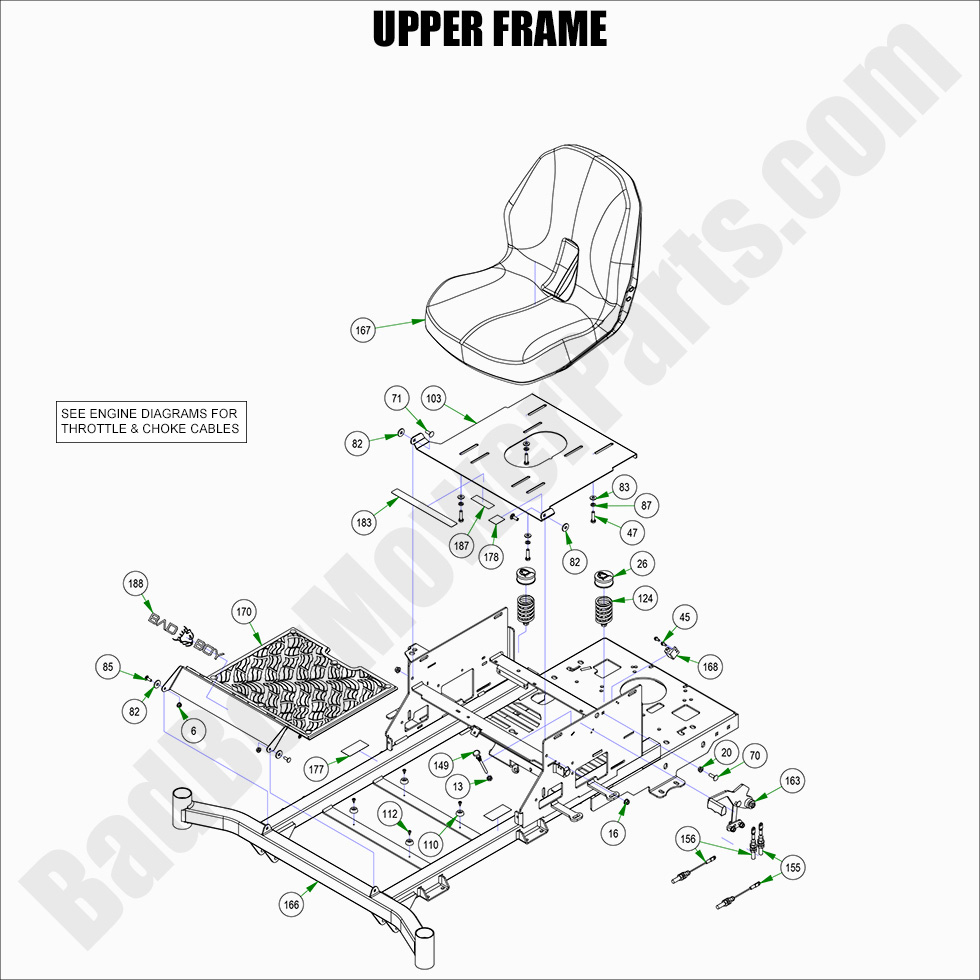

2022 ZT Avenger - Upper Frame

2022 ZT Avenger - Upper Frame

The 2022 ZT Avenger Upper Frame provides structural support for your mower and plays a key role in its overall durability. BadBoyMowerParts.com offers a wide range of Bad Boy Mower Parts that will help you maintain or replace your upper frame. With our Bad Boy Mower Part diagrams, you can easily locate the right parts to keep your mower running smoothly. Whether you're replacing a damaged frame or upgrading certain components, we have the Bad Boy Lawn Mower Parts you need. Shop for Bad Boy Parts Online quickly and conveniently, and enjoy Free Shipping On Orders Over $100, making it easier and more affordable to keep your mower in top shape.

Bad Boy Mower Parts Lookup

2022 ZT Avenger - Upper Frame
  Position Number SKU Product Title Price
6 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
26 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
45 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
47 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 Hex Bolt
$2.99
70 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
71 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
82 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
83 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
85 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
87 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
103 026-2022-00 026-2022-00 - Seat Plate (See Models Used On For Detail)
$119.99
110 029-4010-00 029-4010-00 - Button Bumper
$2.99
112 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
124 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
155 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
156 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
163 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
167.2 071-2108-00 071-2108-00 - Bad Boy SK130 Avenger Cover for 071-2100-22
$119.99
167.3 071-2110-00 071-2110-00 - SK130 Water Proofing Protection for 071-2100-22 No Longer Available
Obsolete.
167 071-2100-22 071-2100-22 - 2022-2024 Avenger & 2025 MZ Magnum Seat
$559.99
168 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
177 091-0214-00 091-0214-00 - LH/RH Steering Control Decal (See Models Used On For Details)
$9.34
178 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76
183 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
188 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
