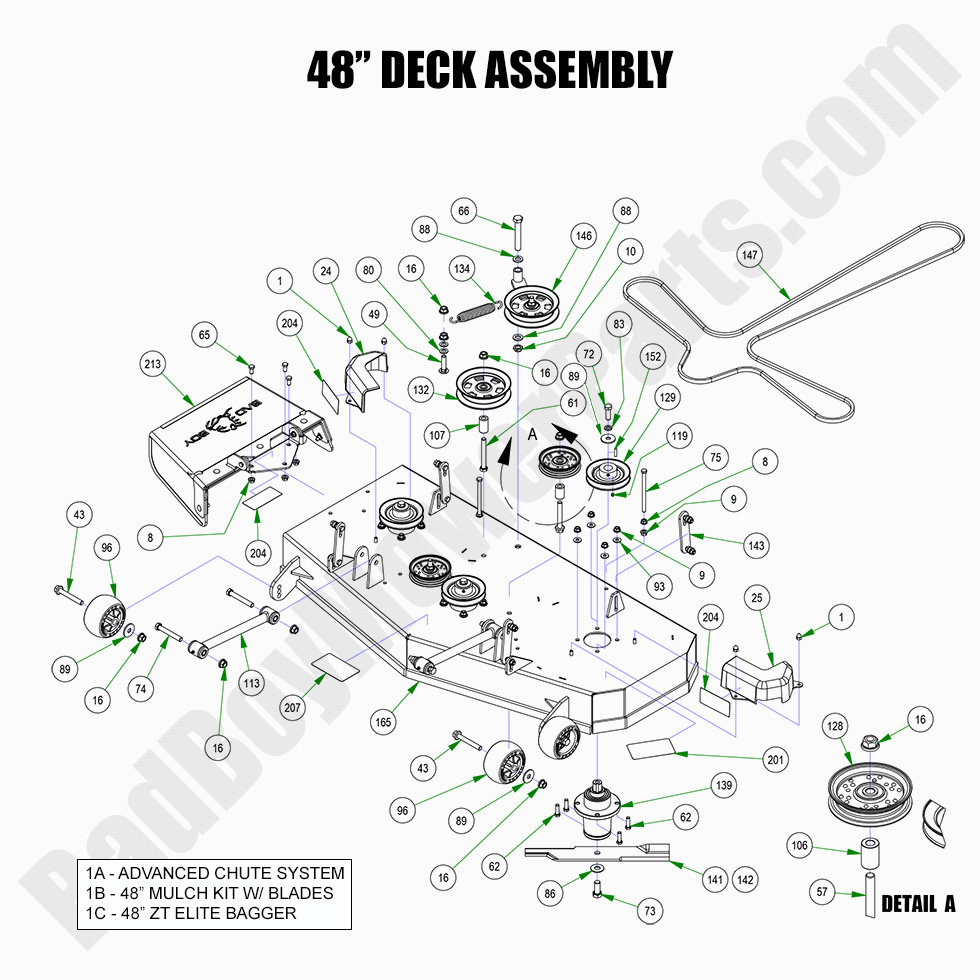

2022 ZT Elite - 48" Deck Assembly

2022 ZT Elite - 48" Deck Assembly

The 2022 ZT Elite 48" Deck Assembly is one of the most important parts of your mower, as it plays a critical role in delivering the perfect cut. At BadBoyMowerParts.com, we offer the complete deck assembly and individual parts that are compatible with your 2022 ZT Elite. With our easy-to-understand Bad Boy Mower Part diagrams, finding the right components for your deck assembly has never been simpler. We have a wide range of Bad Boy Mower Parts to help you keep your deck functioning properly, from pulleys to belt guards. Whether you're replacing worn-out components or upgrading your mower, our selection of Bad Boy Lawn Mower Parts ensures your mower is always in peak condition. Enjoy the convenience of shopping Bad Boy Parts Online and get Free Shipping On Orders Over $100. Keep your 2022 ZT Elite’s deck assembly in top form with high-quality, affordable parts.

Bad Boy Mower Parts Lookup

2022 ZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
24 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
25 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
43 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
49 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
57 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
61 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
62 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
65 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
66 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
72 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
73 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
74 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
75 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
80 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
83 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
86 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
88 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
89 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
93 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
106 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
107 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
113 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
128 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
129 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
132 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
134 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
139 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
141 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
142 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
143 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
146 039-6945-18 039-6945-18 - Deck Idler Assembly (See Models Used On For Detail)
$70.97
147 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
152 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81

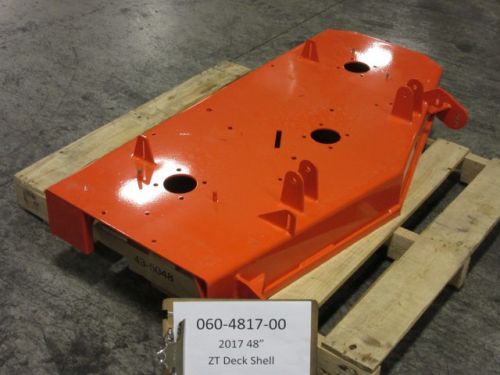

165 060-4817-00 060-4817-00 - 48" Deck Shell (See Models Used On For Details)
$1059.99
201 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
204 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
207 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
213 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
