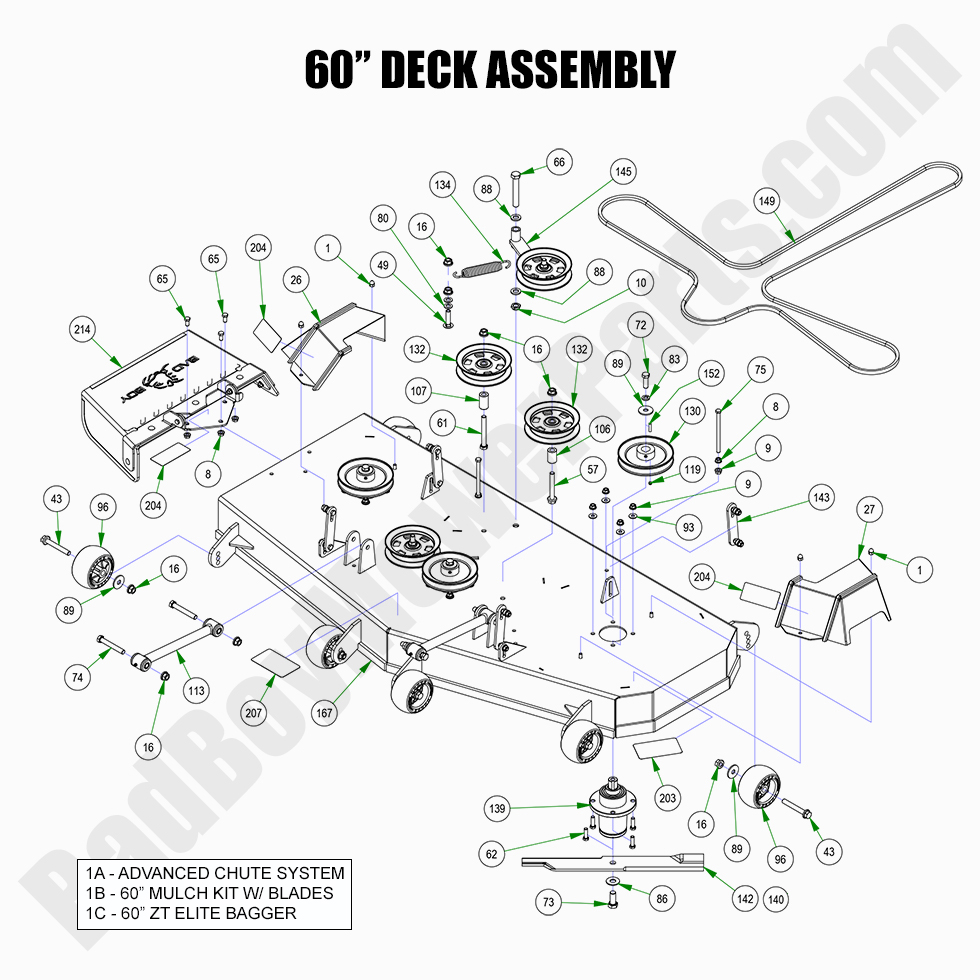

2022 ZT Elite - 60" Deck Assembly

2022 ZT Elite - 60" Deck Assembly

The 2022 ZT Elite 60" Deck Assembly is ideal for larger lawns, providing increased efficiency and a smoother cut. At BadBoyMowerParts.com, we carry a full range of replacement parts for this deck assembly to keep your mower operating at peak performance. Our comprehensive Bad Boy Mower Part diagrams guide you through the process of identifying and replacing worn-out components. Whether you need Bad Boy Mower Parts like deck spindles or blades, we have all the components for your 60" deck. Explore our Bad Boy Lawn Mower Parts selection to find durable, long-lasting pieces that will extend the life of your mower. With Bad Boy Parts Online, you can easily shop and have your parts delivered. Plus, enjoy Free Shipping On Orders Over $100 on your order. Keep your 2022 ZT Elite’s 60" deck assembly running smoothly with the right parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 ZT Elite - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
8 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
10 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
26 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
27 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
43 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
49 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
57 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
61 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
62 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
65 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
66 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
72 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
73 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
74 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
75 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
80 019-0007-00 019-0007-00 -.517 Square Hole Round Washer
$2.99
83 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
86 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
88 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
89 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
93 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
106 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
107 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
113 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
130 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
132 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
134 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
139 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
140 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
142 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
143 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
145 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
149 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
152 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
167 060-6017-00 060-6017-00 - 60" Deck Shell 2017-2022 ZT & 2018-2022 Maverick
$1399.99
203 091-0905-18 091-0905-18 - 2018-2023 60" Deck Decal
$6.41
204 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
207 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
214 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
