2022 ZT Elite - Engine - Briggs

2022 ZT Elite - Engine - Briggs

For reliable, high-performance operation, the 2022 ZT Elite Engine - Briggs is a top choice for many mower owners. BadBoyMowerParts.com offers an extensive range of Bad Boy Mower Parts specifically designed for the Briggs & Stratton engine in the 2022 ZT Elite. From air filters to spark plugs, we have all the Bad Boy Lawn Mower Parts you need to keep your engine running smoothly. Our detailed Bad Boy Mower Part diagrams make it easy to find and order the exact components for your engine. Shopping Bad Boy Parts Online is convenient, with high-quality, affordable options available. Plus, you’ll enjoy Free Shipping On Orders Over $100, ensuring that maintaining your mower's engine is cost-effective. Keep your 2022 ZT Elite Engine - Briggs performing at its best by investing in the right parts and getting the service you need from a trusted supplier.

Bad Boy Mower Parts Lookup

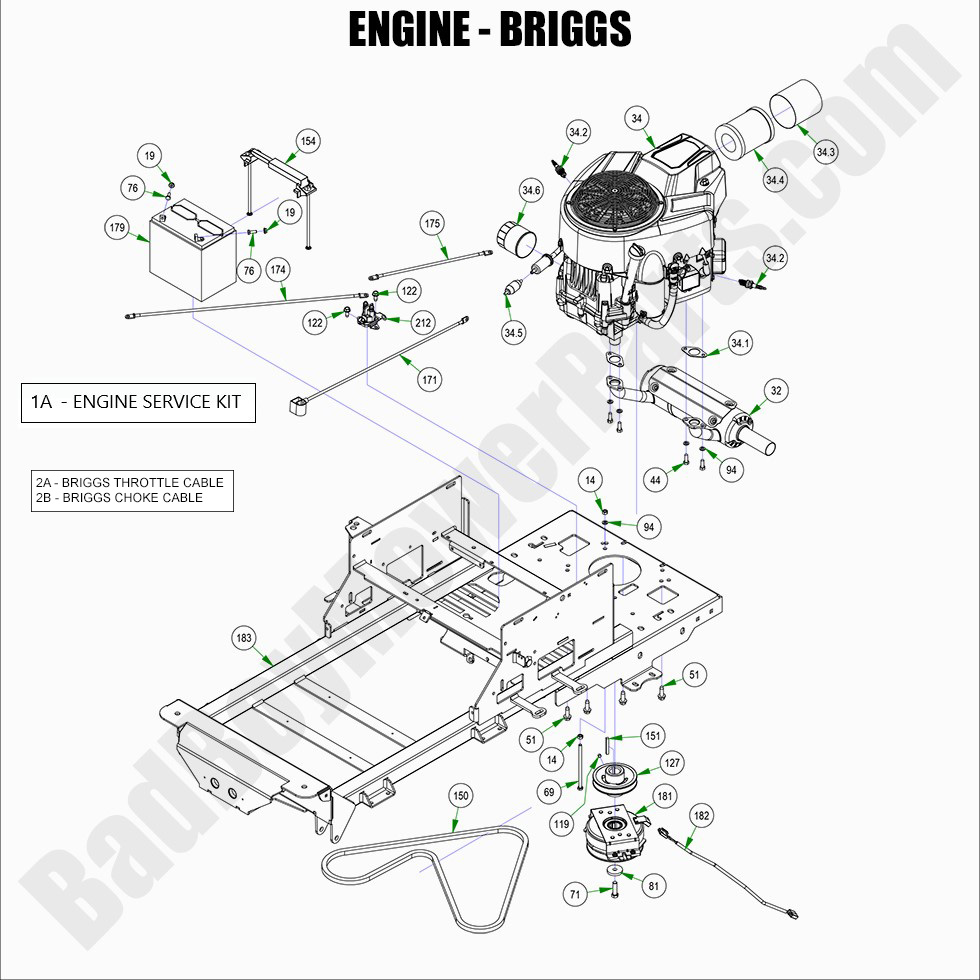

2022 ZT Elite - Engine - Briggs
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
32 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
34.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
34.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
34.3 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
34.4 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$44.93
34.5 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
34.6 063-8018-00 063-8018-00 - Oil Filter
$21.39
34 015-0510-00 015-0510-00 - Vanguard 25hp CXI with out Oil Filter
$2599.99
44 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
51 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
69 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
71 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
76 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
81 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
94 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
127 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
150 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
151 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
154 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
171 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
174 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
175 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
181 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
182 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
183 070-5423-00 070-5423-00 - 2022 Suspension ZT Frame--Painted
$659.99
212 108-0001-00 108-0001-00 - Solenoid
$29.41
