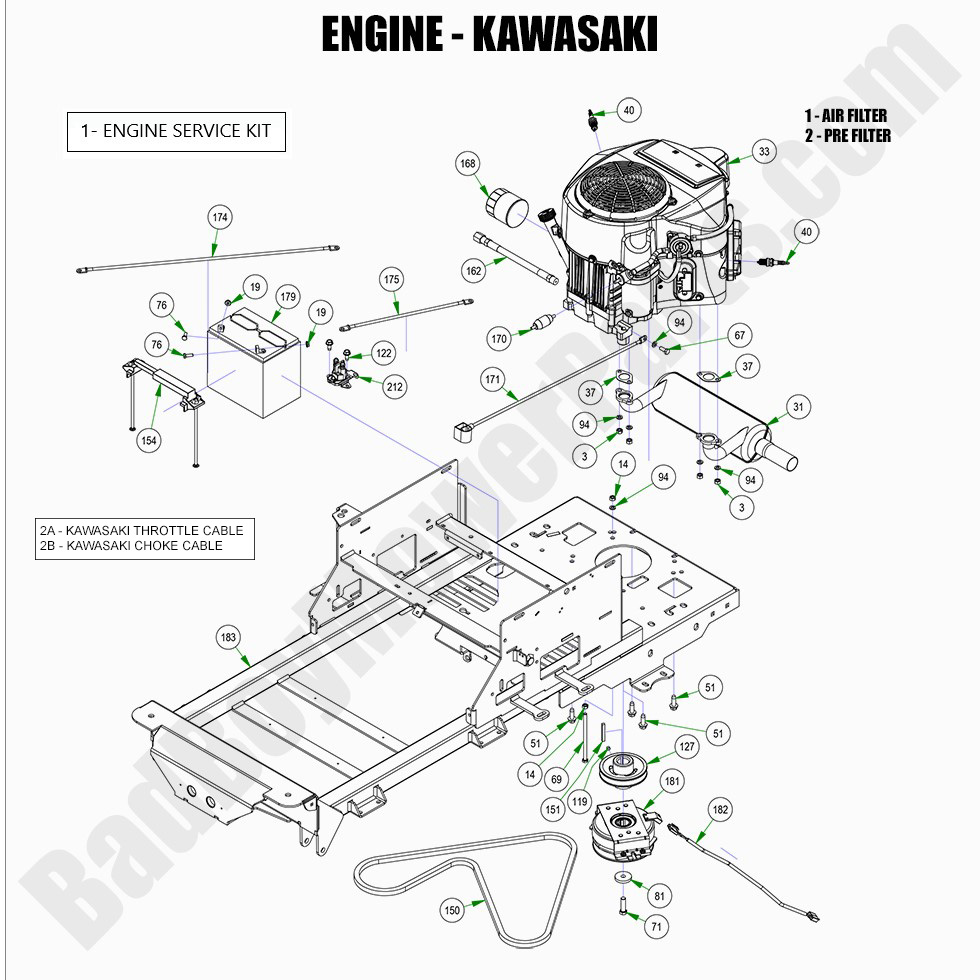

2022 ZT Elite - Engine - Kawasaki

2022 ZT Elite - Engine - Kawasaki

The 2022 ZT Elite Engine - Kawasaki is a reliable powerhouse that delivers excellent performance for your mower. If you need to replace or upgrade any of the engine components, BadBoyMowerParts.com is your go-to source for high-quality Bad Boy Mower Parts. We offer a wide range of Bad Boy Lawn Mower Parts that are compatible with the Kawasaki engine in your 2022 ZT Elite. Our Bad Boy Mower Part diagrams guide you in selecting the correct parts for efficient maintenance. Whether you need filters, gaskets, or other engine components, we’ve got you covered. Enjoy the convenience of shopping Bad Boy Parts Online and get the exact parts you need for your Kawasaki engine. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your engine in top condition. Trust us for all your Kawasaki engine parts and maintenance needs.

Bad Boy Mower Parts Lookup

2022 ZT Elite - Engine - Kawasaki
  Position Number SKU Product Title Price
1 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
1 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
3 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
31 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
33 015-0090-00 015-0090-00 - FR730V-S16 Kawasaki Engine 1.125" Shaft for ZT
$2299.99
37 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
40 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
51 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
67 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
69 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
71 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
76 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
81 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
94 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
127 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
150 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
151 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
154 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
162 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
168 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
170 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
171 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
174 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
175 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
181 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
182 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
212 108-0001-00 108-0001-00 - Solenoid
$29.41
