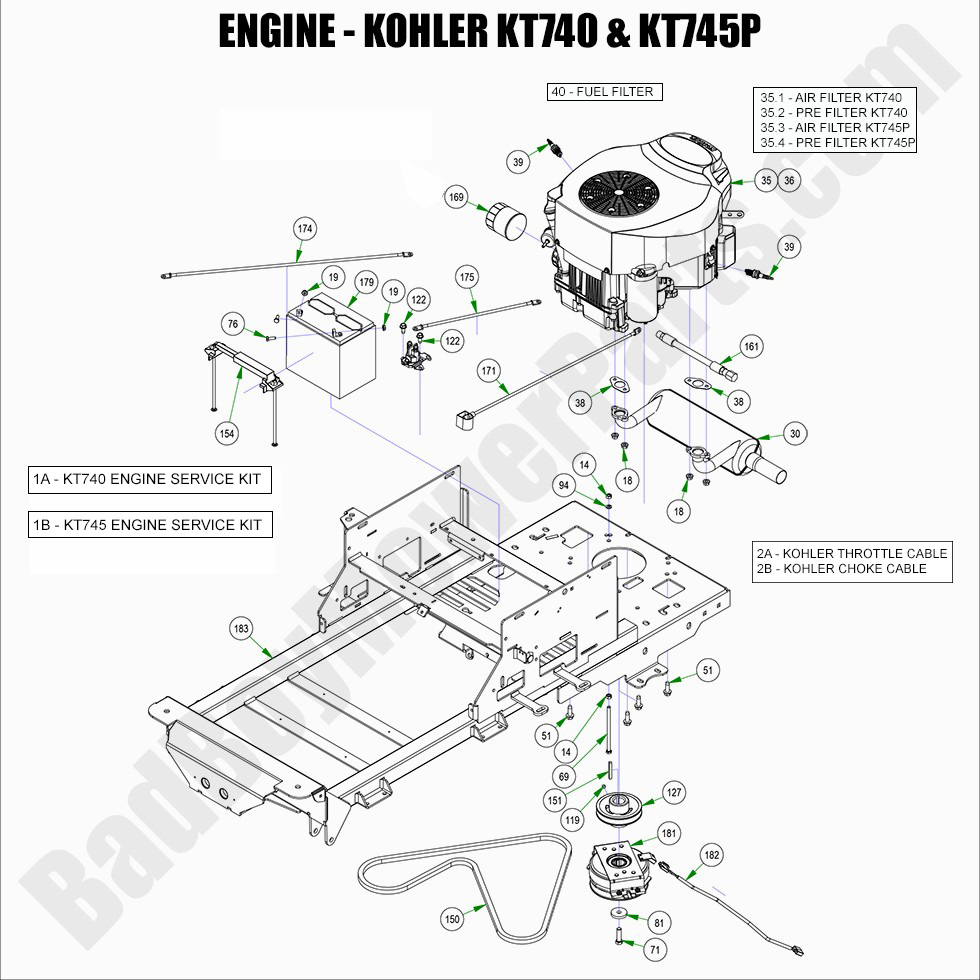

2022 ZT Elite - Engine - Kohler KT740 & KT745P

2022 ZT Elite - Engine - Kohler KT740 & KT745P

The 2022 ZT Elite Engine - Kohler KT740 & KT745P is a reliable, durable engine option that ensures excellent power and efficiency for your mower. BadBoyMowerParts.com offers a full selection of Bad Boy Mower Parts designed for these specific Kohler engine models. From air filters to oil pumps, we provide all the Bad Boy Lawn Mower Parts you need to keep your engine running smoothly. Our Bad Boy Mower Part diagrams help you easily identify the exact part needed for repairs or maintenance. When you shop Bad Boy Parts Online, you can trust that you're getting high-quality parts designed for your Kohler engine. Additionally, take advantage of Free Shipping On Orders Over $100 to make your parts purchases even more affordable. Keep your 2022 ZT Elite Engine - Kohler KT740 & KT745P running at optimal performance with the best parts available.

Bad Boy Mower Parts Lookup

2022 ZT Elite - Engine - Kohler KT740 & KT745P
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47
1B 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
14 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
30 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
35.1 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$34.23
35.2 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$9.89
35.3 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
35.4 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
35 015-2020-00 015-2020-00 - 25hp Kohler-48" 2014-2022 ZT KT740-3030 (obsolete)
use part #015-2018-00
$2399.99
36 015-2026-00 015-2026-00 - 26hp Kohler-2018-2022 ZT-KT745-3088 (obsolete)
use part #015-2018-00
$2399.99
38 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
39 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
40 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
51 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
69 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
71 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
76 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
81 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
94 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
119 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
122 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
127 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
150 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
151 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
154 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
161 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
169 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
171 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
174 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
175 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
181 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
182 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
183 070-5423-00 070-5423-00 - 2022 Suspension ZT Frame--Painted
$659.99
