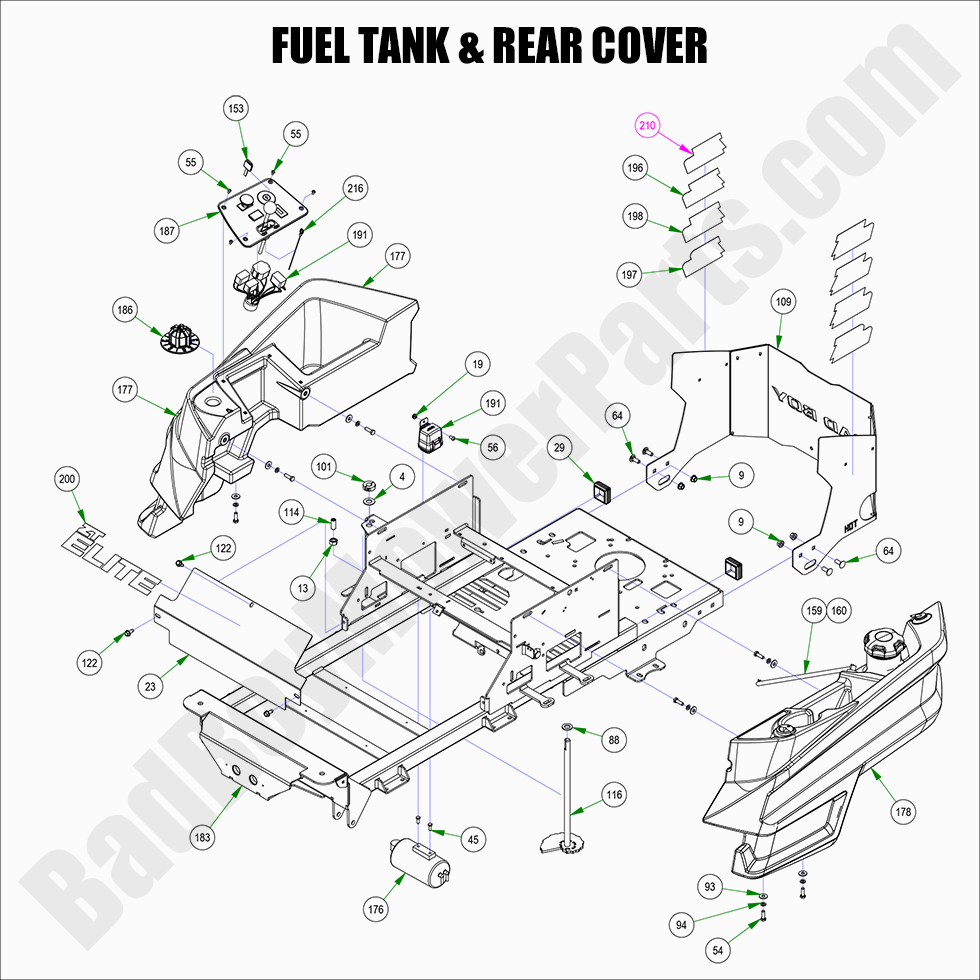

2022 ZT Elite - Fuel Tank & Rear Covers

2022 ZT Elite - Fuel Tank & Rear Covers

The 2022 ZT Elite Fuel Tank & Rear Covers are vital for the safe and efficient operation of your mower. If you need to replace or repair these components, BadBoyMowerParts.com offers a wide variety of Bad Boy Mower Parts that fit your 2022 ZT Elite model. From fuel tanks to rear covers, we have all the necessary Bad Boy Lawn Mower Parts to keep your mower functioning at its best. Our Bad Boy Mower Part diagrams help you quickly locate the parts you need to complete the repairs. Shopping Bad Boy Parts Online is convenient, and we provide a fast and secure checkout process. Plus, with Free Shipping On Orders Over $100, your order will arrive quickly without extra cost. Whether you’re replacing a worn fuel tank or rear cover, trust BadBoyMowerParts.com to provide the parts that ensure your mower stays in top working condition.

Bad Boy Mower Parts Lookup

2022 ZT Elite - Fuel Tank & Rear Covers
  Position Number SKU Product Title Price
4 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
9 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

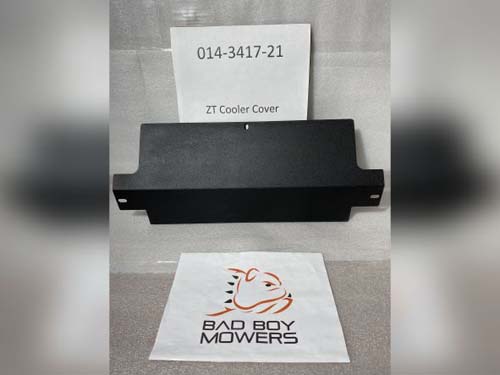

23 014-3417-21 014-3417-21 - 2021-2022 ZT Cooler Cover Black (obsolete)
use part #014-3320-23
$74.89
29 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
45 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
54 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
55 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
56 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
64 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
88 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
93 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
94 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
101 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
109 026-0225-00 026-0225-00 - 2022-2025 ZT Elite Rear Plate Assembly
$172.99
114 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
116 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
122 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
153 042-9000-00 042-9000-00 - Ignition Key
$4.06
159 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
160 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
176 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
177 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
178 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
183 070-5423-00 070-5423-00 - 2022 Suspension ZT Frame--Painted
$659.99
186 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39

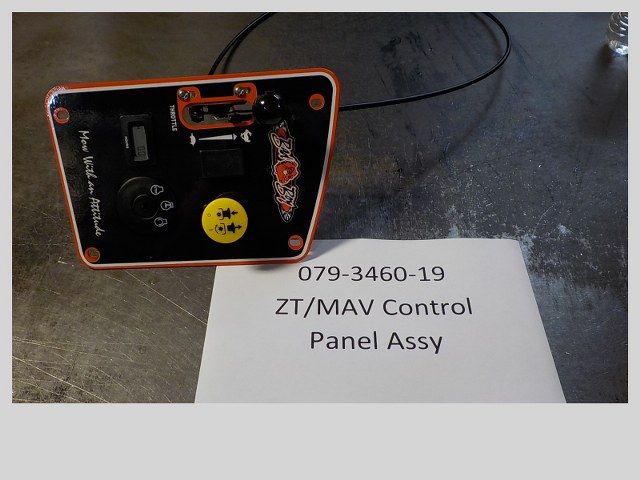

187 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
191 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
196 091-0315-21 091-0315-21 - 2021 - 2022 ZT Elite 747cc Back Plate Cluster
$13.90
197 091-0316-21 091-0316-21 - 2021 ZT Elite 726cc Back Plate Cluster
$14.97
198 091-0317-21 091-0317-21 - 2021 - 2022 ZT Elite 725cc Back Plate Cluster
$11.76
200 091-0389-00 091-0389-00 - 2017-2022 ZT Elite Cooler Cover Decal
$14.97
216 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
