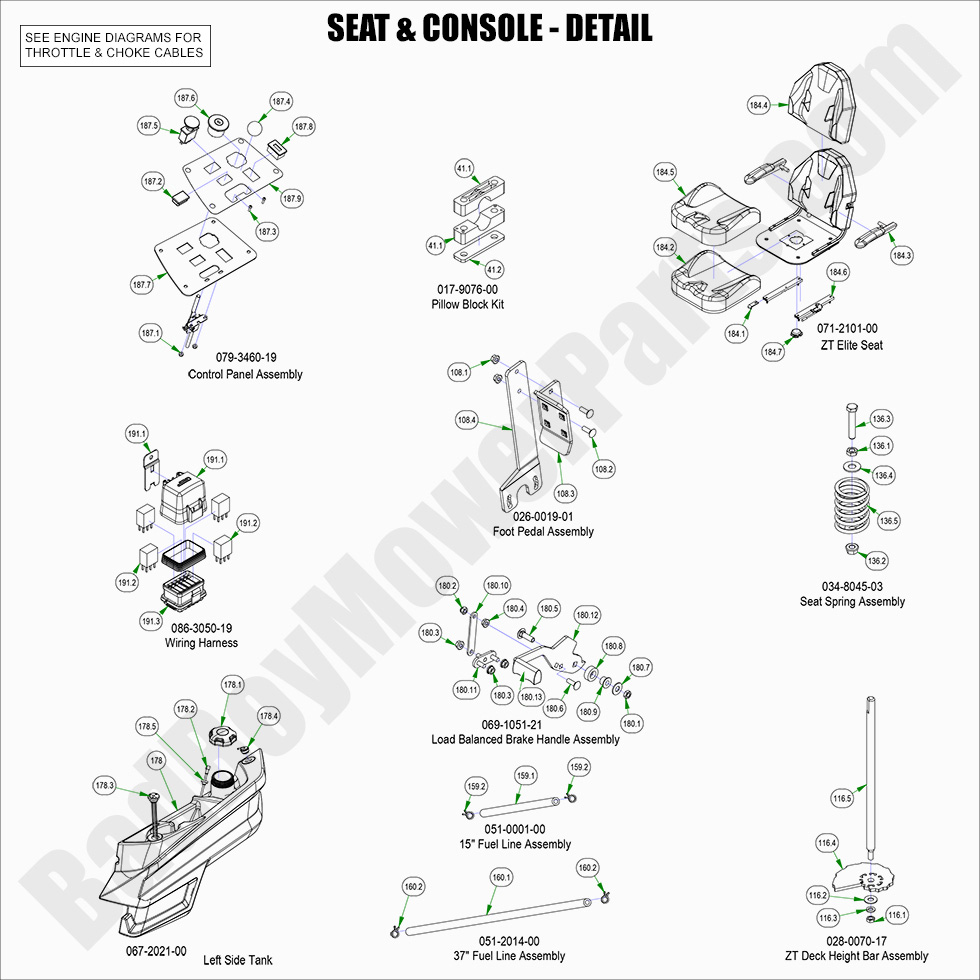

2022 ZT Elite - Fuel Tank, Seat & Console Detail

2022 ZT Elite - Fuel Tank, Seat & Console Detail

The 2022 ZT Elite Fuel Tank, Seat & Console Detail is essential for both the functionality and comfort of your mower. If you're looking for parts for these components, BadBoyMowerParts.com provides an extensive selection of Bad Boy Mower Parts designed specifically for the 2022 ZT Elite. From fuel tanks to seating and console parts, we offer a variety of Bad Boy Lawn Mower Parts that ensure your mower runs smoothly. Our Bad Boy Mower Part diagrams simplify the process of finding the exact parts you need. Whether you're replacing a damaged fuel tank or upgrading the seat, we have all the parts you need for your mower. Shopping Bad Boy Parts Online means you can order with ease and confidence. Plus, with Free Shipping On Orders Over $100, you’ll save money on delivery. Keep your 2022 ZT Elite Fuel Tank, Seat & Console Detail in top shape with quality parts.

Bad Boy Mower Parts Lookup

2022 ZT Elite - Fuel Tank, Seat & Console Detail
  Position Number SKU Product Title Price
41.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
41.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
41 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
108.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
108.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
108.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
108.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
108 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
116.1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
116.2 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
116.3 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
116.4 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
116.5 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
116 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
136.1 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
136.2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
136.3 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
136.5 034-8045-00 034-8045-00 - Seat Spring
$20.49
136 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
159.1 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
159.2 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
159 051-0001-00 051-0001-00 - Fuel Line-15" (See Models Used On For Details)
$40.53
160.1 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
160 051-2014-00 051-2014-00 - 37" Fuel Line Assembly (See Models Used On For Details)
$40.53
178.1 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
178.2 067-0011-00 067-0011-00 - Fuel Line Pickup Tube
$23.41
178.3 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
178.4 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
178.5 067-6080-00 067-6080-00 - Grommet for ZT Elite Fuel Line Pickup Tube
$8.01
178 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
180.1 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
180.2 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
180.4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
180.5 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
180.8 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
180.9 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
180.10 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
180.11 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
180.12 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
180.13 069-3010-00 069-3010-00 - Brake Handle Rubber
$18.45
184.1 039-2157-00 039-2157-00 - Black Seat stop
$14.19
184.3 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
184.4 071-2101-02 071-2101-02 - Back Cover for 071-2101-00
$96.29
184.5 071-2102-00 071-2102-00 - 2021 Maverick, 2022 ZT Elite Seat
$692.99
184.6 071-5015-00 071-5015-00 - Seat Rails
$93.69
184.7 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
184 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$625.99
187.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
187.2 018-1040-00 018-1040-00 - Light Plug
$2.99
187.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
187.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
187.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
187.7 079-3460-00 079-3460-00 - Control Panel (See Models Used On For Details)
$23.53
187.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
187.9 091-0338-22 091-0338-22 - Control Panel Decal (See Models Used On For Details)
$17.11
187 079-3460-19 079-3460-19 - 2019-2022 ZT/Maverick Control Panel Assy, Also Fits 2019-2021 Compact Outlaw, and 2022 MZ/MZ Magnum
$144.63
191.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
191.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
191.3 086-3050-00 086-3050-00 - Wiring Harness- ZT 2007 and Up (obsolete)
use part #086-3050-17
$299.99
191 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
