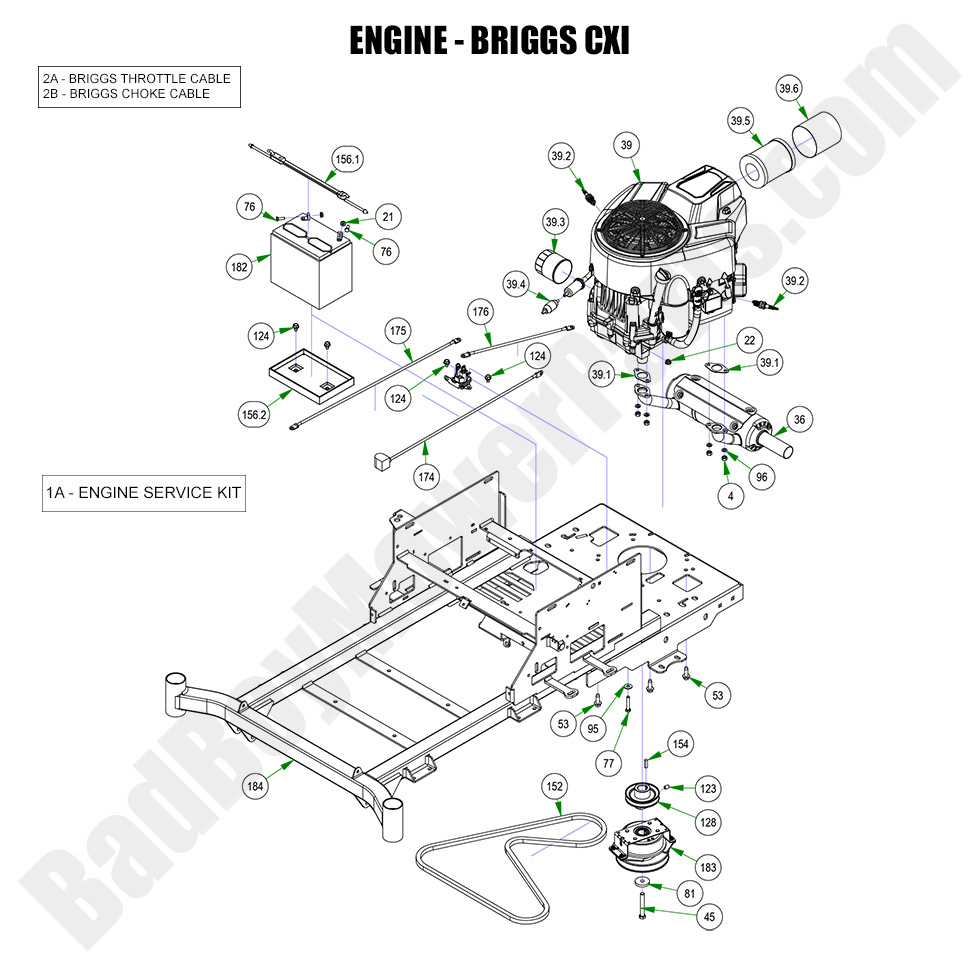

2023 MZ Magnum - Engine - Briggs CXI

2023 MZ Magnum - Engine - Briggs CXI

Experience the power of the 2023 MZ Magnum Engine - Briggs CXI, engineered for high performance and exceptional efficiency. This Briggs CXI engine is renowned for its reliability, making it an ideal choice for demanding mowing tasks and challenging terrains. Comprehensive technical guides, including visual schematics, are available at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, assisting with precise installation and troubleshooting. Order genuine Bad Boy Mower Parts and authentic Bad Boy Lawn Mower Parts from our Bad Boy Parts Online store to ensure peak engine performance. Benefit from Free Shipping On Orders Over $100 when upgrading your engine components, which further enhances value and convenience. Meticulously built with robust materials, the Briggs CXI delivers consistent power, fuel efficiency, and durability under continuous use. This engine stands as a testament to modern innovation, offering performance for both residential and commercial applications, and ensuring your mower is reliable in all conditions.

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
4 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
36 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
39.1 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
39.2 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
39.3 063-8018-00 063-8018-00 - Oil Filter
$21.39
39.4 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
39.5 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$44.93
39.6 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
39 015-0510-00 015-0510-00 - Vanguard 25hp CXI with out Oil Filter
$2599.99
45 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
53 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
76 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
77 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
81 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
123 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
124 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
128 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
152 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
154 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
156.1 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
156.2 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
174 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
175 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
176 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
183 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
