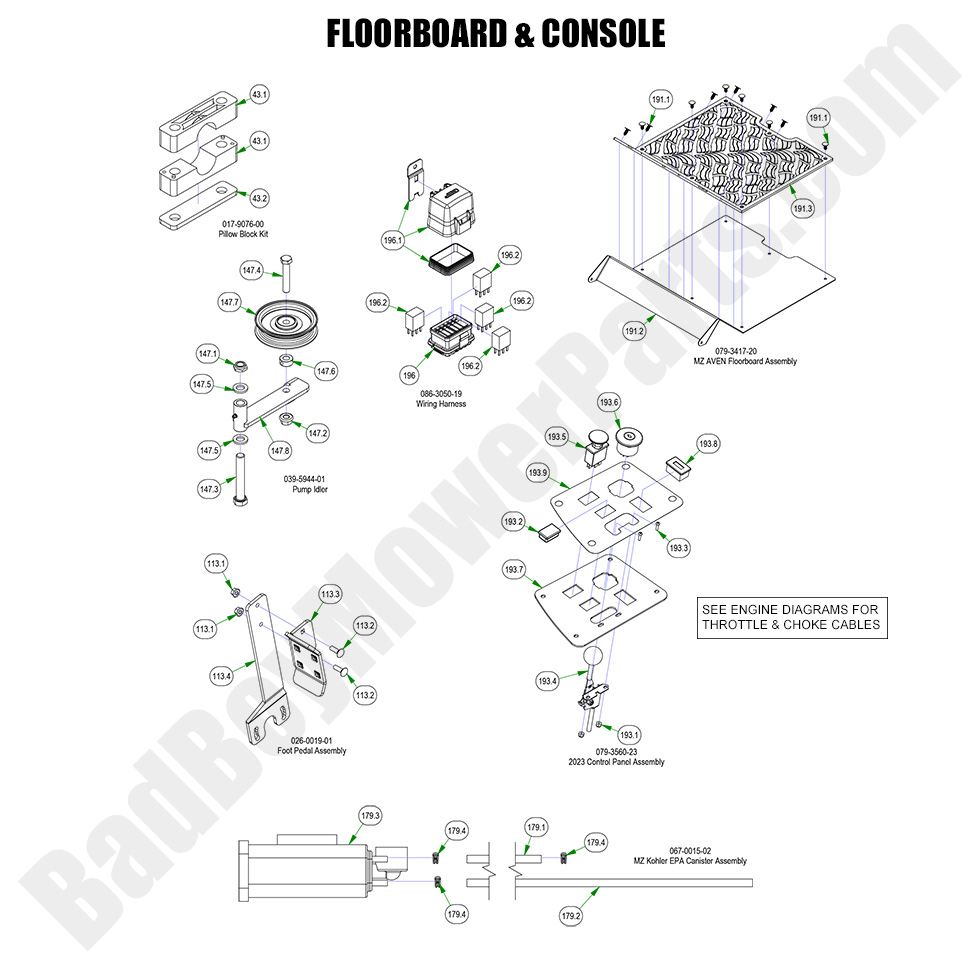

2023 MZ Magnum - Floorboard & Console - Detail

2023 MZ Magnum - Floorboard & Console - Detail

Inspect the 2023 MZ Magnum Floorboard & Console - Detail to appreciate the refined design and ergonomic functionality integrated into your mower. This detailed view highlights the intricate craftsmanship and quality materials that form the foundation of a comfortable, efficient control system. Clear illustrations and assembly diagrams are provided at Bad Boy Mower Part diagrams on BadBoyMowerParts.com to assist with repairs and upgrades. Complement your setup with genuine Bad Boy Mower Parts and authentic Bad Boy Lawn Mower Parts, easily ordered through Bad Boy Parts Online. Benefit from Free Shipping On Orders Over $100 to secure these essential components affordably. The floorboard and console are engineered to withstand constant use, ensuring durability and user-friendly operation. Ideal for enhancing both functionality and aesthetics, this detail reflects modern innovation and superior design standards, making every mowing experience more enjoyable and efficient for operators. Experience unmatched comfort and performance every single day now

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Floorboard & Console - Detail
  Position Number SKU Product Title Price
43.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
43.1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
43.2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
113.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
113.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
113.2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
113.3 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
113.4 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
147.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
147.1 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
147.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
147.3 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
147.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
147.5 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
147.6 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
147.7 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
147.8 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
179.0 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
179.1 051-2023-02 051-2023-02 - 44" x 3/16" Black Hose
$12.48
179.2 051-2027-02 051-2027-02 - 52" x 3/16" clear hose
$7.25
179.3 067-0015-00 067-0015-00 - Carbon Canister RY320CC
$46.78
179.4 072-0002-00 072-0002-00 - 5.5 mm Vinyl Hose Clamp
$2.99
191.1 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
191.2 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
191.3 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
193.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
193.2 018-1040-00 018-1040-00 - Light Plug
$2.99
193.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
193.5 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
193.6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
193.7 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
193.8 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
193.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
196.0 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
196.1 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
196.2 086-1202-19 086-1202-19 - Relay Terminal
$24.97
