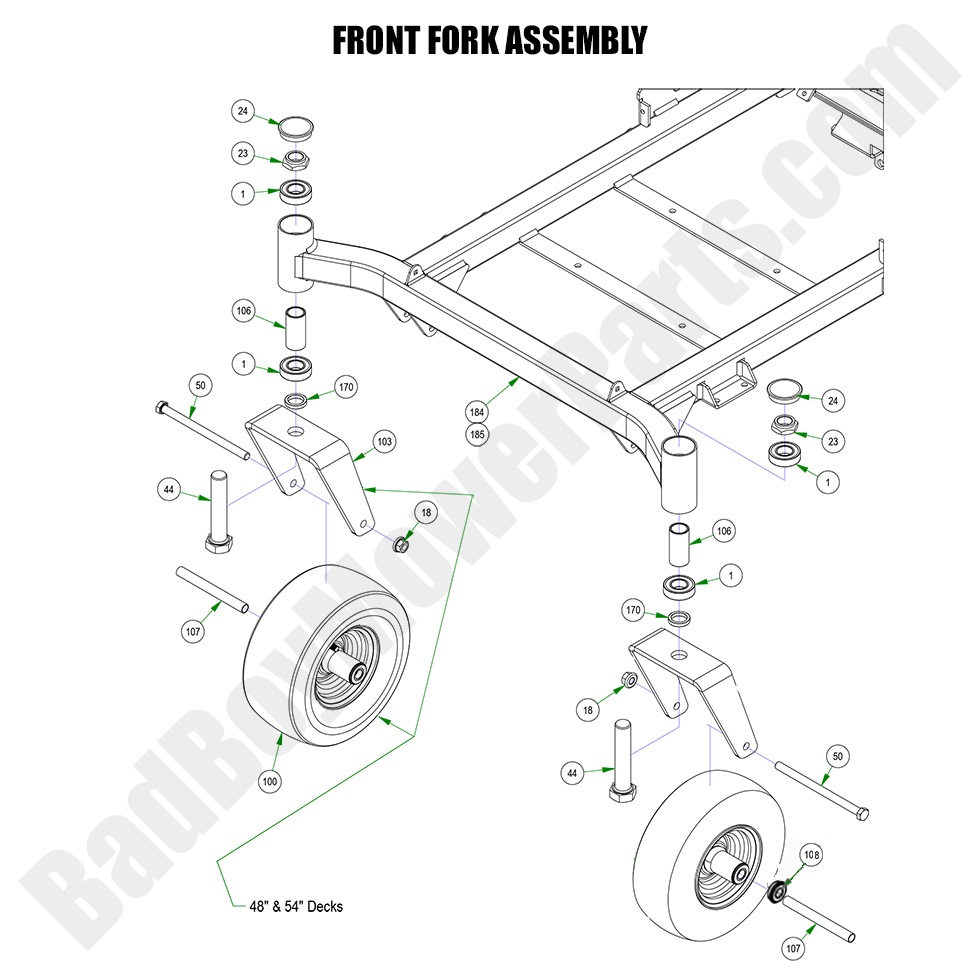

2023 MZ Magnum - Front Fork Assembly

2023 MZ Magnum - Front Fork Assembly

Strengthen your mower's steering and stability with the 2023 MZ Magnum Front Fork Assembly, engineered for precise alignment and dependable support. This assembly is crafted to offer optimal balance and durability, ensuring smooth handling even on uneven terrain. Detailed construction diagrams are available at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, which guide technicians through correct installation and maintenance. Enhance performance by selecting original Bad Boy Mower Parts and authentic Bad Boy Lawn Mower Parts, accessible through our Bad Boy Parts Online store. Enjoy Free Shipping On Orders Over $100 when investing in this key component, reducing downtime and improving efficiency. Designed with robust materials and superior craftsmanship, the front fork assembly delivers exceptional stability and control, contributing to a safe and efficient mowing experience. It is ideal for both routine upgrades and complete system overhauls, meeting the rigorous demands of modern lawn care operations. Performance and safety always deliver.

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
24 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
44 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
50 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt
$4.83
100 022-8049-22 022-8049-22 - 11x6.00-5 Front Assembly - Black Wheel
$99.39
103 023-0002-00 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork
$31.23
106 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
107 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
108 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
170 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
