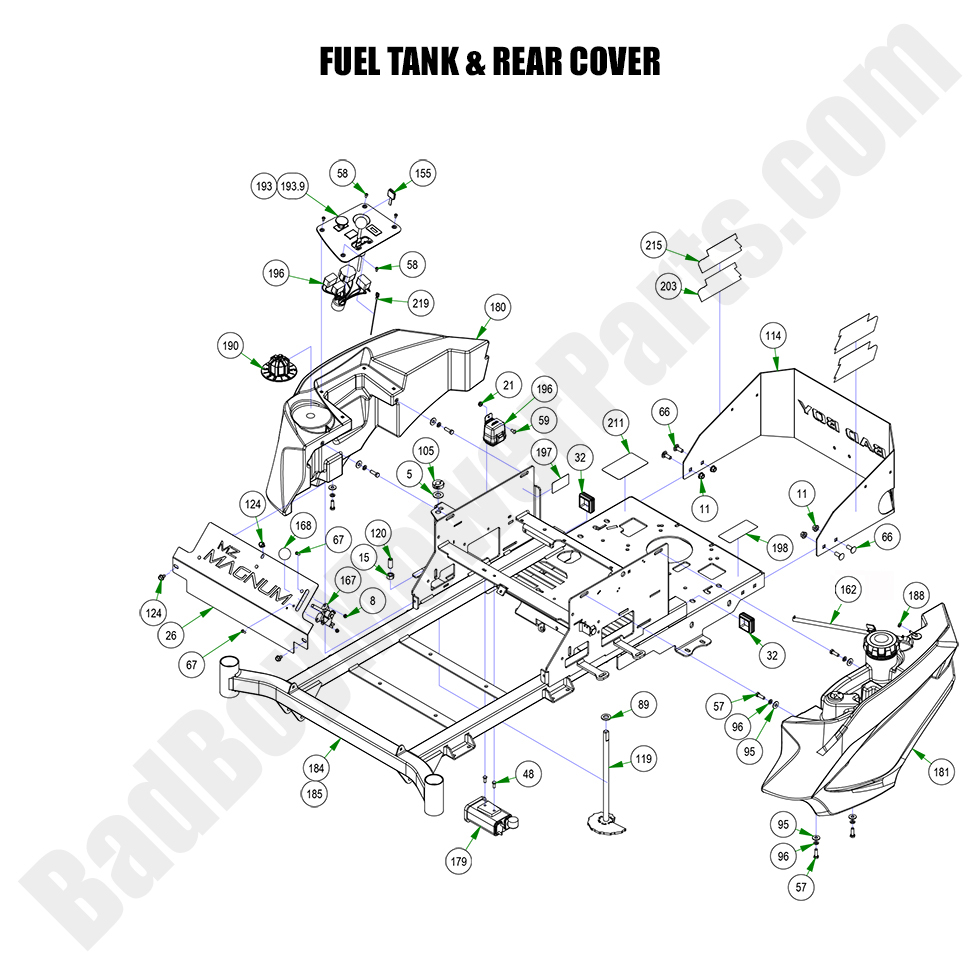

2023 MZ Magnum - Fuel Tank & Rear Cover

2023 MZ Magnum - Fuel Tank & Rear Cover

Secure the functionality and aesthetic appeal of your mower with the 2023 MZ Magnum Fuel Tank & Rear Cover, designed for durability and efficient performance. This component protects critical engine parts while adding a sleek, modern finish to your machine. Detailed assembly views and diagrams are accessible at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, offering clear guidance for installation and maintenance. Complement your mower with genuine Bad Boy Mower Parts and original Bad Boy Lawn Mower Parts, conveniently available via Bad Boy Parts Online. Enjoy Free Shipping On Orders Over $100 for cost-effective purchasing. Constructed from high-quality materials and rigorously tested, the fuel tank and rear cover are engineered to resist corrosion and impact damage, ensuring long-lasting service. Ideal for both repairs and upgrades, this component contributes to improved safety, performance, and overall machine longevity, making it an essential addition for serious lawn care enthusiasts. Quality matters for durability.

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
5 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
21 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
26 014-3318-23 014-3318-23 - 2023 Magnum Cooler Cover Assembly
$74.89
32 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
48 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
57 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
58 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
59 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
67 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
89 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
95 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
96 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
105 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
114 026-0223-00 026-0223-00 2022-2024 MZ Rear Plate
$90.99
119 028-0007-17 028-0007-17 - 2018-2022 MZ Magnum Deck Height Rod Assy.
$28.88
120 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
124 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
155 042-9000-00 042-9000-00 - Ignition Key
$4.06
167 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
168 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
179 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
180 067-2080-50 067-2080-50 - Right Side Console (See Models Used On For Details)
$228.99
181 067-2090-50 067-2090-50 - Left Side Fuel Tank 2017-2024 MZ & MZ Magnum
$248.99
188 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
190 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
193.9 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
196 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (obsolete)
use part #086-3600-00
$299.99
197 091-0009-00 091-0009-00 - ANSI Decal
$2.99
198 091-0015-23 091-0015-23 - 2023 EPA Build Date Punch Decal
$2.99
203 091-0318-18 091-0318-18 - 2018-2022 Magnum 725cc Decal
$14.97
211 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
215 091-7313-00 091-7313-00 - 724cc Back Plate Cluster No Longer Available
Obsolete.
219 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
