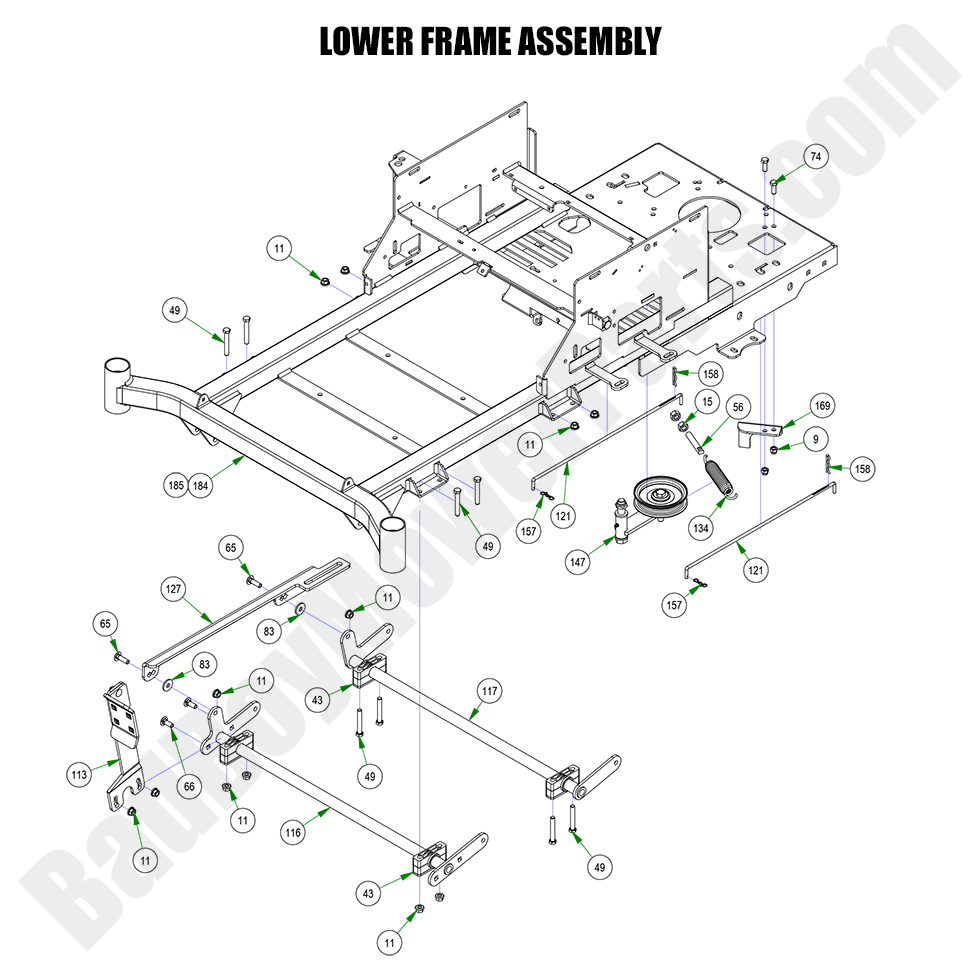

2023 MZ Magnum - Lower Frame Assembly

2023 MZ Magnum - Lower Frame Assembly

Reinforce your mower’s structural integrity with the 2023 MZ Magnum Lower Frame Assembly, engineered for strength and precise alignment. This assembly forms the critical backbone of your machine, ensuring stability and optimal performance during demanding mowing tasks. Detailed component layouts and assembly diagrams are provided at Bad Boy Mower Part diagrams on BadBoyMowerParts.com, offering step-by-step guidance for installation. Order genuine Bad Boy Mower Parts and authentic Bad Boy Lawn Mower Parts through our reliable Bad Boy Parts Online platform, guaranteeing compatibility and quality. Enjoy Free Shipping On Orders Over $100 when you invest in this essential frame assembly. Constructed from durable materials and tested for resilience, the lower frame assembly supports heavy use and resists wear and tear. Ideal for both new installations and replacements, it enhances overall machine performance while ensuring safety and longevity in diverse operating conditions, making it a must-have for dedicated lawn care professionals. Quality assured.

Bad Boy Mower Parts Lookup

2023 MZ Magnum - Lower Frame Assembly
  Position Number SKU Product Title Price
9 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
15 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
43 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
49 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
56 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
65 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
66 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
74 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
83 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
113 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
116 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
117 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
121 028-0070-00 028-0070-00 - Neutral Rod
$12.48
127 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
134 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
147 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
157 044-2004-00 044-2004-00 - Bow Pin
$2.99
158 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
169 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
